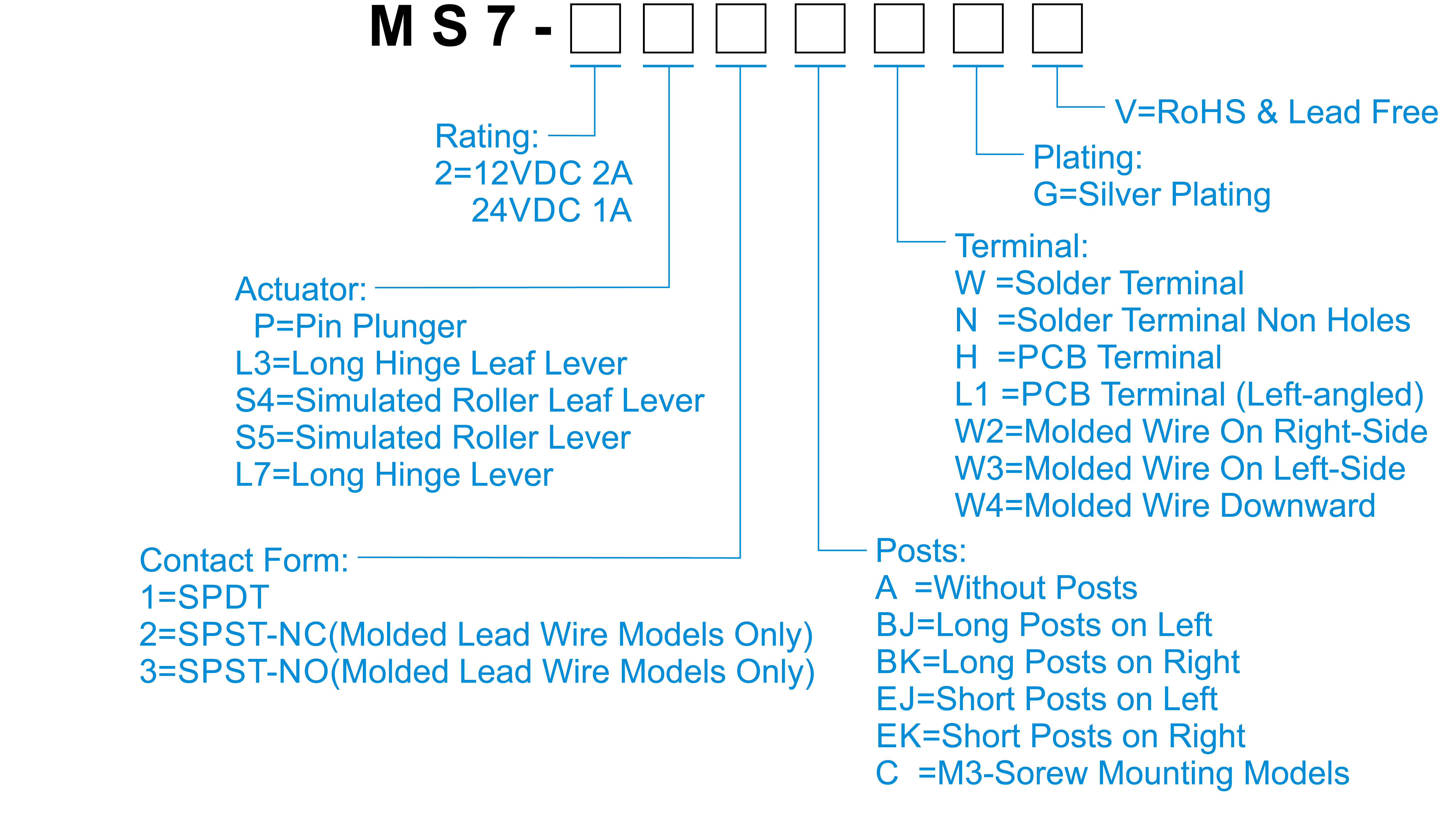

How to Order
Specification
| Contact Rating | 2A at 12VDC/1A at 24VDC |
|---|---|
| Mechanical Durability | 1,000,000 cycles Min. |
| Electrical Durability | 100,000 cycles Min. |
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. (at 500VDC) |
| Dielectric Strength 1 | 1.Between terminals of the same polarity: 600 V AC(50Hz or 60Hz) shall be applied across terminals for 1 minute |
| Dielectric Strength 2 | 2.Between each terminal and ground: 1500 V AC(50Hz or 60Hz) shall be applied across terminals for 1 minute |
| Dielectric Strength 3 | 3.Between each terminal and n-current-carrying metal parts: 1500 V AC(50Hz or 60Hz) shall be applied across terminals for 1 minute |
| Operating Temp. | -40°C~+85°C |
| 料號 | Contact Form | Terminal | ||
| MS7-2P1□WGV | SPDT | Solder Terminal | 75 | 6.4、10.4 |
| MS7-2P1□NGV | SPDT | Solder Terminal Non Holes | 75 | 6.4、10.4 |
| MS7-2P1□HGV | SPDT | PCB Terminal | 75 | 6.4、10.4 |
| MS7-2P1□L1GV | SPDT | PCB Terminal (Left-angled) | 75 | 6.4、10.4 |
| MS7-2P2□W2GV | SPST | Molded Wire On Right-Side | 75 | 6.4、10.4 |
| MS7-2P2□W3GV | SPST | Molded Wire On Left-Side | 75 | 6.4、10.4 |
| MS7-2P3□W2GV | SPST | Molded Wire On Right-Side | 75 | 6.4、10.4 |
| MS7-2P3□W3GV | SPST | Molded Wire On Left-Side | 75 | 6.4、10.4 |
| MS7-2P1□W4GV | SPDT | Molded Wire Downward | 75 | 6.4、10.4 |
| MS7-2L31□WGV | SPDT | Solder Terminal | 122 | 8.1、12.1 |
