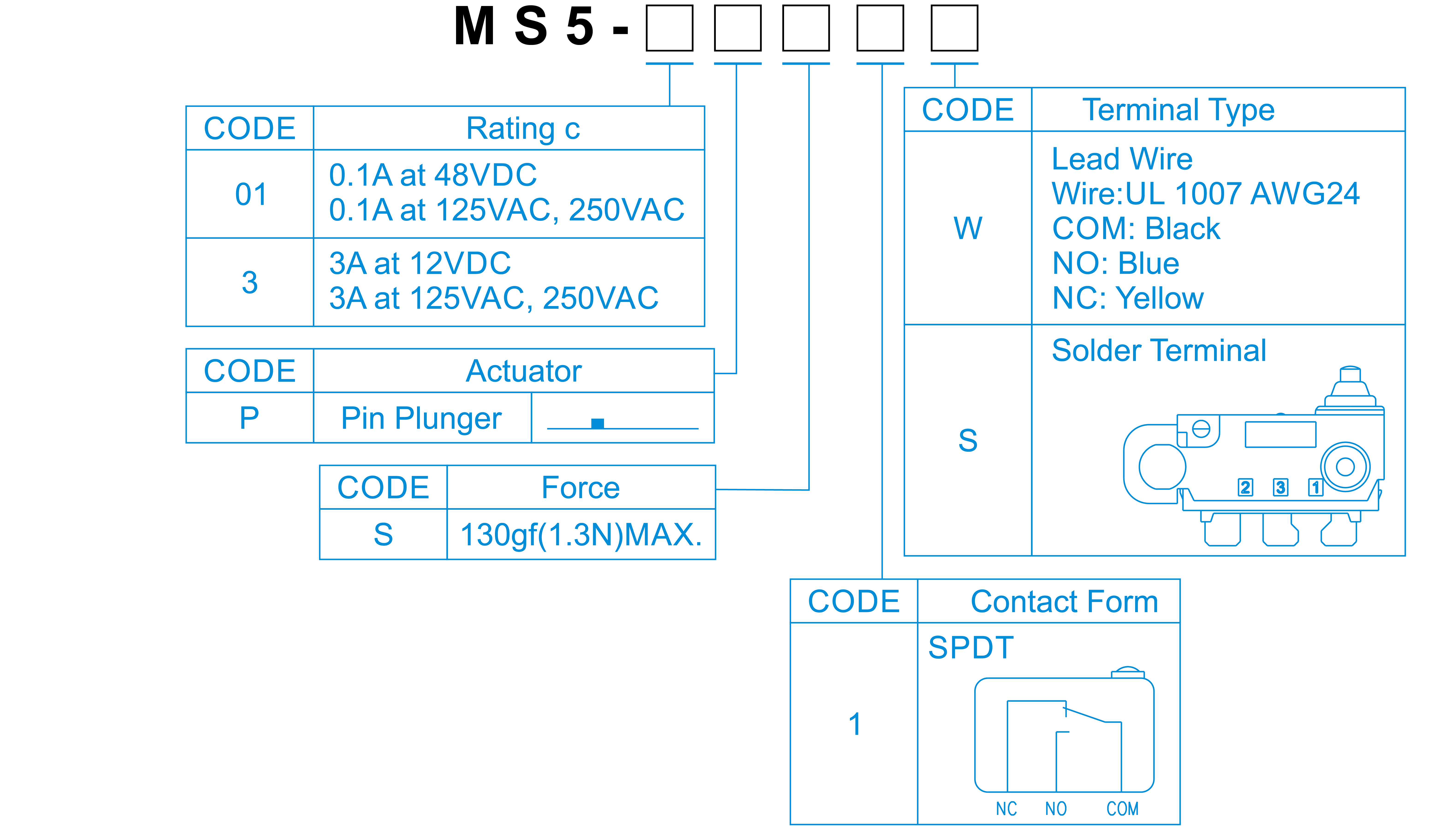

How to Order
Specification
| Contact Rating 1 | 0.1A at 48VDC 0.1A at 125VAC, 250VAC |
|---|---|
| Contact Rating 2 | 3A at 12VDC 3A at 125VAC, 250VAC |
| Mechanical Durability | 500,000 cycles Min. |
| Electrical Durability | 100,000 cycles Min. |
| Contact Resistance | 150 mΩ Max. |
| Insulation Resistance | 100MΩ Min. (at 500VDC) |
| Dielectric Strength 1 | 1.Between terminals of the same polarity: |
| Dielectric Strength 2 | Between terminals of the same polarity: 600 VAC(50 /60Hz) shall be applied across terminals for 1 minute |
| Dielectric Strength 3 | Between each terminal and ground: 1500 VAC(50/ 60Hz) shall be applied across terminals for 1 minute |
| Dielectric Strength 4 | Between each terminal and non-current-carrying metal parts: 1500 VAC(50/60Hz) shall be applied across terminals for 1 minute |
| Operating Temp. | -40°C~+85°C |
| 料號 | Contact Form | Terminal | ||
| MS5-01PS1W | SPDT | Terminal Type / Lead Wire / Wire:UL 1007 AWG24 / COM: Black / NO: Blue / NC: Yellow | 130 | 6.40~6.95 |
| MS5-01PS1S | SPDT | Solder Terminal | 130 | 6.40~6.95 |
| MS5-3PS1W | SPDT | Terminal Type / Lead Wire / Wire:UL 1007 AWG24 / COM: Black / NO: Blue / NC: Yellow | 130 | 6.40~6.95 |
| MS5-3PS1S | SPDT | Solder Terminal | 130 | 6.40~6.95 |
