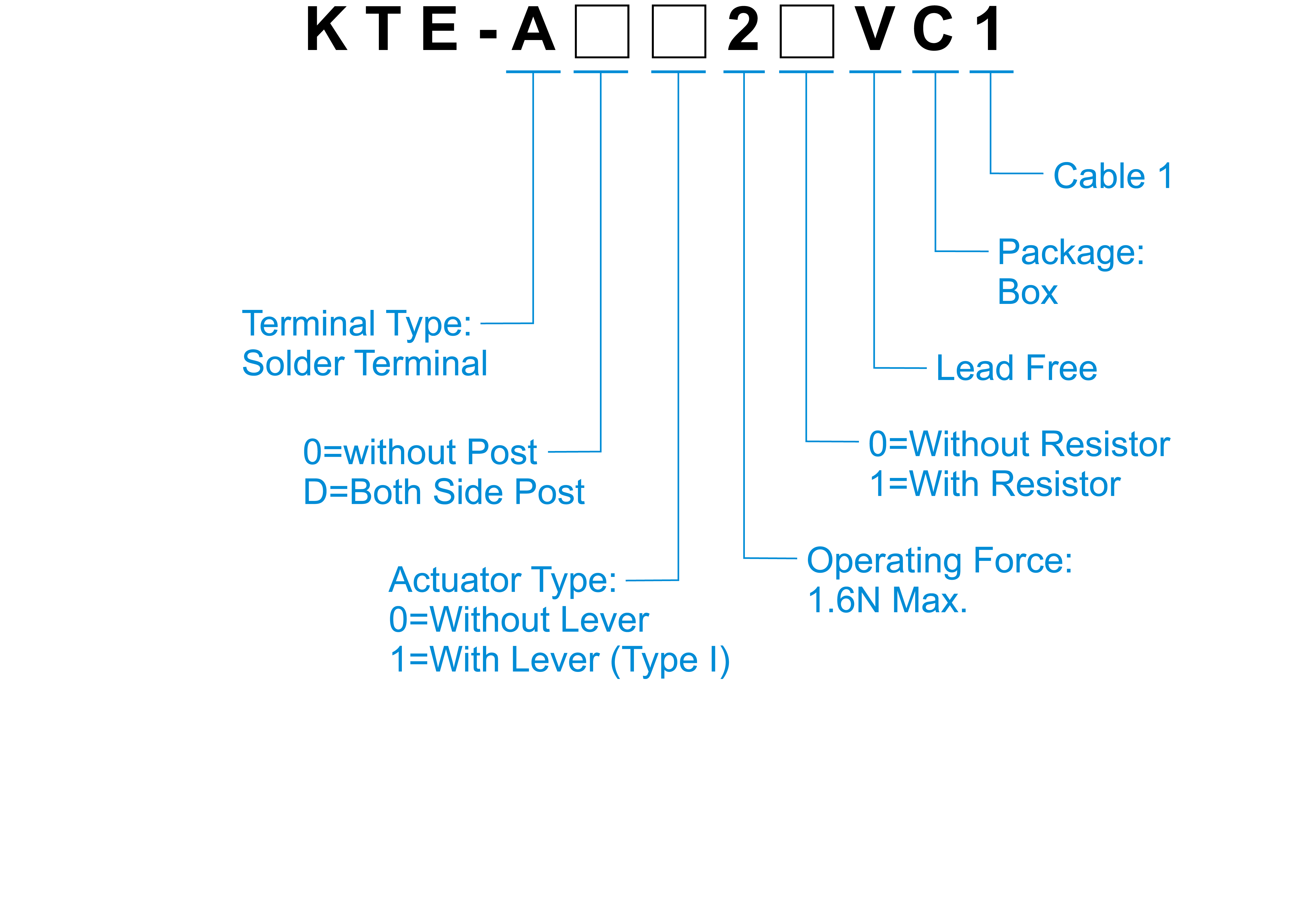

How to Order
Specification
| Contact Rating | 1mA~100mA, ≦25V DC |
|---|---|
| Contact Resistance | free position(680Ω+1.5%) 8.3mm~9.15mm (3380Ω+1.5%) 6.85mm~8.0mm (≦500mΩ) |
| Insulation Resistance | 10MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | Actuating Force ≦ 160gf |
| Operating Position | 6.85~8.0mm / 8.3~9.15mm |
| Operating Life | 200,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | Terminal | OP_1(mm) | OP_2(mm) | Dustproof and Waterproof | |
| KTE-A□□2□VC1 | 1P2T | 帶線(側露出) | 160 | 6.85~8.0 | 8.3~9.15 | - |
