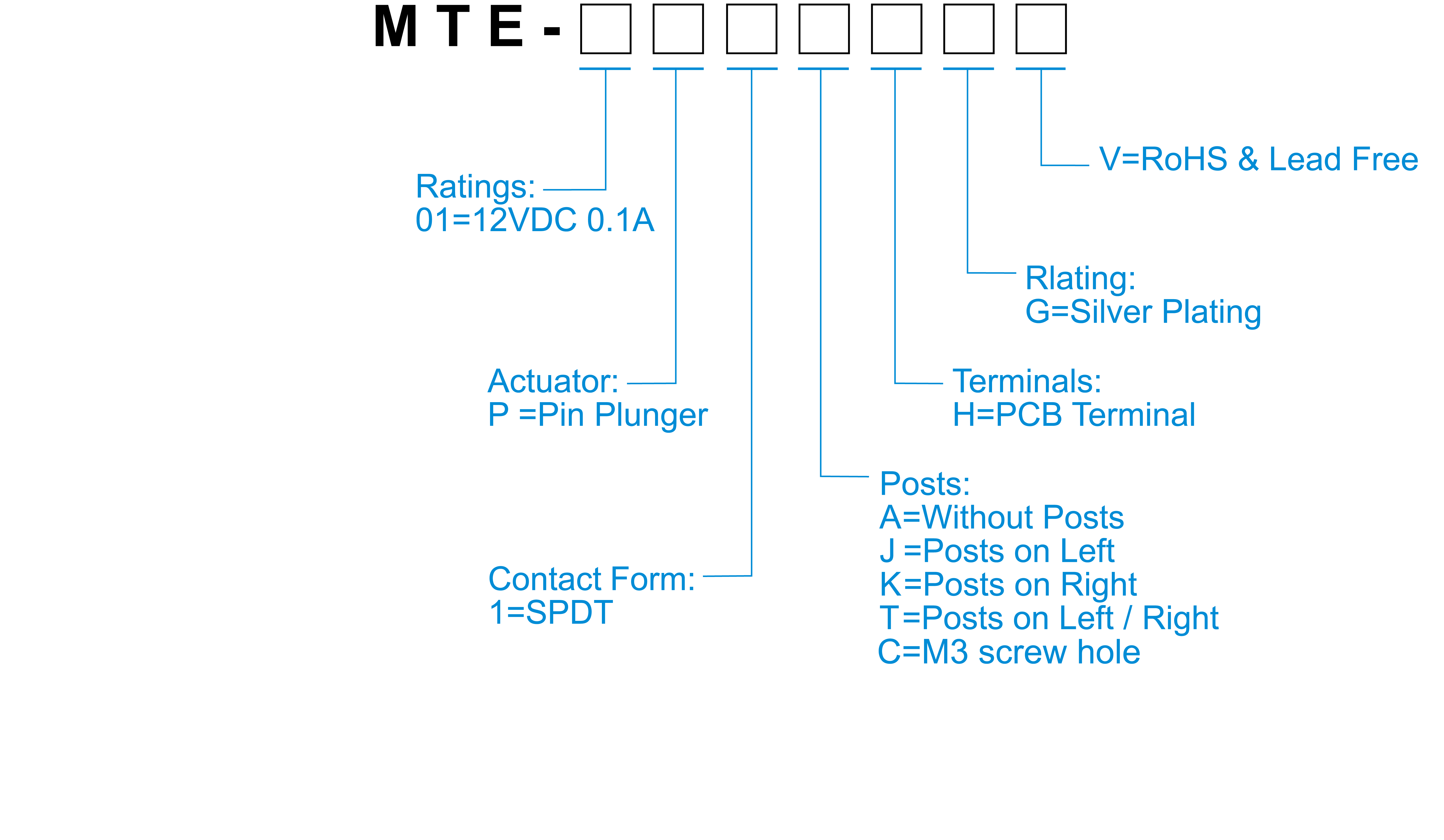

How to Order
Specification
| Contact Rating | 50µA, 5V DC Min. 100mA, 12V DC Max. |
|---|---|
| Contact Resistance | 500mΩ Max. (initial) |
| Insulation Resistance | 100MΩ Min. |
| Dielectric Strength | 500V AC / 1 minute |
| Operating Force | P1 : 100±50gf L31 : 300gf Max. |
| Operating Position | 6.5/6.8 mm |
| Operating Life | 300,000 cycles Min. |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | Terminal | OP_1(mm) | OP_2(mm) | Dustproof and Waterproof | |
| MTE-01P1□HGV | 1P2T | For PC board | 100 | 6.5 | 6.8 | ● |
| MTE-01L31□HGV | 1P2T | For PC board | 300 | 6.5 | 6.8 | ● |
