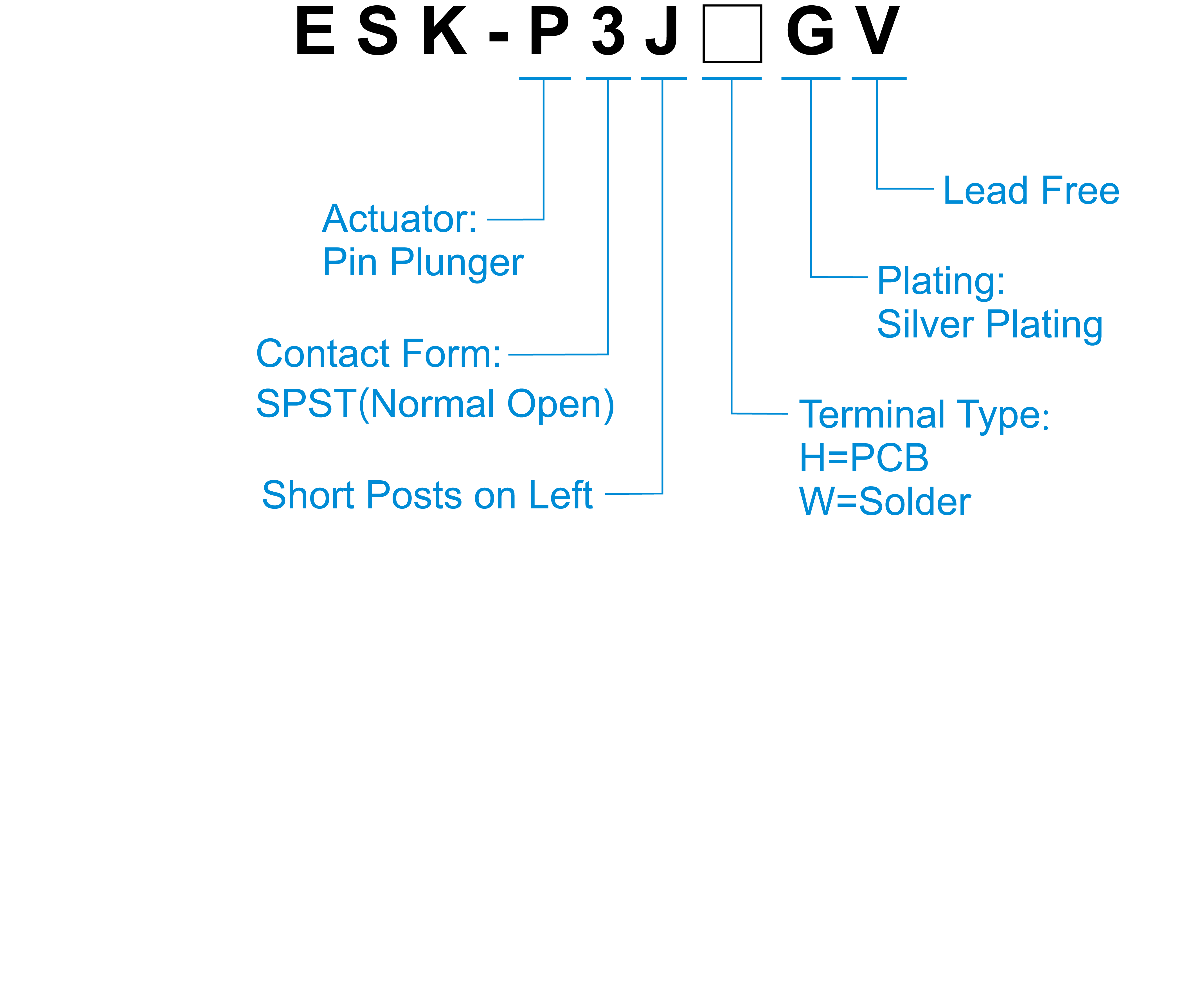

How to Order
Specification
Contact Rating | 1mA, 5V DC Min. 50mA, 16V DC Max. |
---|---|
Contact Resistance | 500mΩ Max. (initial) |
Insulation Resistance | 100MΩ Min. |
Dielectric Strength | 500V AC / 1 minute |
Operating Force | 160gf Max. |
Operating Position | 7.1mm |
Operating Life | 50mA, 16V DC 150,000 cycles Min. 50mA, 12V DC 200,000 cycles Min. |
Operating Temp. | -40°C~+85°C |
Storage Temp. | -40°C~+85°C |
料號 | Operating Direction | Terminal | OP_1(mm) | OP_2(mm) | Dustproof and Waterproof | |
ESK-P3JHGV | 1P1T | For PC board | 160 | 7.1 | - | ● |
ESK-P3JWGV | 1P1T | For Lead | 160 | 7.1 | - | ● |
