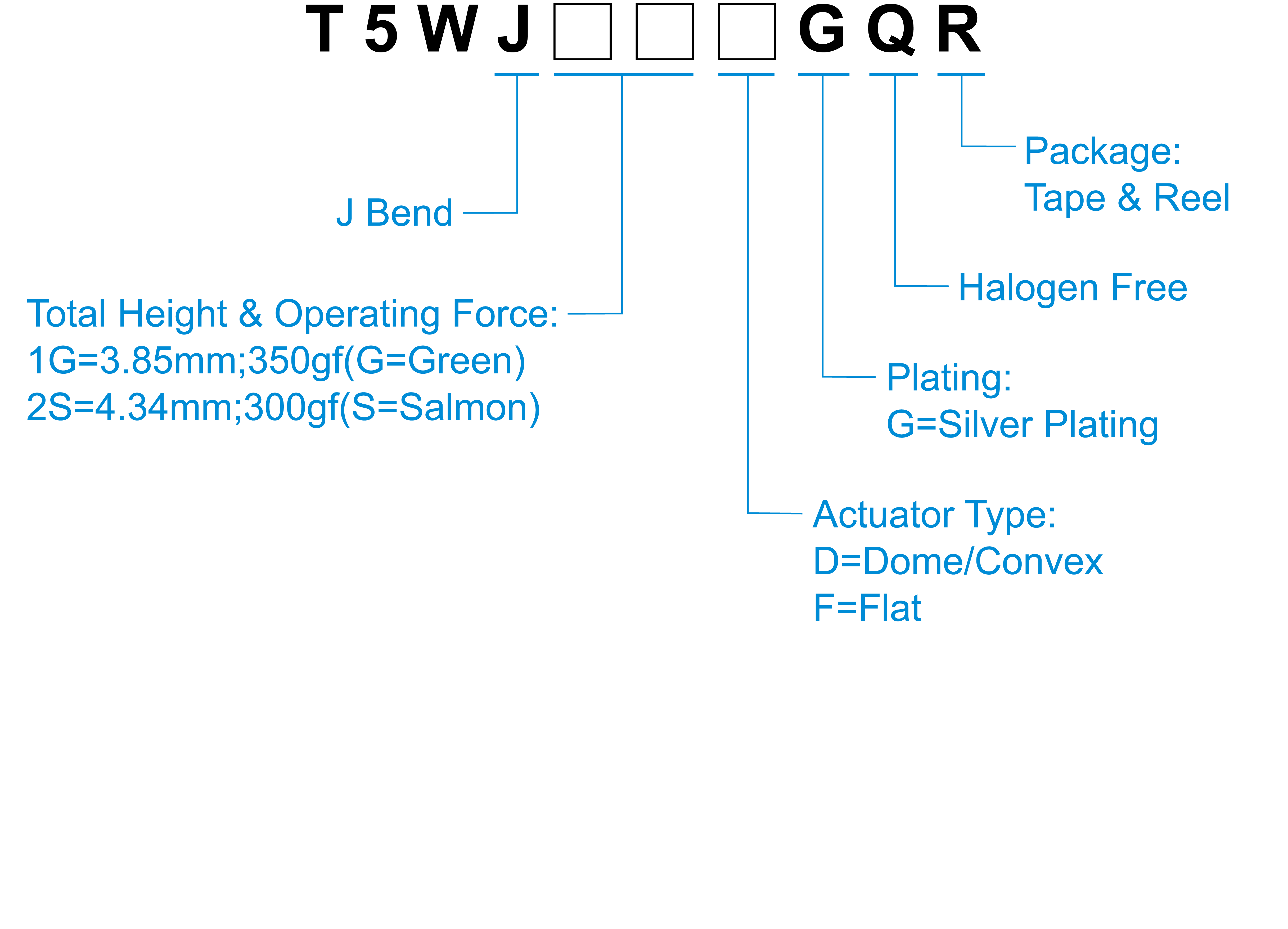

How to Order
Specification
Contact Rating | 10uA, 1V DC Min. / 50mA, 16V DC Max. |
---|---|
Contact Resistance | 100 mΩ Max. (initial) |
Insulation Resistance | 100MΩ Min. |
Dielectric Strength | 250V AC / 1 minute |
Operating Force | 350±60gf |
Travel | 0.7±0.3mm |
Operating Life | 250,000 cycles Min. |
Operating Temp. | -40°C~+105°C |
Storage Temp. | -40°C~+105°C |
T5WJ
Download Directory料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
T5WJ1GDGQ | Vertical Push | 3.85 | 350 | 0.7 | 250000 | ● |
T5WJ1GFGQ | Vertical Push | 3.85 | 350 | 0.7 | 250000 | ● |
