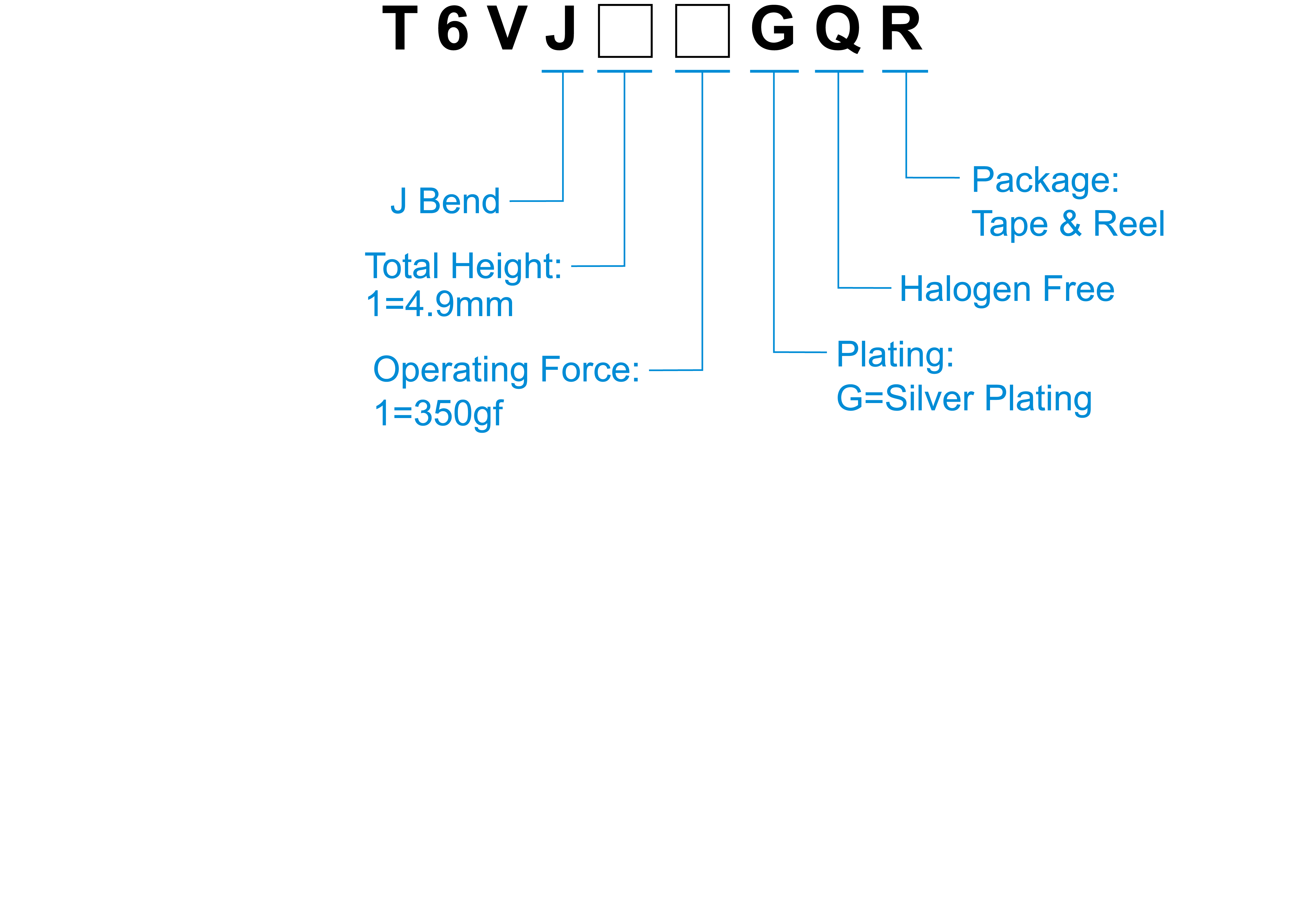

How to Order
Specification
| Contact Rating | 10uA, 1V DC Min. / 50mA, 16V DC Max. |
|---|---|
| Contact Resistance | 100 mΩ Max. (initial) |
| Insulation Resistance | 100MΩ Min. |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 350±90gf |
| Travel | 0.65±0.25mm |
| Operating Life | 100,000 cycles Min. |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -55°C~+85°C |
T6VJ
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| T6VJ11GQ | Vertical Push | 4.9 | 350 | 0.65 | 100000 | ● |
