T6W

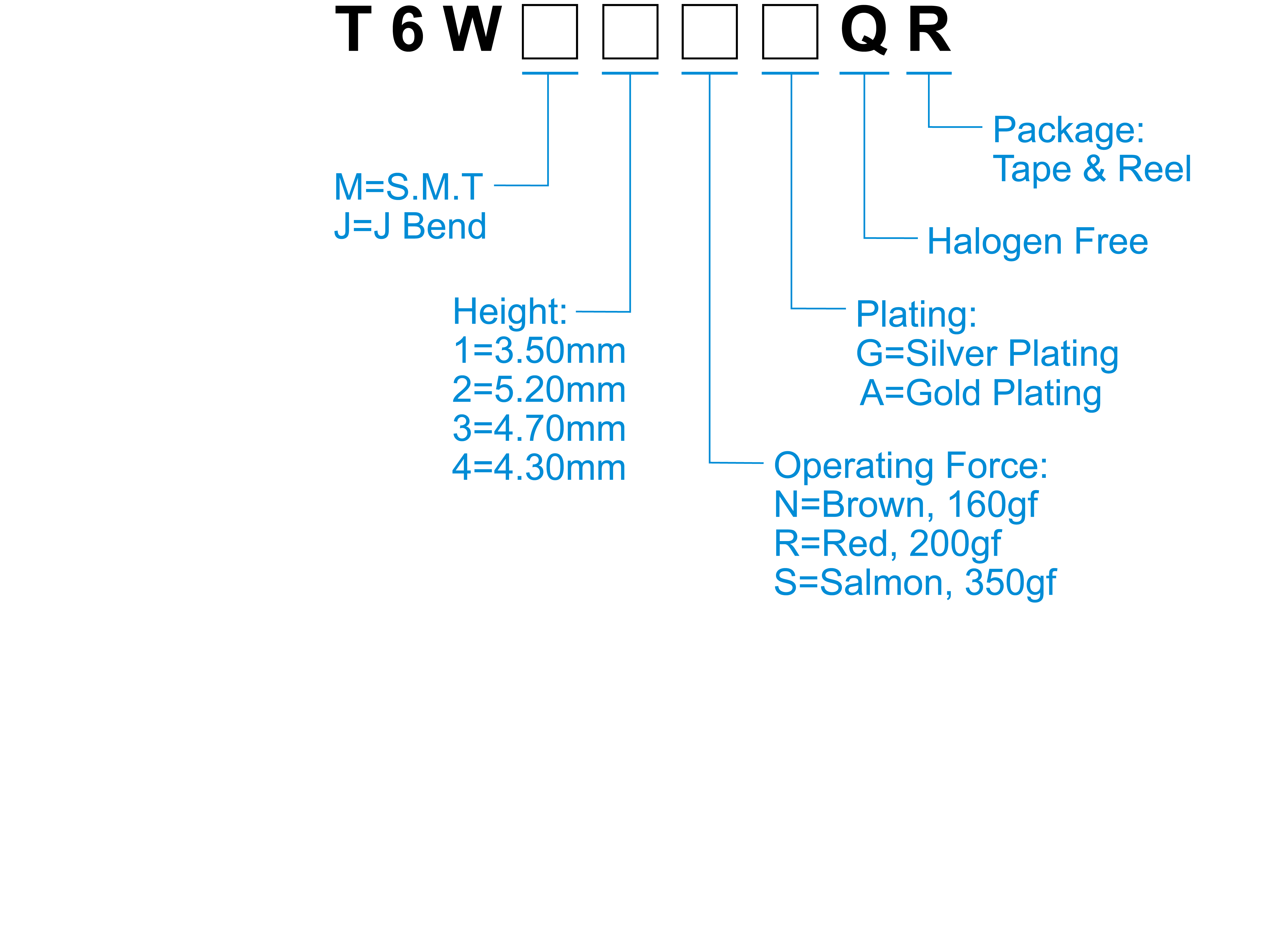

How to Order

Specification

Contact Rating 20mV DC~32V DC/1.0 Ma~50mA
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 100V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 160±50gf,Brown(N) / 200±50gf,Red(Ｒ) / 350±100gf,Salmon(S)
Travel 0.3mm(160gf) / 0.35mm(200gf) / 0.5mm(350gf)
Operating Life 300,000 cycles (350gf) / 500,000 cycles (200gf) / 5,000,000 cycles (160gf)
Operating Temp. -40°C~+85°C
Storage Temp. -55°C(10 days)~+85°C(4days)

T6W

Download Directory
料號 Operating Direction H (mm) Force(gf) Stroke (mm) Life cycles Dustproof and Waterproof
T6WM1NGQ Vertical Push 3.5 160 0.3 5000000 ●
T6WM1RGQ Vertical Push 3.5 200 0.35 500000 ●
T6WM1SGQ Vertical Push 3.5 350 0.5 300000 ●
T6WM2NGQ Vertical Push 5.2 160 0.3 5000000 ●
T6WM2RGQ Vertical Push 5.2 200 0.35 500000 ●
T6WM2SGQ Vertical Push 5.2 350 0.5 300000 ●
T6WM3NGQ Vertical Push 4.7 160 0.3 5000000 ●
T6WM3RGQ Vertical Push 4.7 200 0.35 500000 ●
T6WM3SGQ Vertical Push 4.7 350 0.5 300000 ●
T6WM4NGQ Vertical Push 4.3 160 0.3 5000000 ●
