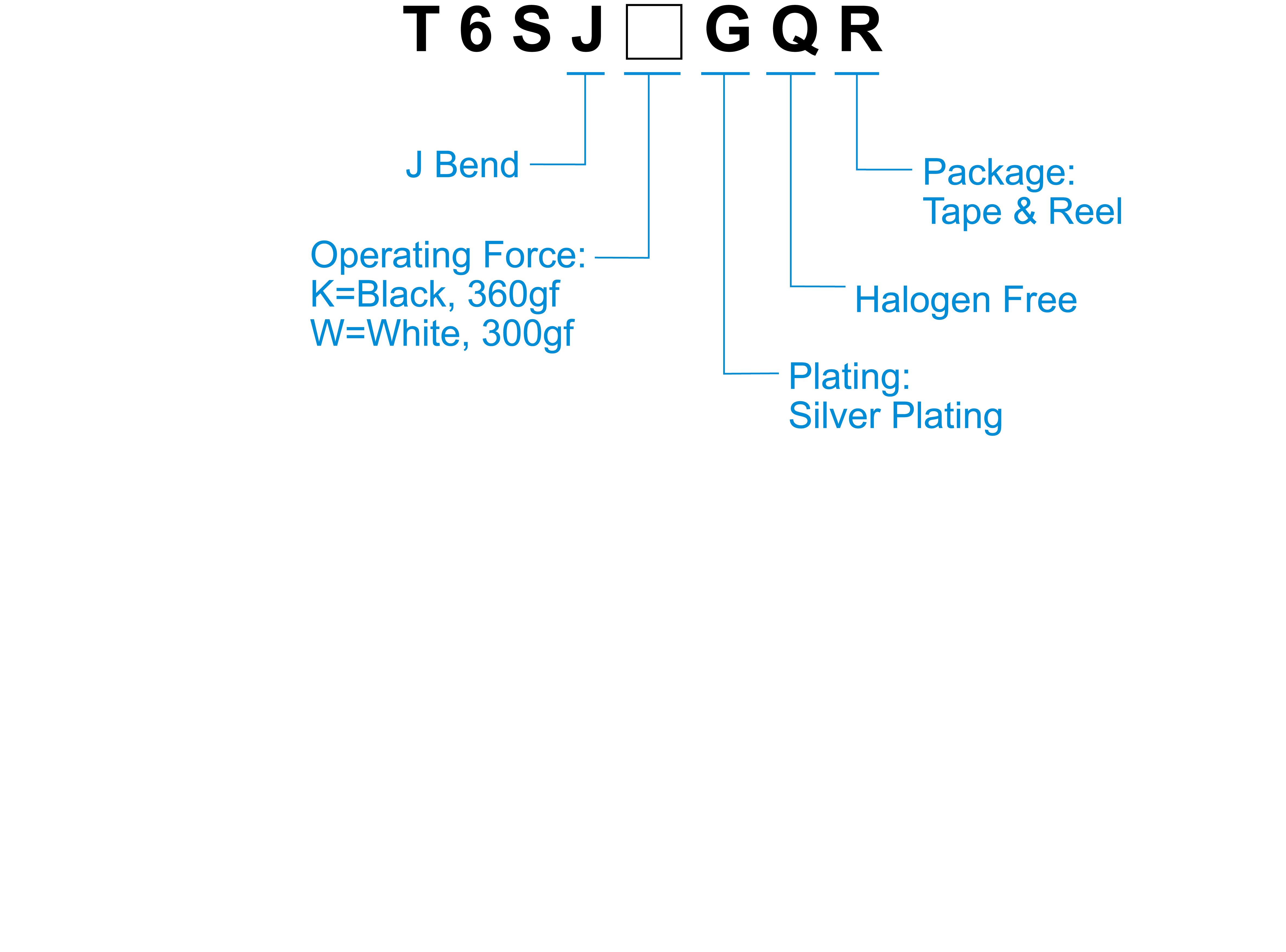

How to Order
Specification
Contact Rating | 50µA,1V DC to 50mA, 16V DC |
---|---|
Contact Resistance | 100mΩ Max.(initial) |
Insulation Resistance | 100MΩ Min. |
Dielectric Strength | 500V AC/1 minute |
Operating Force | 300±80gf/360±80gf |
Travel | 1.05mm |
Operating Life | 300,000 cycles Min. |
Operating Temp. | -40°C~+90°C |
Storage Temp. | -40°C~+90°C |
料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
T6SJKGQ | Vertical Push | 5 | 360 | 1.05 | 300000 | |
T6SJWGQ | Vertical Push | 5 | 300 | 1.05 | 300000 |
