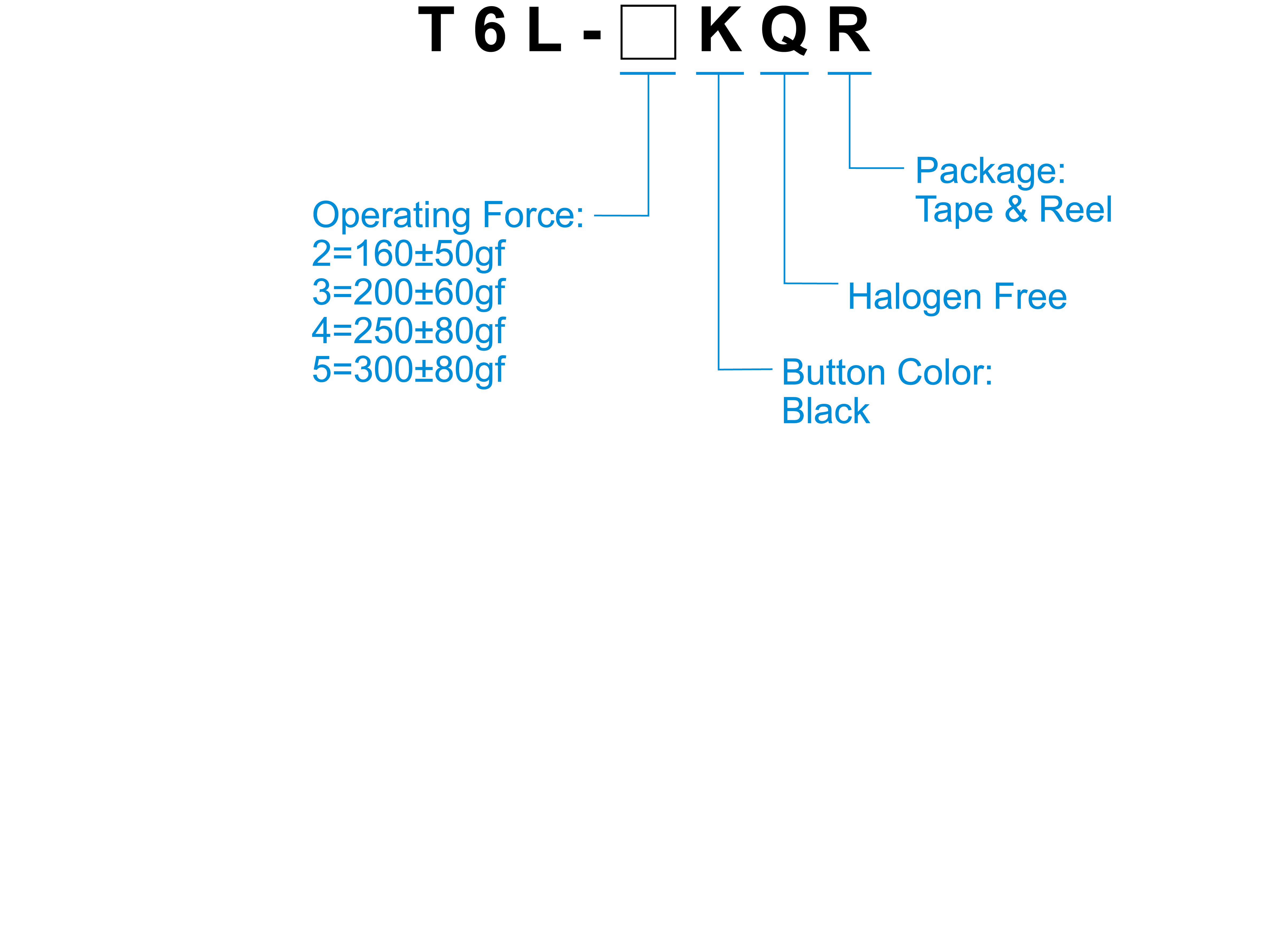

How to Order
Specification
Contact Rating | 10uA,1V DC to 50mA, 16V DC |
---|---|
Contact Resistance | 100mΩ Max. 500V DC |
Insulation Resistance | 100MΩ Min. 100V DC |
Dielectric Strength | 250V AC/1 minute |
Operating Force | 160±50gf/200±60gf/250±80gf/300±80gf |
Travel | 1.3mm |
Operating Life | 100,000 cycles (160gf/200gf/250gf/300gf) |
Operating Temp. | -40°C~+90°C |
Storage Temp. | -40°C~+90°C |
料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
T6L2KQ | Vertical Push | 5 | 160 | 1.3 | 100000 | |
T6L3KQ | Vertical Push | 5 | 200 | 1.3 | 100000 | |
T6L4KQ | Vertical Push | 5 | 250 | 1.3 | 100000 | |
T6L5KQ | Vertical Push | 5 | 300 | 1.3 | 100000 |
