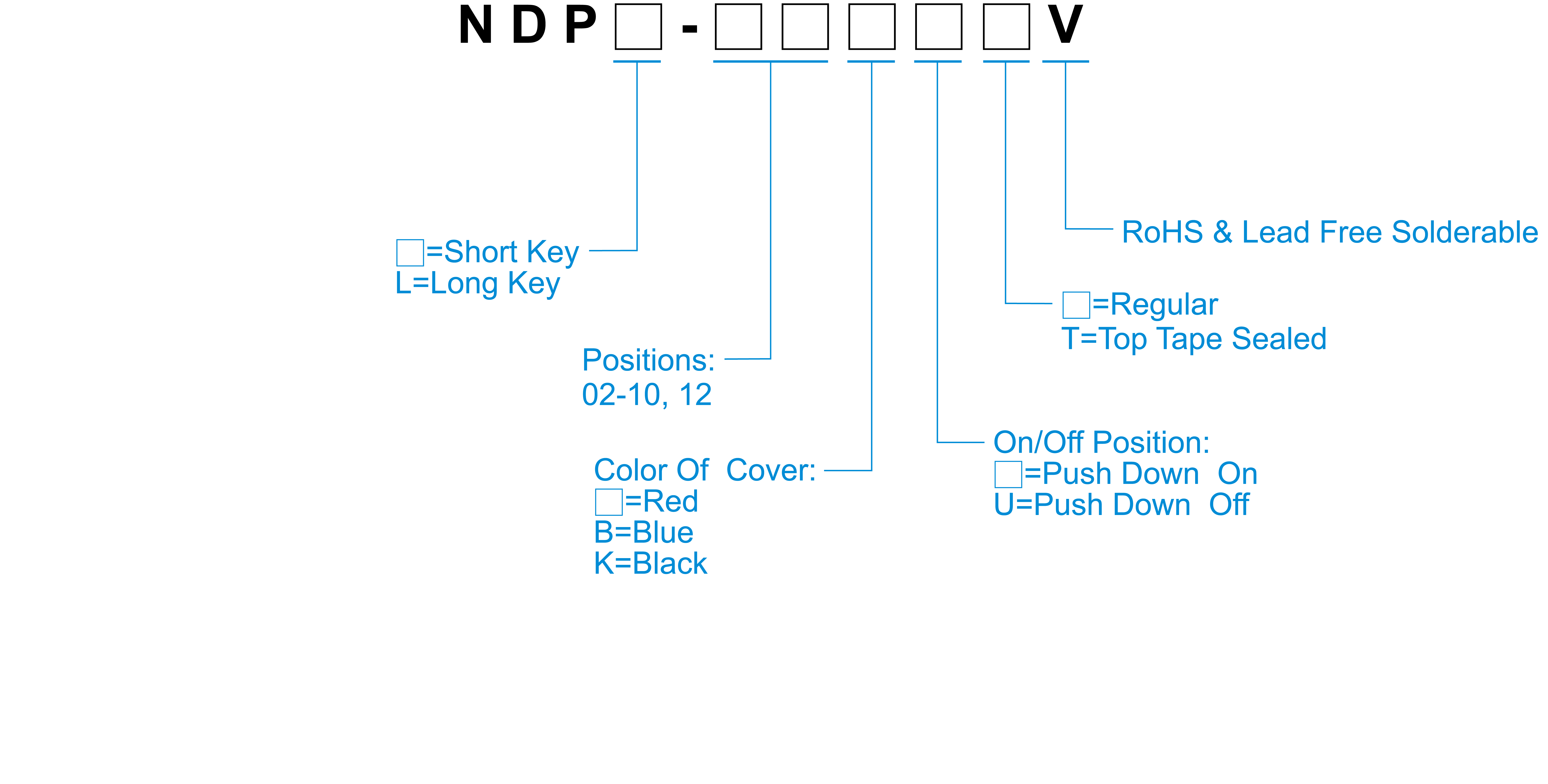

How to Order
Specification
| Contact Rating | 25mA, 24V DC |
|---|---|
| Contact Resistance | 50 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500v Dc |
| Dielectric Strength | 500V AC/1 minute |
| Operating Force | 600gf Max. |
| Travel | 25° |
| Operating Life | 2.000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Terminal pitch (mm) | Pole | On/Off Position | With Tape (Y/N) | |
| NDP-02□V | 7.62 | 2 | OFF | N | DIP |
| NDP-03□V | 7.62 | 3 | OFF | N | DIP |
| NDP-04□V | 7.62 | 4 | OFF | N | DIP |
| NDP-05□V | 7.62 | 5 | OFF | N | DIP |
| NDP-06□V | 7.62 | 6 | OFF | N | DIP |
| NDP-07□V | 7.62 | 7 | OFF | N | DIP |
| NDP-08□V | 7.62 | 8 | OFF | N | DIP |
| NDP-09□V | 7.62 | 9 | OFF | N | DIP |
| NDP-10□V | 7.62 | 10 | OFF | N | DIP |
| NDP-12□V | 7.62 | 12 | OFF | N | DIP |
