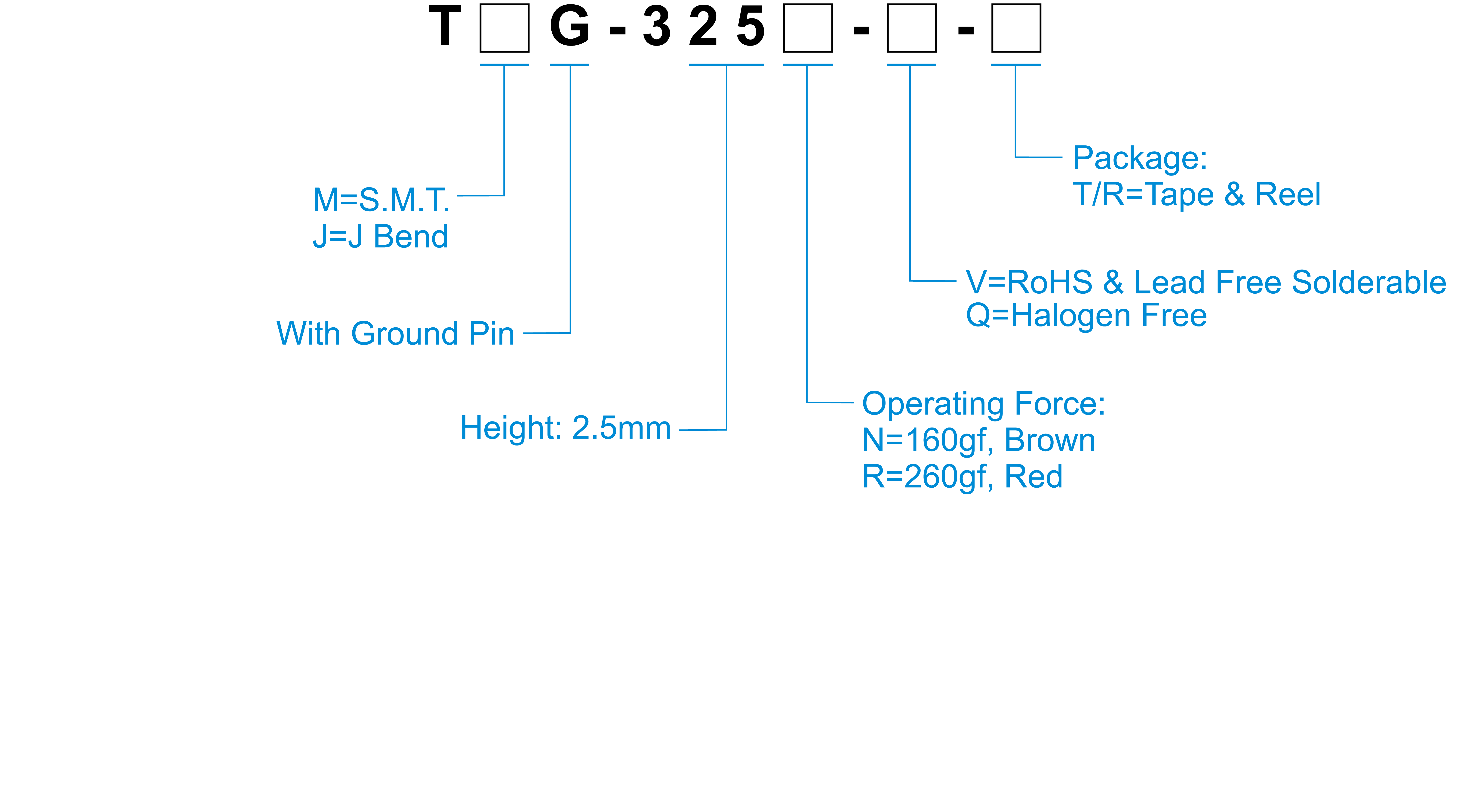

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 300V AC / 1 minute |
| Operating Force | 160±50gf, Brown(N) 260±50gf, Red(R) |
| Travel | 0.25mm |
| Operating Life | 20,000 cycles for 260gf 50,000 cycles for 160gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
T(M)(J)G-325
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| T□G-325N-□ | Vertical Push | 2.5 | 160 | 0.25 | 50000 | |
| T□G-325R-□ | Vertical Push | 2.5 | 260 | 0.25 | 20000 |
