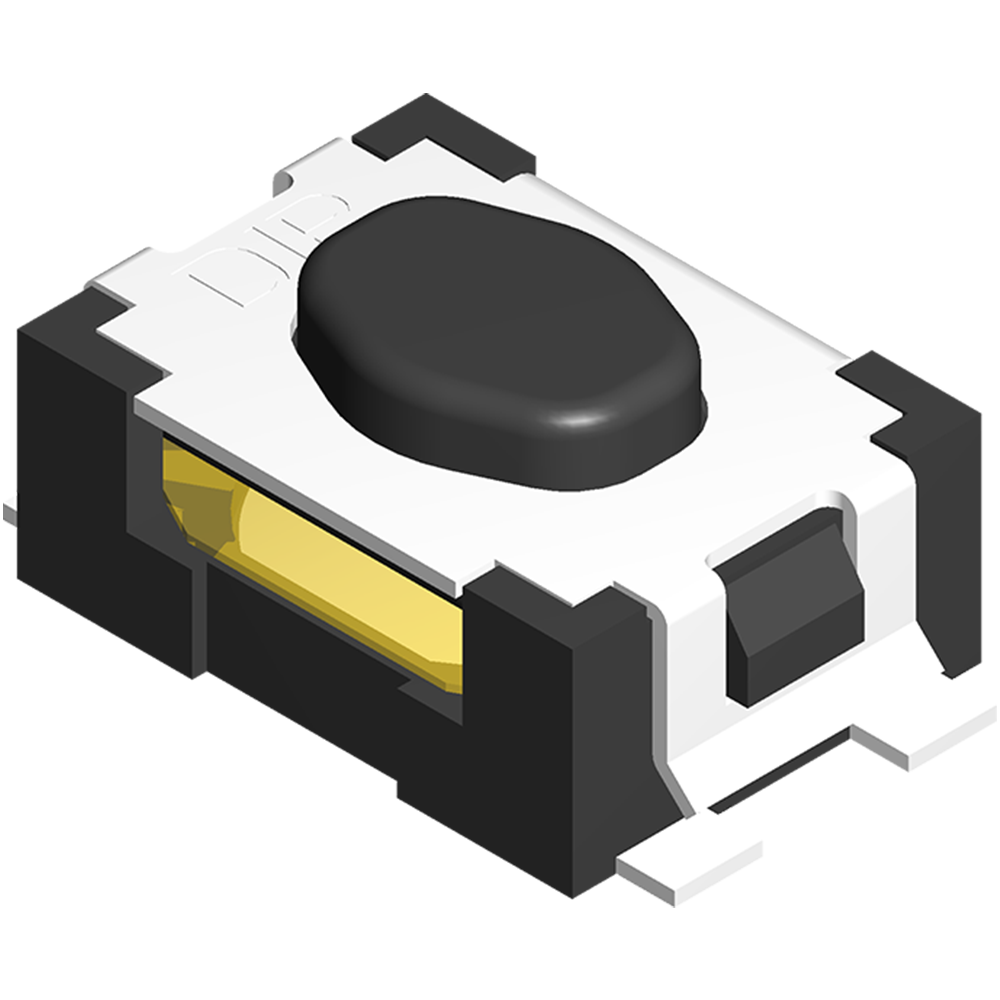

IPT

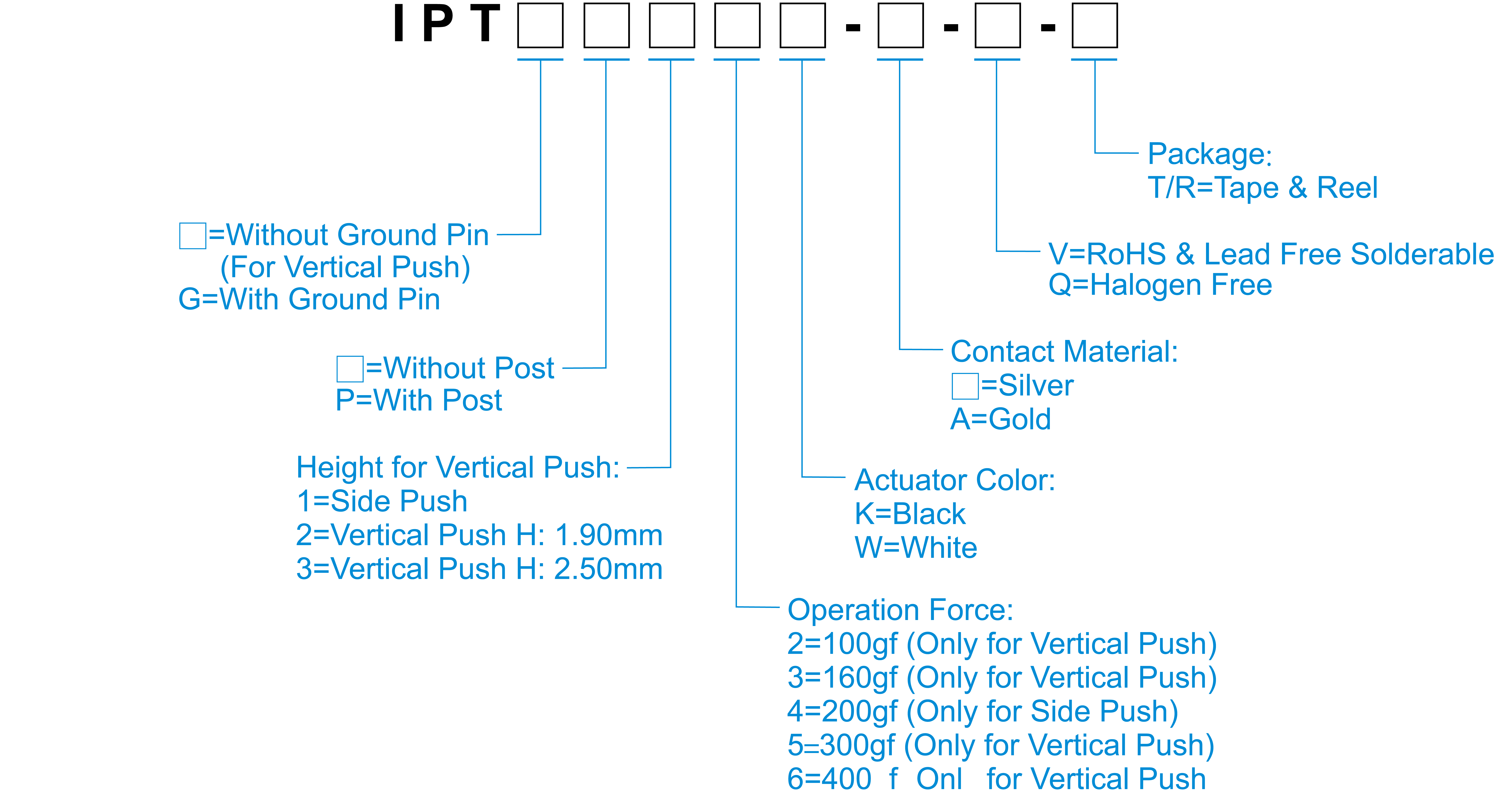

How to Order

Specification

Contact Rating 50mA, 12V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 500V DC
Dielectric Strength 100V AC / 1 minute
Operating Force 100±50gf, 160±50gf (Vertical Push) 200±65gf (Side Push) 300±80gf, 400±80gf (Vertical Push)
Travel 0.13mm (Vertical Push) 0.20mm (Side Push)
Operating Life 50,000 cycles for 300/400gf 100,000 cycles for 100/160/200gf
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

IPT

Download Directory
料號 Operating Direction H (mm) Force(gf) Stroke (mm) Life cycles Dustproof and Waterproof
IPTG□14□-□ Side Push 1.48 200 0.2 100000
IPT□□22□-□ Vertical Push 1.9 100 0.13 100000
IPT□□23□-□ Vertical Push 1.9 160 0.13 100000
IPT□□25□-□ Vertical Push 1.9 300 0.13 50000
IPT□□26□-□ Vertical Push 1.9 400 0.13 50000
IPT□□32□-□ Vertical Push 2.5 100 0.13 100000
IPT□□33□-□ Vertical Push 2.5 160 0.13 100000
IPT□□35□-□ Vertical Push 2.5 300 0.13 50000
IPT□□36□-□ Vertical Push 2.5 400 0.13 50000
