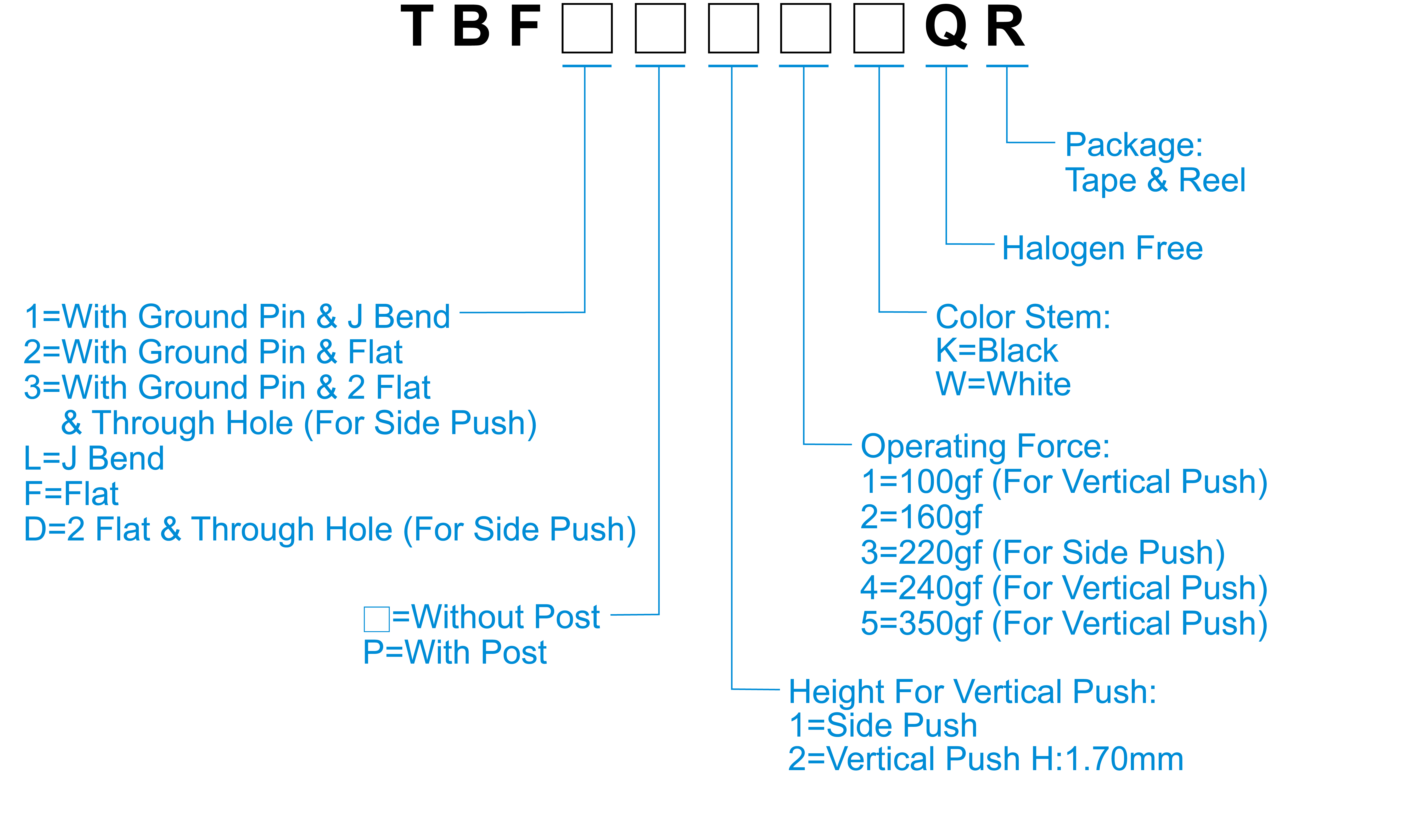

How to Order
Specification
| Contact Rating | 10μA , 2 V DC to 20mA , 15V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 100±50/160±50/240±80/350±100gf (Vertical Push) 160+70/-40, 220+80/-70gf (Side Push) |
| Travel | 0.15mm (Vertical Push) 0.20mm (Side Push) |
| Operating Life | 200,000 cycles for 160/240/350gf 1,000,000 cycles for 100gf (Vertical Push) |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| TBF□□12□Q | Side Push | 1.35 | 160 | 0.2 | 100000 | |
| TBF□□13□Q | Side Push | 1.35 | 220 | 0.2 | 100000 | |
| TBF□□21□Q | Vertical Push | 1.7 | 100 | 0.15 | 1000000 | |
| TBF□□22□Q | Vertical Push | 1.7 | 160 | 0.15 | 200000 | |
| TBF□□24□Q | Vertical Push | 1.7 | 240 | 0.15 | 200000 | |
| TBF□□25□Q | Vertical Push | 1.7 | 350 | 0.15 | 200000 |
