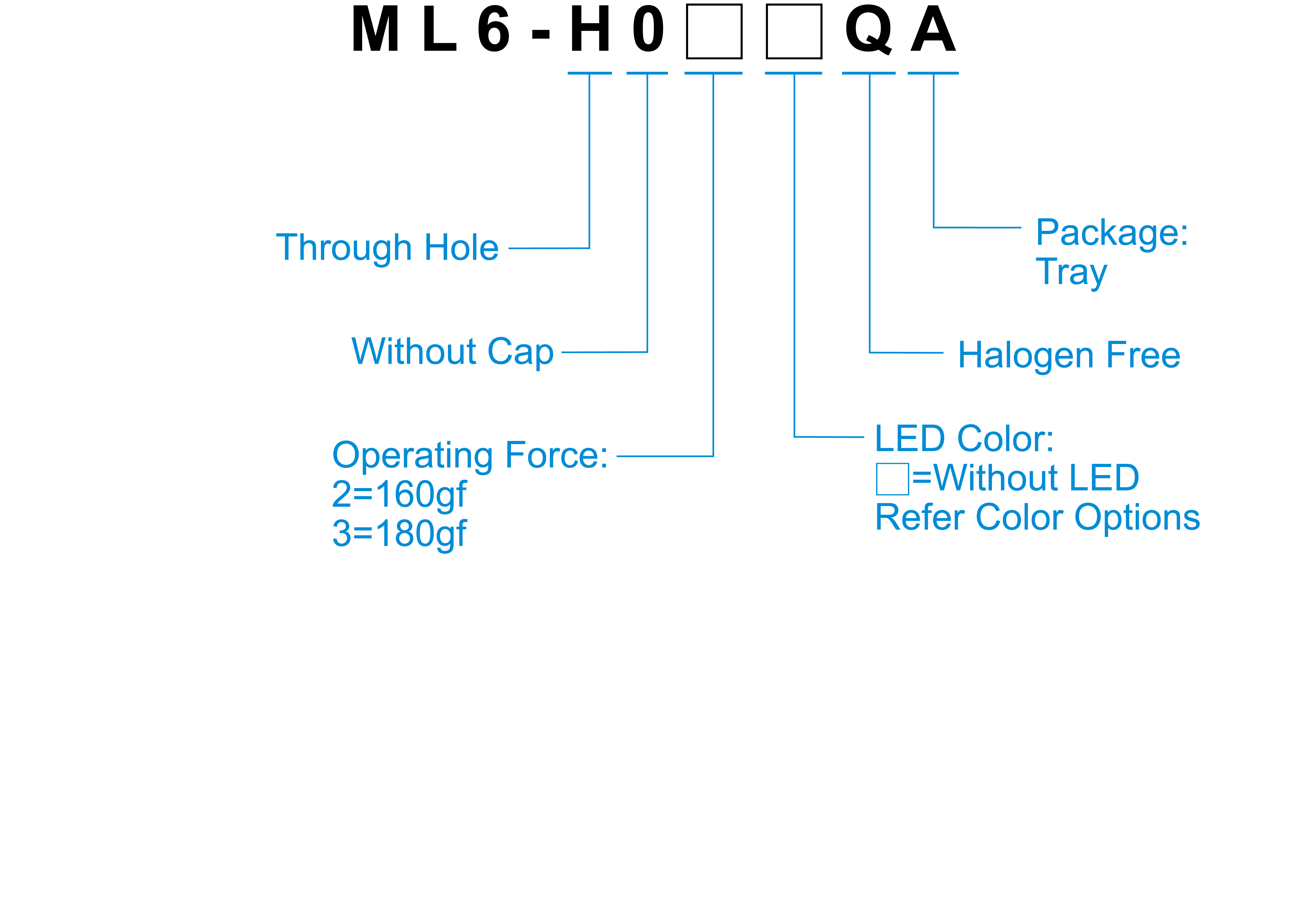

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf / 180±50gf |
| Travel | 0.25mm |
| Operating Life | 300,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

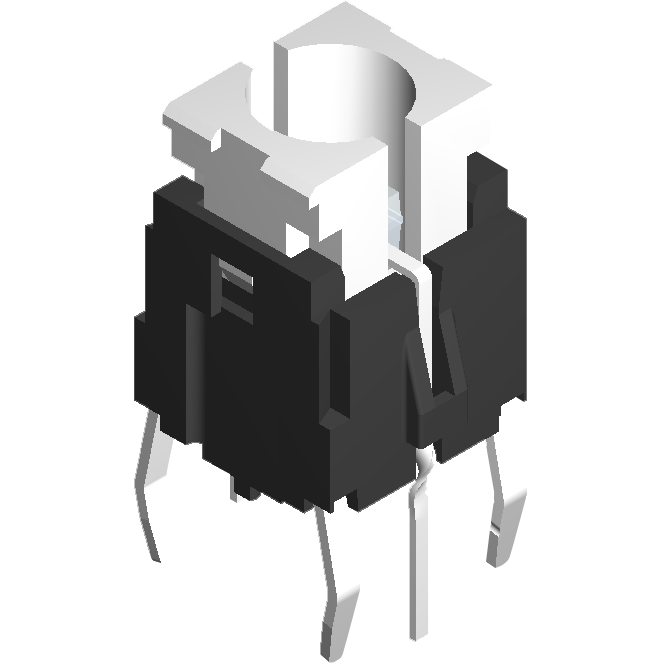

ML6-H0
Download Directory| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| ML6-H02Q | - | - | - | 160 | 0.25 | 300000 | - | - | - |
| ML6-H02BQ | B(Blue) | - | - | 160 | 0.25 | 300000 | - | - | - |
| ML6-H02GQ | G(Yellow Green) | - | - | 160 | 0.25 | 300000 | - | - | - |
| ML6-H02YQ | Y(Yellow) | - | - | 160 | 0.25 | 300000 | - | - | - |
| ML6-H02Q | A(Soft Orange) | - | - | 160 | 0.25 | 300000 | - | - | - |
| ML6-H02RQ | R(Deep Red) | - | - | 160 | 0.25 | 300000 | - | - | - |
| ML6-H02WQ | W(Cold White) | - | - | 160 | 0.25 | 300000 | - | - | - |
| ML6-H02PGQ | PG(Pure Green) | - | - | 160 | 0.25 | 300000 | - | - | - |
| ML6-H03Q | - | - | - | 180 | 0.25 | 300000 | - | - | - |
| ML6-H03BQ | B(Blue) | - | - | 180 | 0.25 | 300000 | - | - | - |
