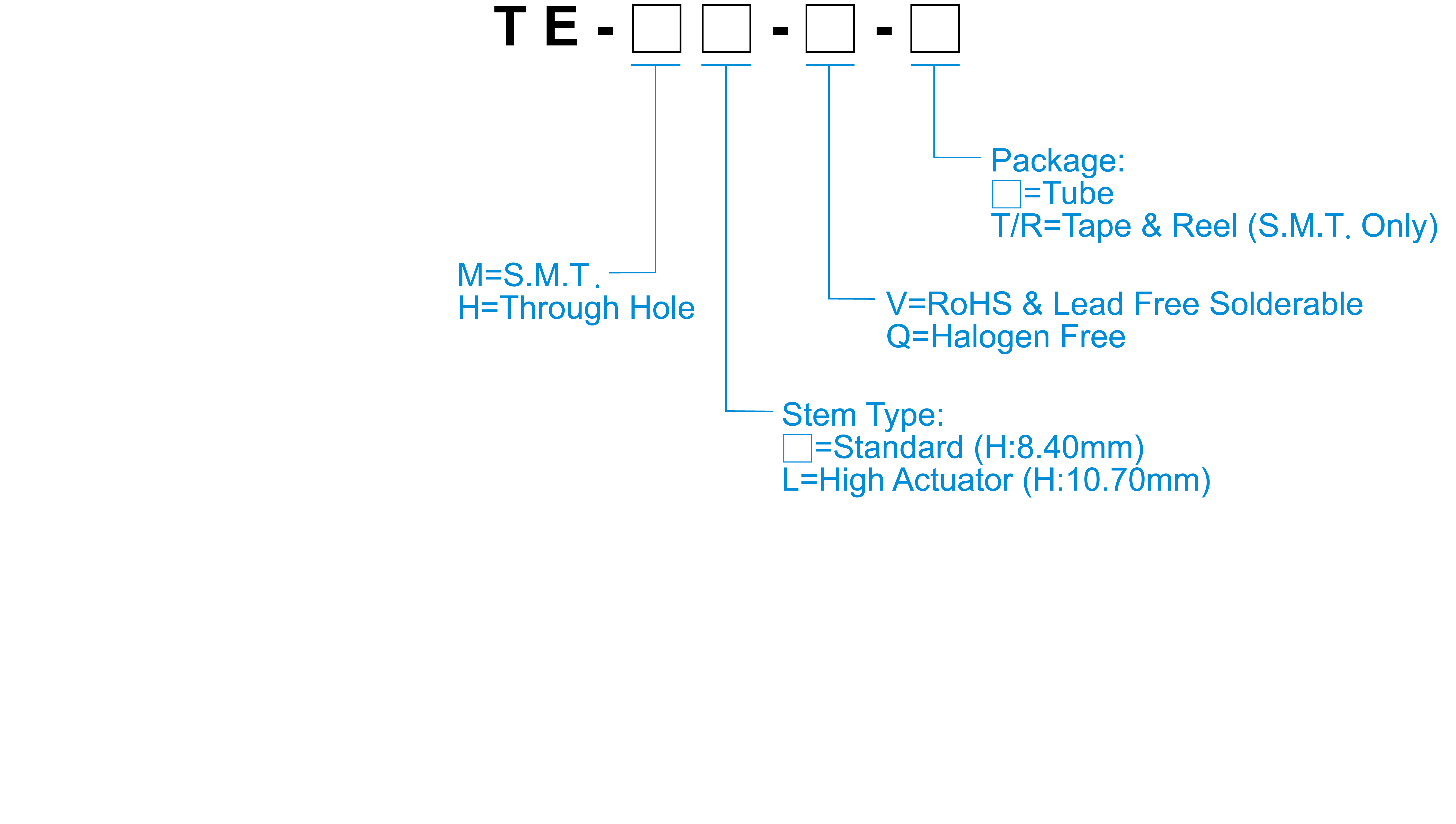

How to Order
Specification
| Contact Rating | 5mA, 5V DC |
|---|---|
| Contact Resistance | 500mΩ Max. |
| Insulation Resistance | 100MΩ Min. 250V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 35gf Max. |
| Operating Position | 2.0mm |
| Operating Life | 50,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | Terminal | OP_1(mm) | OP_2(mm) | Dustproof and Waterproof | |
| TE-M□-□ | 1P1T | For Lead | 35 | 2 | - | - |
| TE-H□-□ | 1P1T | For PC board | 35 | 2 | - | - |
