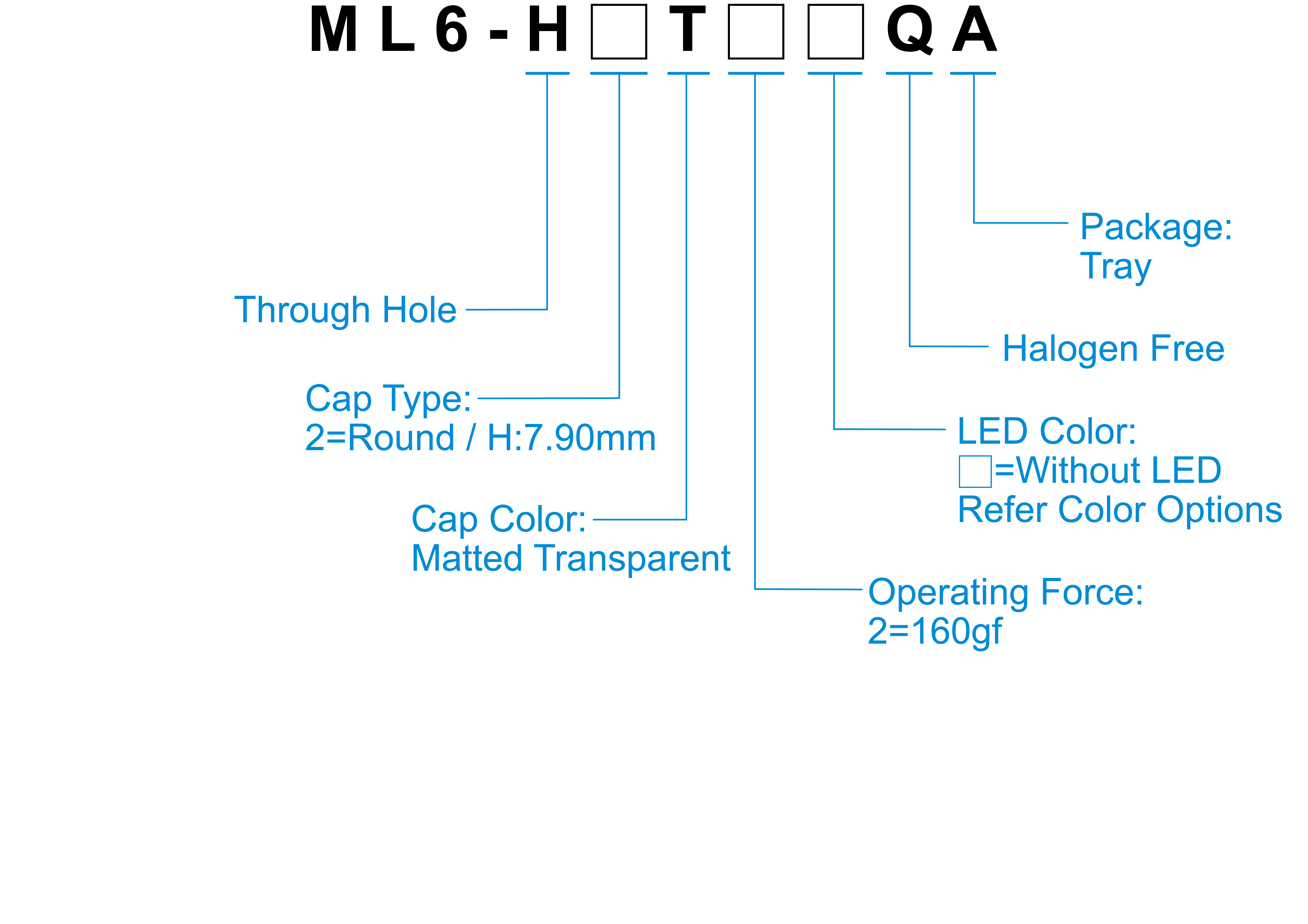

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf |
| Travel | 0.25mm |
| Operating Life | 300,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

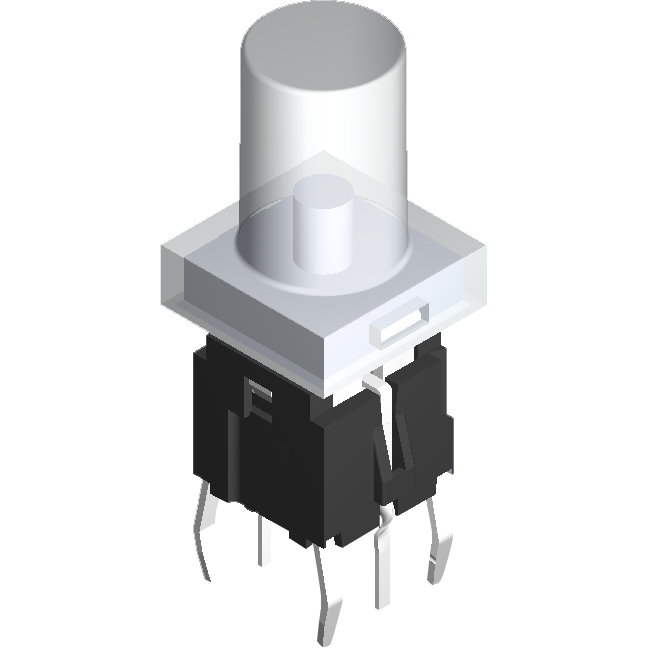

ML6-H2
Download Directory| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| ML6-H2T2Q | - | - | - | 160 | 0.25 | 300000 | 10.3 | 5.5 | - |
| ML6-H2T2BQ | B(Blue) | - | - | 160 | 0.25 | 300000 | 10.3 | 5.5 | - |
| ML6-H2T2GQ | G(Yellow Green) | - | - | 160 | 0.25 | 300000 | 10.3 | 5.5 | - |
| ML6-H2T2YQ | Y(Yellow) | - | - | 160 | 0.25 | 300000 | 10.3 | 5.5 | - |
| ML6-H2T2Q | A(Soft Orange) | - | - | 160 | 0.25 | 300000 | 10.3 | 5.5 | - |
| ML6-H2T2RQ | R(Deep Red) | - | - | 160 | 0.25 | 300000 | 10.3 | 5.5 | - |
| ML6-H2T2WQ | W(Cold White) | - | - | 160 | 0.25 | 300000 | 10.3 | 5.5 | - |
| ML6-H2T2PGQ | PG(Pure Green) | - | - | 160 | 0.25 | 300000 | 10.3 | 5.5 | - |
