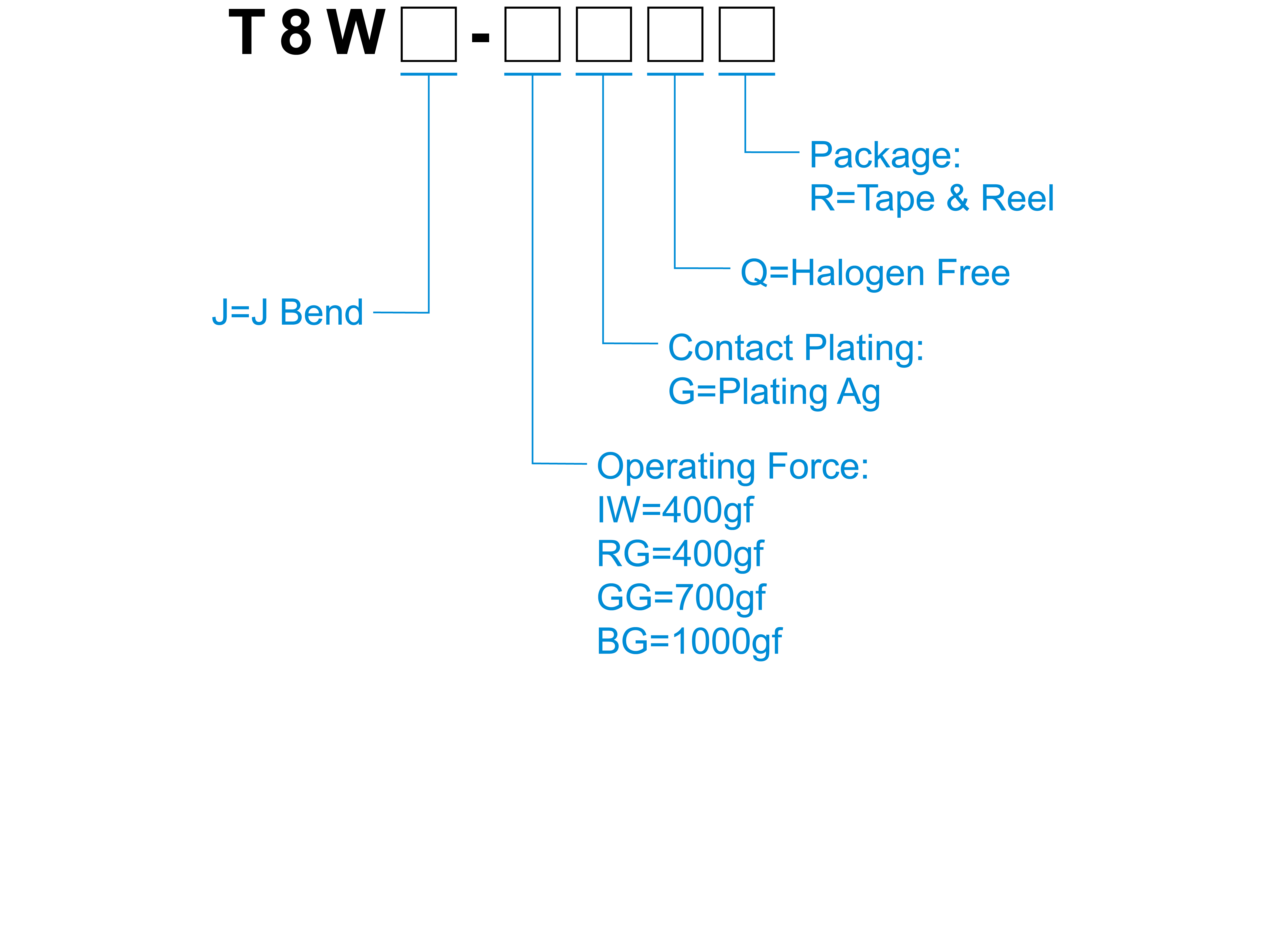

How to Order
Specification
| Contact Rating | 10μa,1VDC Min./ 50mA, 16VDC Max. |
|---|---|
| Contact Resistance | 100 mΩ Max. (Initial) |
| Insulation Resistance | 100MΩ Min. 100VDC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 400±80gf(Red+Green) / 400+100/-50gf(Iron+White) / 700±150gf(Green+Green) / 1000±200gf(Blue+Green) |
| Travel | IW:0.7mm / RG、GG、BG:0.9mm |
| Operating Life | 500,000 cycles (400gf) / 1,000,000 cycles (700gf) / 200,000 cycles (1,000gf) |
| Operating Temp. | -40°C~+90°C |
| Storage Temp. | -40°C~+90°C |
| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
