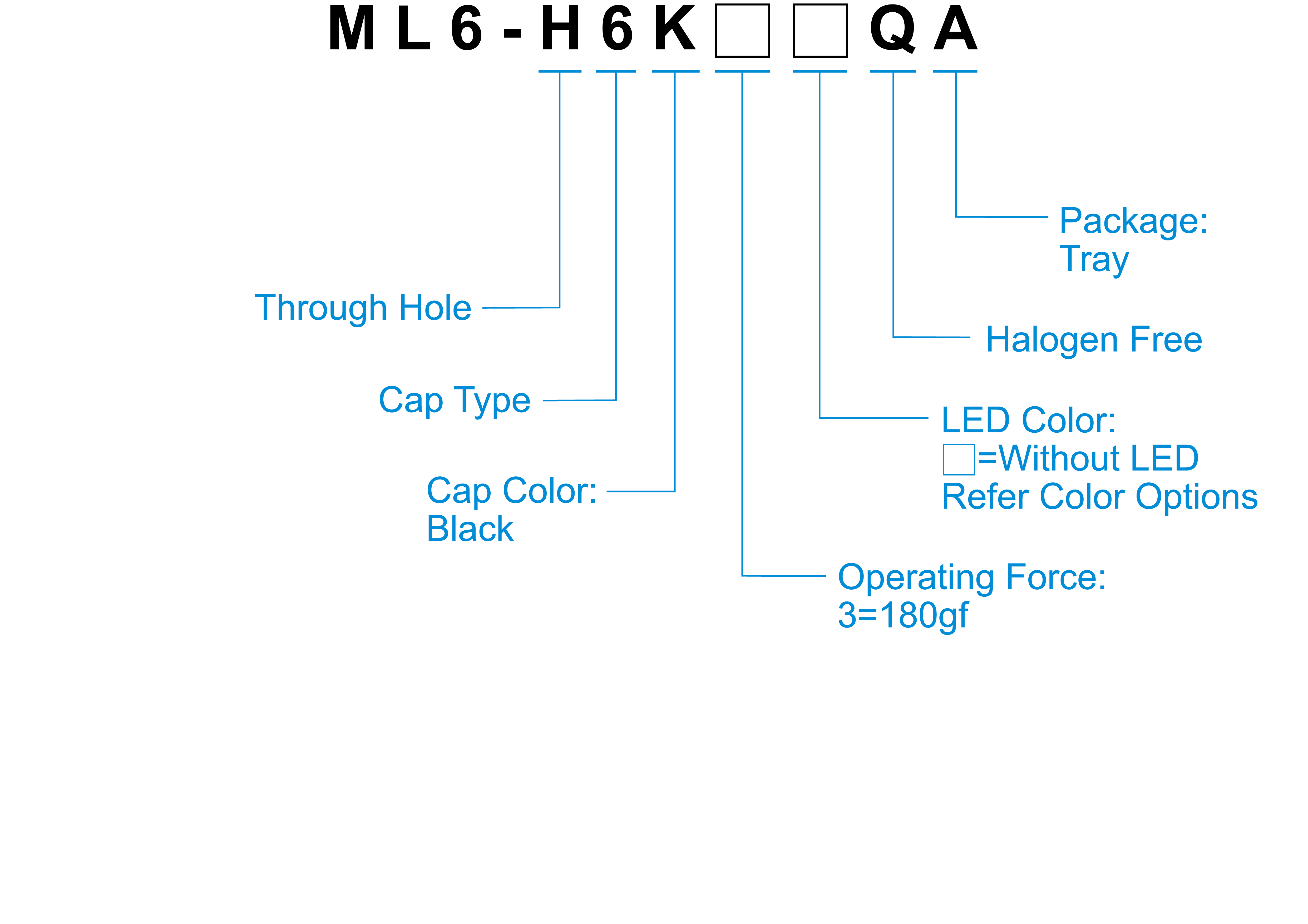

How to Order
Specification
| Contact Rating | 50m, 12V DC |
|---|---|
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V C / 1 minute |
| Operating Force | 180±50gf |
| Travel | 0.25mm |
| Operating Life | 300,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

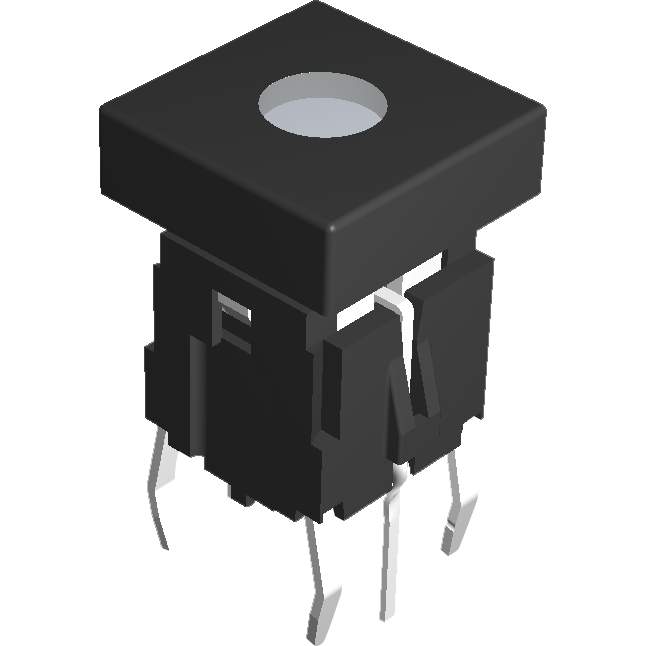

ML6-H6
Download Directory| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| ML6-H6K3Q | - | - | - | 180 | 0.25 | 300000 | 2.4 | 7.5x7.5 | - |
| ML6-H6K3BQ | B(Blue) | - | - | 180 | 0.25 | 300000 | 2.4 | 7.5x7.5 | - |
| ML6-H6K3GQ | G(Yellow Green) | - | - | 180 | 0.25 | 300000 | 2.4 | 7.5x7.5 | - |
| ML6-H6K3YQ | Y(Yellow) | - | - | 180 | 0.25 | 300000 | 2.4 | 7.5x7.5 | - |
| ML6-H6K3Q | (Soft Ornge) | - | - | 180 | 0.25 | 300000 | 2.4 | 7.5x7.5 | - |
| ML6-H6K3RQ | R(Deep Red) | - | - | 180 | 0.25 | 300000 | 2.4 | 7.5x7.5 | - |
| ML6-H6K3WQ | W(Cold White) | - | - | 180 | 0.25 | 300000 | 2.4 | 7.5x7.5 | - |
| ML6-H6K3PGQ | PG(Pure Green) | - | - | 180 | 0.25 | 300000 | 2.4 | 7.5x7.5 | - |
