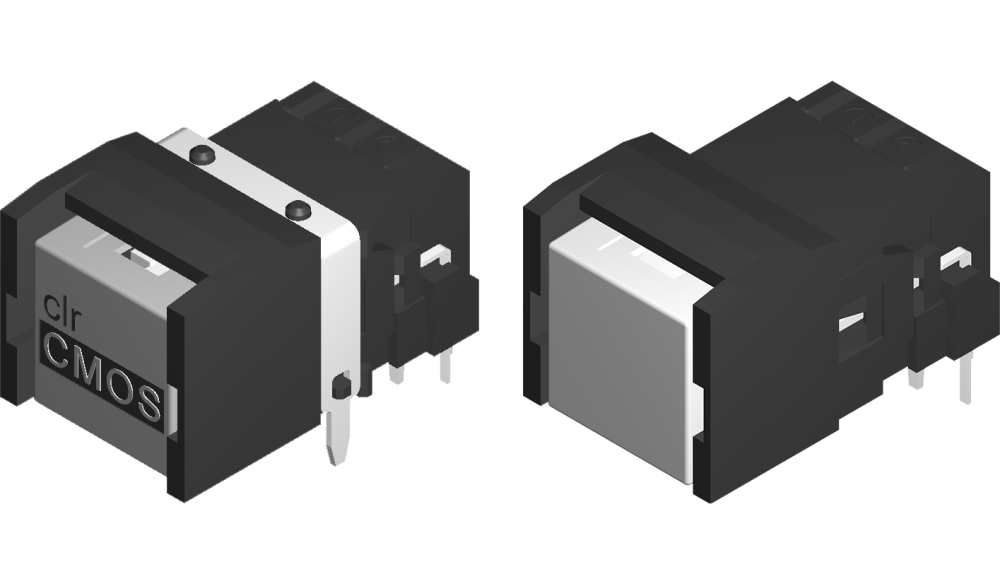

ML8

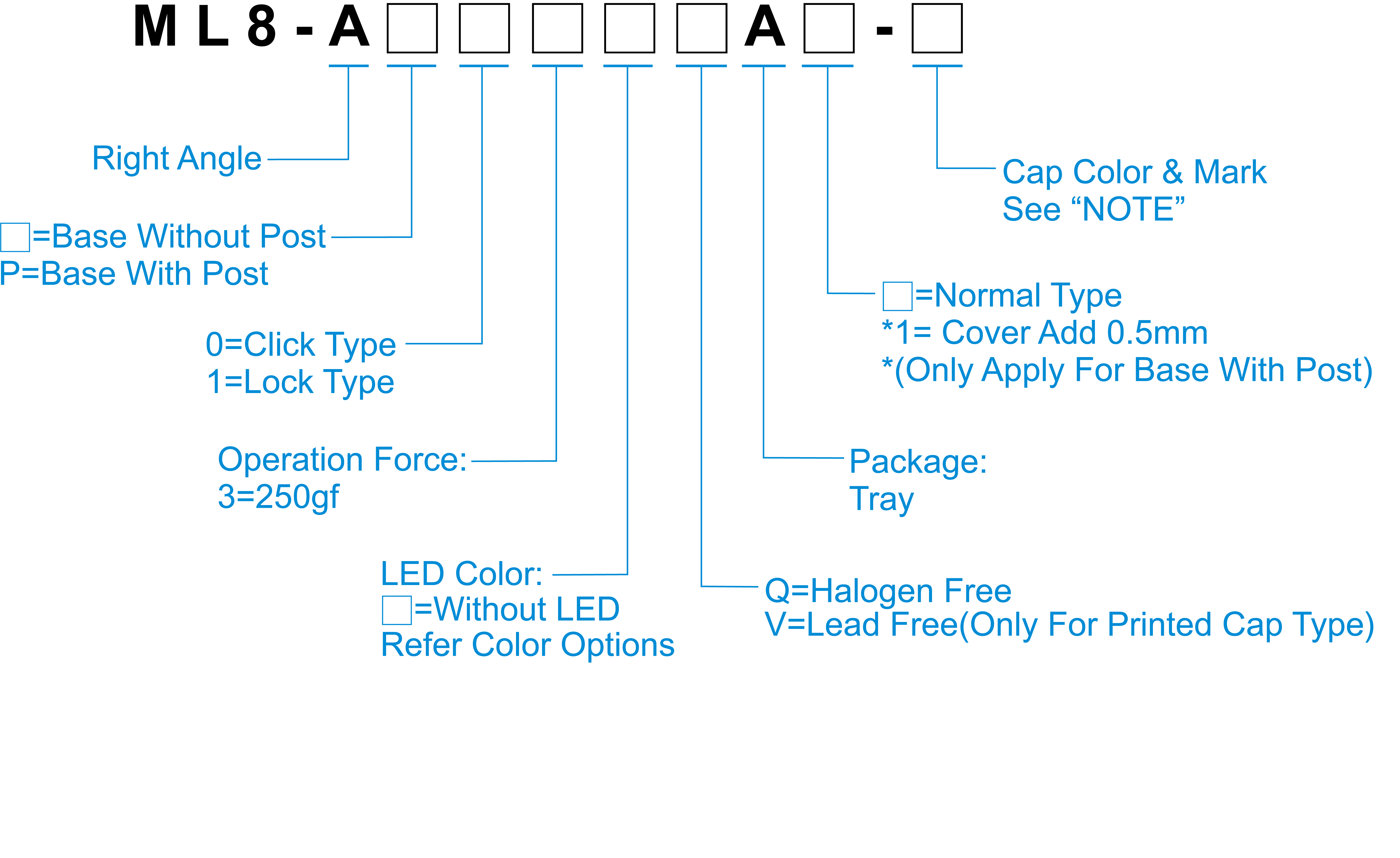

How to Order

Specification

Contact Rating 100mA, 30V DC
Contact Resistance 50mΩ Max.
Insulation Resistance 100MΩ Min. 500V DC
Dielectric Strength 500V AC / 1 minute
Operating Force 250±100gf
Travel 1.5mm
Operating Life 10,000 cycles
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

ML8

Download Directory
料號 LED 1 LED color 2 Cap color Stroke (mm) Life cycles Cap(Ø) Cap Printing
ML8-A□□3□A□-□ - - - 250 1.5 10000 - - -
ML8-A□□3B□A□-□ B(Blue) - - 250 1.5 10000 - - ●
ML8-A□□3PG□A□-□ PG(Pure Green) - - 250 1.5 10000 - - ●
ML8-A□□3G□A□-□ G(Yellow Green) - - 250 1.5 10000 - - ●
ML8-A□□3Y□A□-□ Y(Yellow) - - 250 1.5 10000 - - ●
ML8-A□□3A□A□-□ A(Soft Orange) - - 250 1.5 10000 - - ●
ML8-A□□3R□A□-□ R(Deep Red) - - 250 1.5 10000 - - ●
ML8-A□□3W□A□-□ W(Cold White) - - 250 1.5 10000 - - ●
