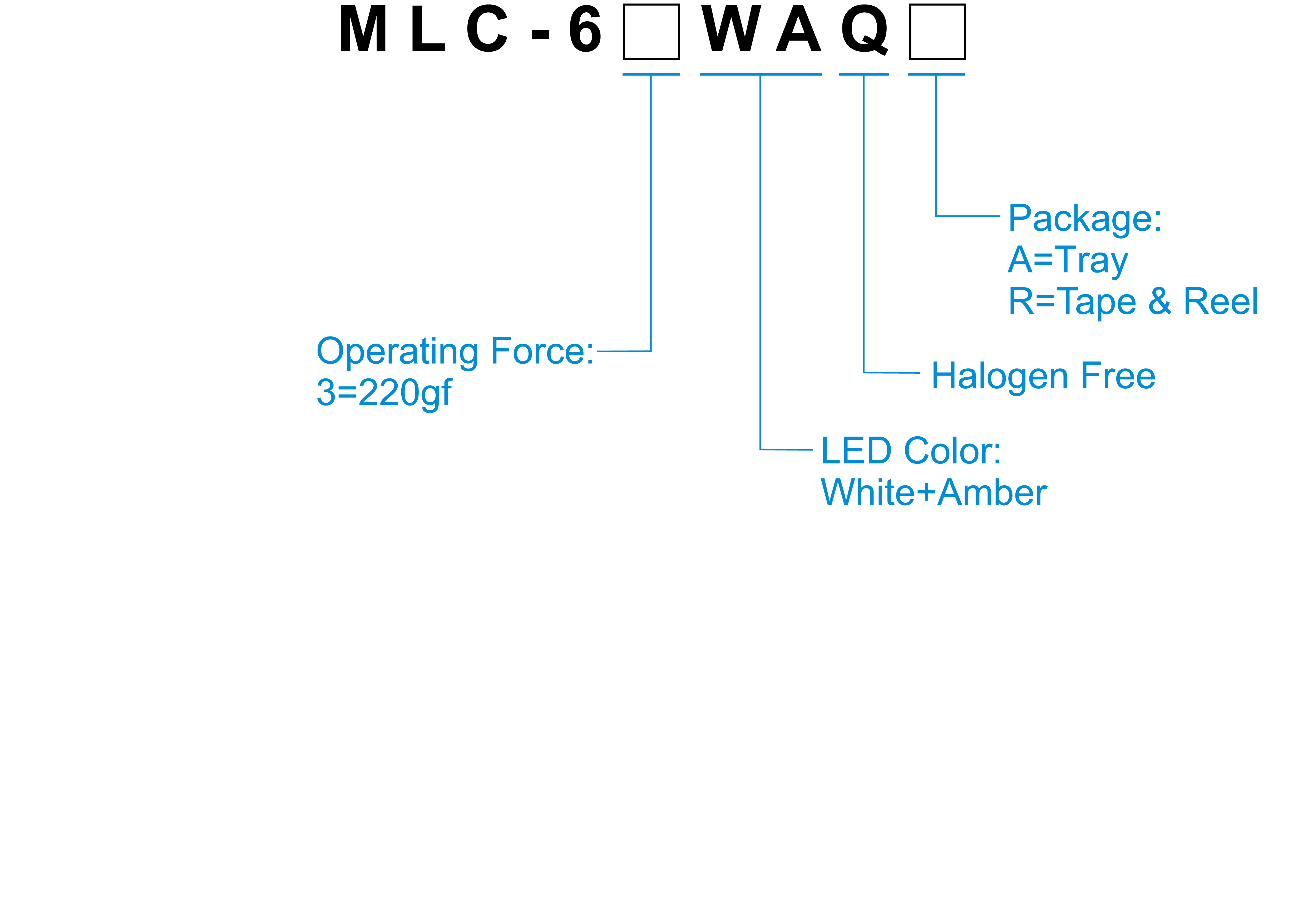

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 220±50gf |
| Travel | 0.25mm |
| Operating, Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| MLC-63WAQ | WA(White+Amber) | - | - | 220 | 0.2 | 100000 | - | - | - |
| MLC-63BQ | B(Blue) | - | - | 220 | 0.2 | 100000 | - | - | - |
| MLC-63GQ | G(Yellow Green) | - | - | 220 | 0.2 | 100000 | - | - | - |
| MLC-63WQ | W(Cold White) | - | - | 220 | 0.2 | 100000 | - | - | - |
