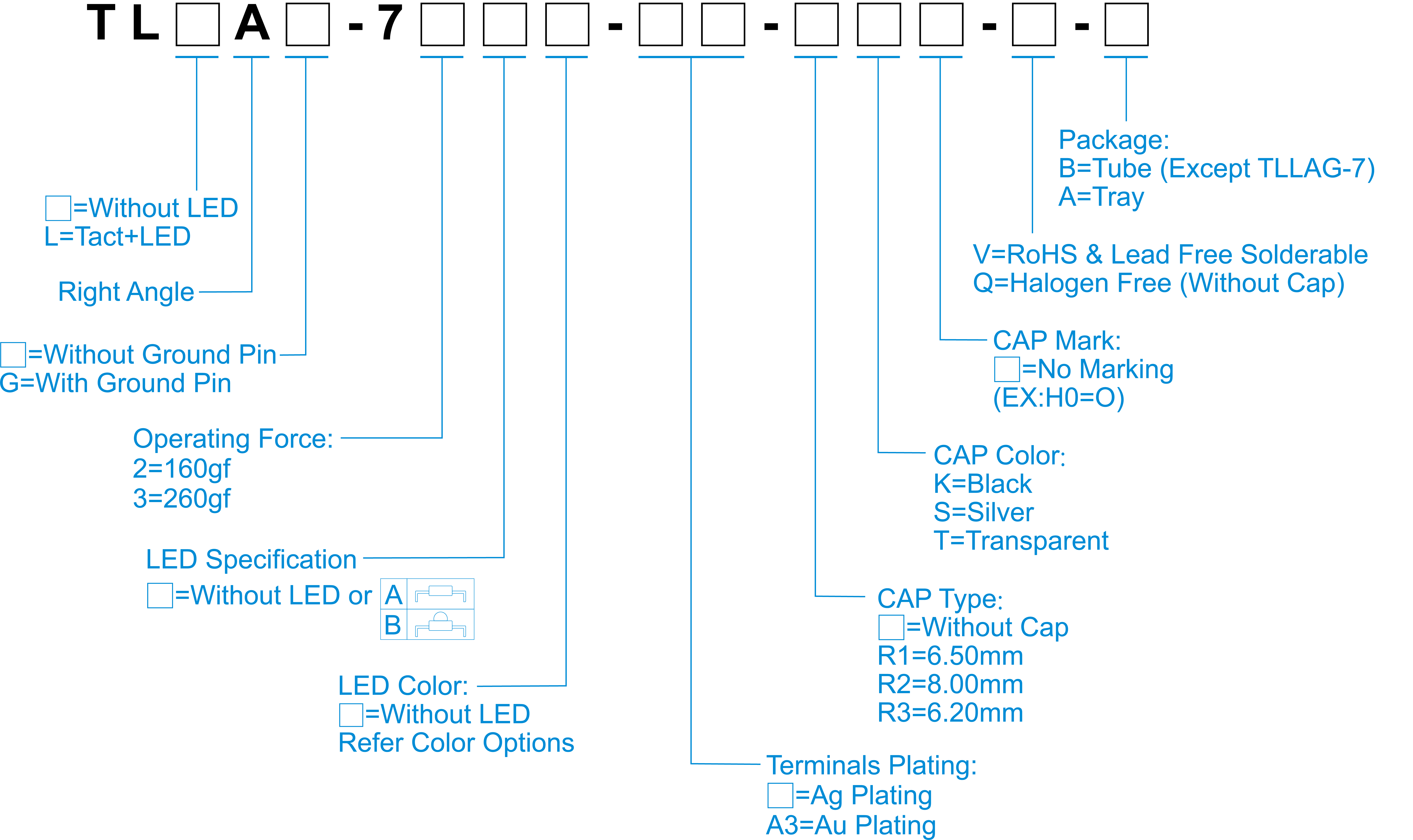

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf / 260±50gf |
| Travel | 0.2mm |
| Operating Life | 500,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

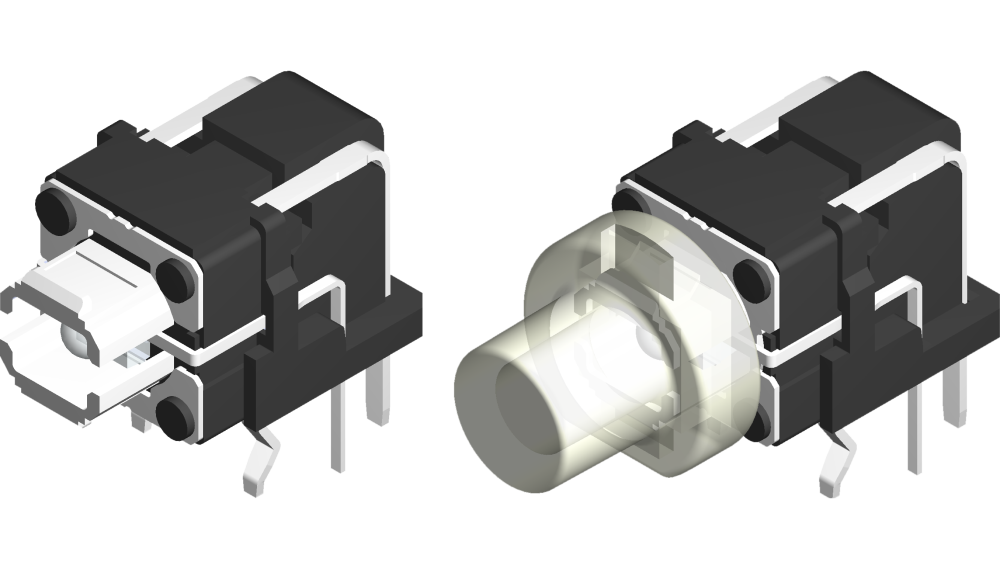

TL(L)A(G)-7
Download Directory| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| TLLA-73AB-□□-R1□□-□ | B(Blue) | - | - | 260 | 0.2 | 500000 | 6.5 | 4.7 | ● |
| TLLA-73AB-□□-R2□□-□ | B(Blue) | - | - | 260 | 0.2 | 500000 | 8.0 | 4.7 | ● |
| TLLA-73AB-□□-R3□□-□ | B(Blue) | - | - | 260 | 0.2 | 500000 | 6.2 | 4.7 | ● |
| TLLA-73AG-□□-R1□□-□ | G(Yellow Green) | - | - | 260 | 0.2 | 500000 | 6.5 | 4.7 | ● |
| TLLA-73AG-□□-R2□□-□ | G(Yellow Green) | - | - | 260 | 0.2 | 500000 | 8.0 | 4.7 | ● |
| TLLA-73AG-□□-R3□□-□ | G(Yellow Green) | - | - | 260 | 0.2 | 500000 | 6.2 | 4.7 | ● |
| TLLA-73AY-□□-R1□□-□ | Y(Yellow) | - | - | 260 | 0.2 | 500000 | 6.5 | 4.7 | ● |
| TLLA-73AY-□□-R2□□-□ | Y(Yellow) | - | - | 260 | 0.2 | 500000 | 8.0 | 4.7 | ● |
| TLLA-73AY-□□-R3□□-□ | Y(Yellow) | - | - | 260 | 0.2 | 500000 | 6.2 | 4.7 | ● |
| TLLA-73AA-□□-R1□□-□ | A(Soft Orange) | - | - | 260 | 0.2 | 500000 | 6.5 | 4.7 | ● |
