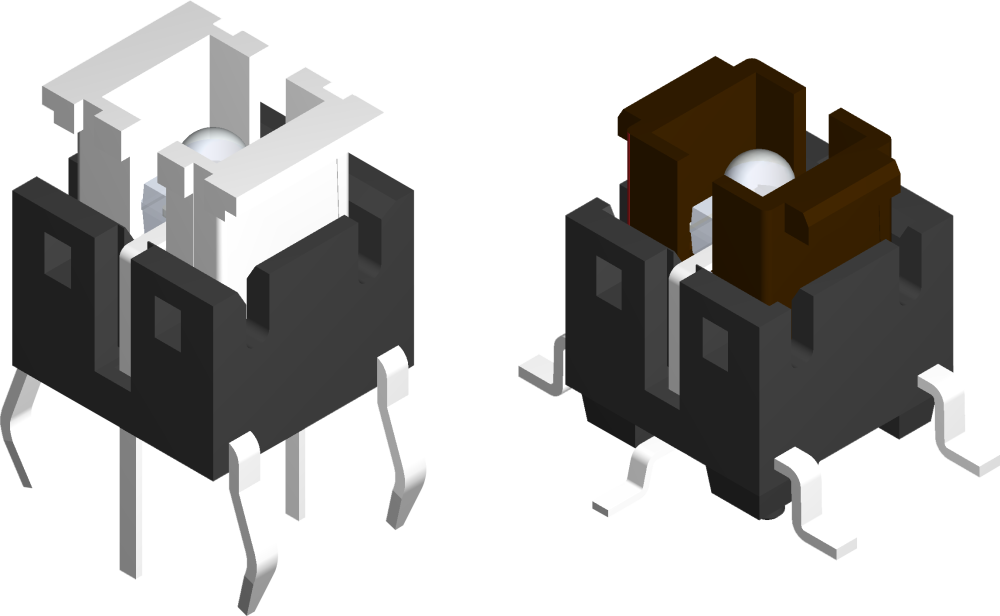

TL(L)(M)-6

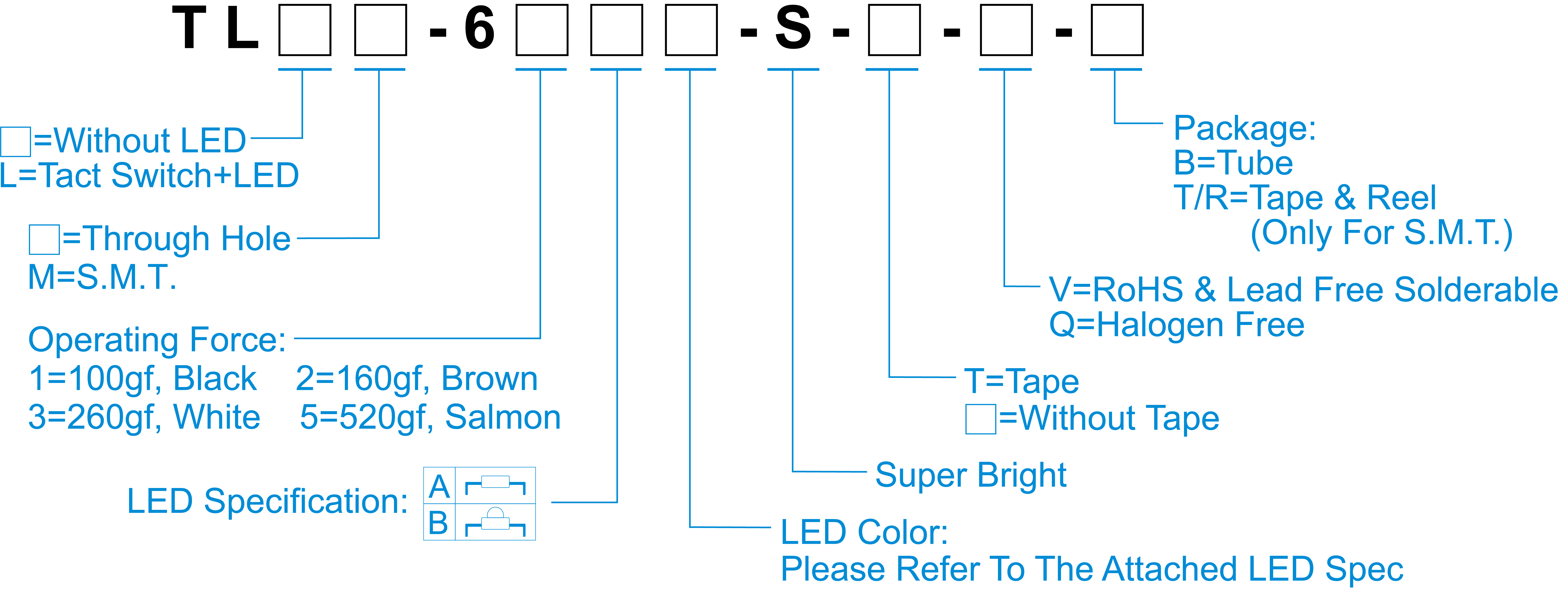

How to Order

Specification

Contact Rating 50mA, 12V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 100V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 100±50gf (TL(L)-61), 160±50gf (TL(L)-62), 260±50gf (TL(L)-63), 520±50gf (TL(L)-65)
Travel 0.2mm
Operating Life 200,000 cycles for 520/260gf, 500,000 cycles for 160/100gf
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

TL(L)(M)-6

Download Directory
料號 LED 1 LED color 2 Cap color Stroke (mm) Life cycles Cap(Ø) Cap Printing
TL-61-V - - - 100 0.2 500000 - - -
TL-62-V - - - 160 0.2 500000 - - -
TL-63-V - - - 260 0.2 500000 - - -
TL-65-V - - - 520 0.2 500000 - - -
TLL-61AA-S-T-V A(Soft Orange) - - 100 0.2 500000 - - -
TLL-61AO-S-T-V O(Red Orange) - - 100 0.2 500000 - - -
TLL-61AR-S-T-V R(Red) - - 100 0.2 500000 - - -
TLL-61AW-S-T-V W(Cold White) - - 100 0.2 500000 - - -
TLL-62AB-S-T-V B(Blue) - - 160 0.2 500000 - - -
TLL-62APG-S-T-V PG(Pure Green) - - 160 0.2 500000 - - -
