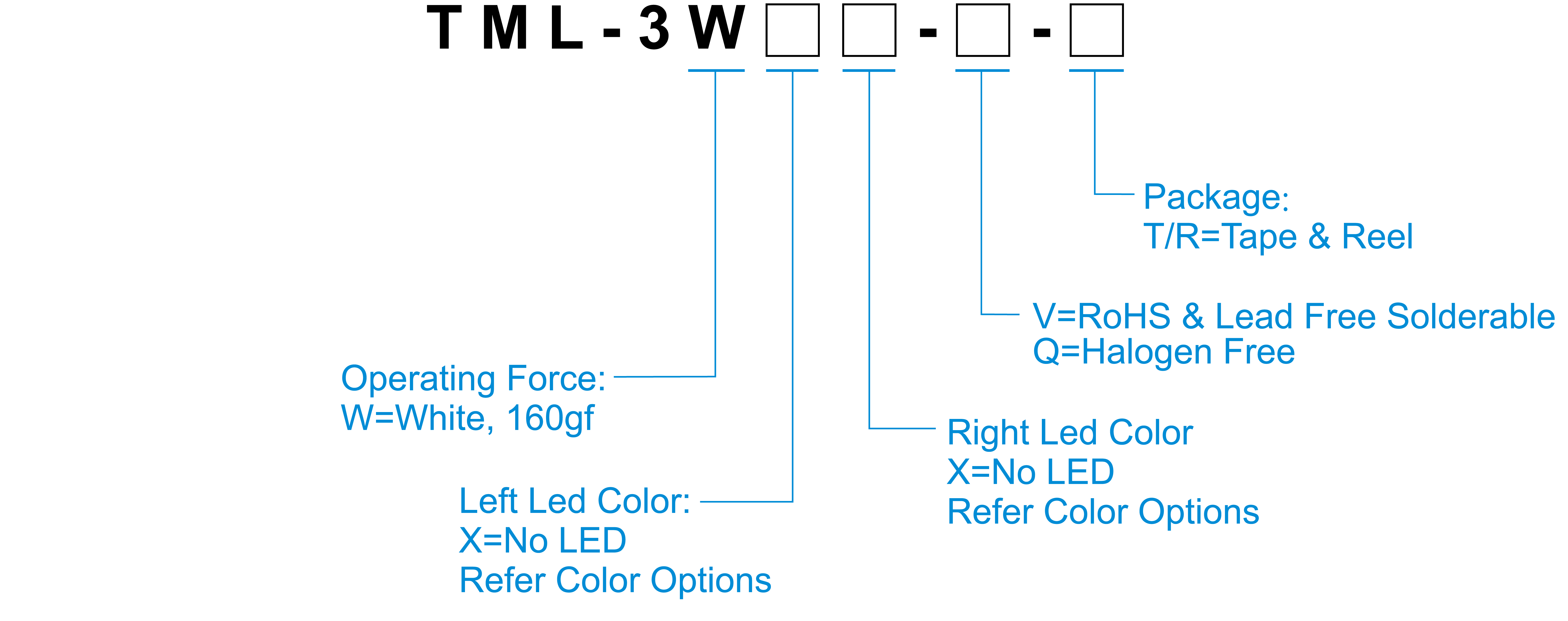

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±80/-30gf |
| Travel | 0.2mm |
| Operating Life | 50,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

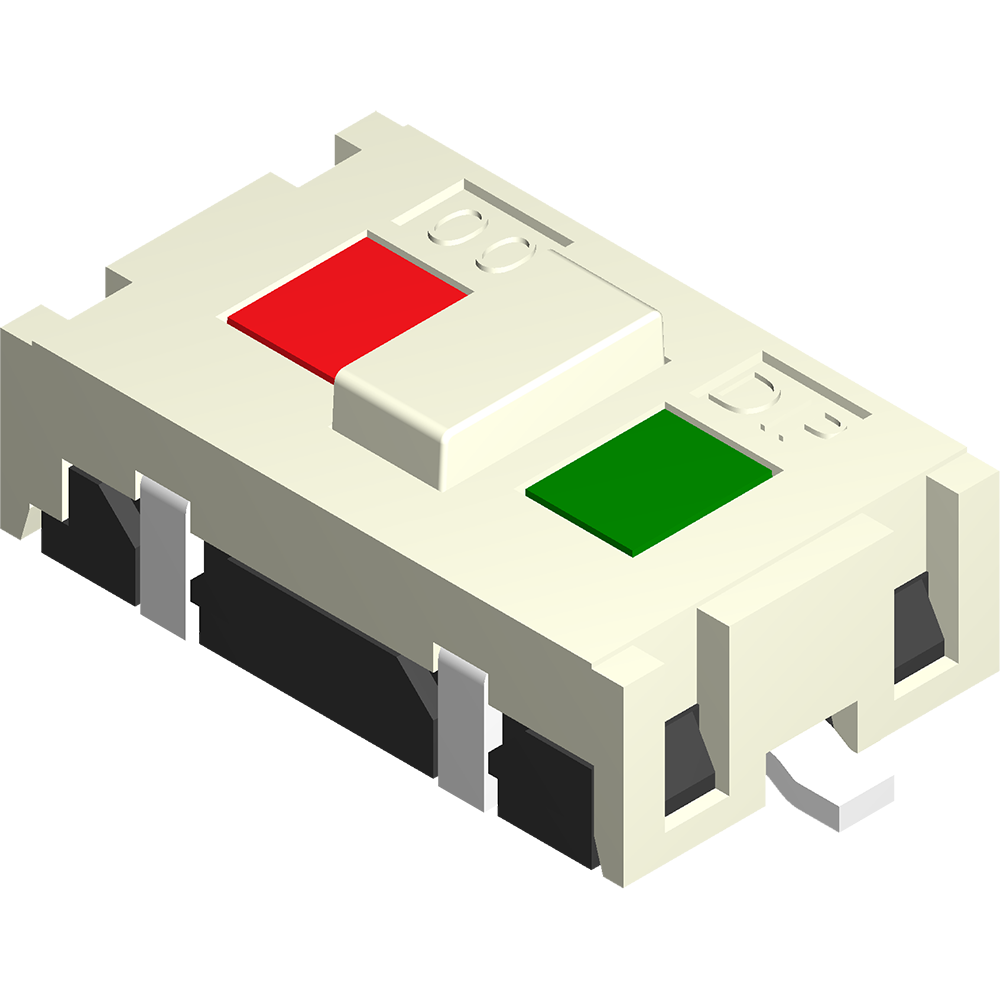

TML-3
Download Directory| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| TML-3WXX-□ | - | - | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WXB-□ | - | B(Blue) | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WXG-□ | - | G(Yellow Green) | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WXO-□ | - | O(Yellow) | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WXA-□ | - | A(Soft Orange) | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WXR-□ | - | R(Red) | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WXW-□ | - | W(Cold White) | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WBX-□ | B(Blue) | - | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WGX-□ | G(Yellow Green) | - | - | 160 | 0.2 | 50000 | - | - | - |
| TML-3WOX-□ | O(Yellow) | - | - | 160 | 0.2 | 50000 | - | - | - |
