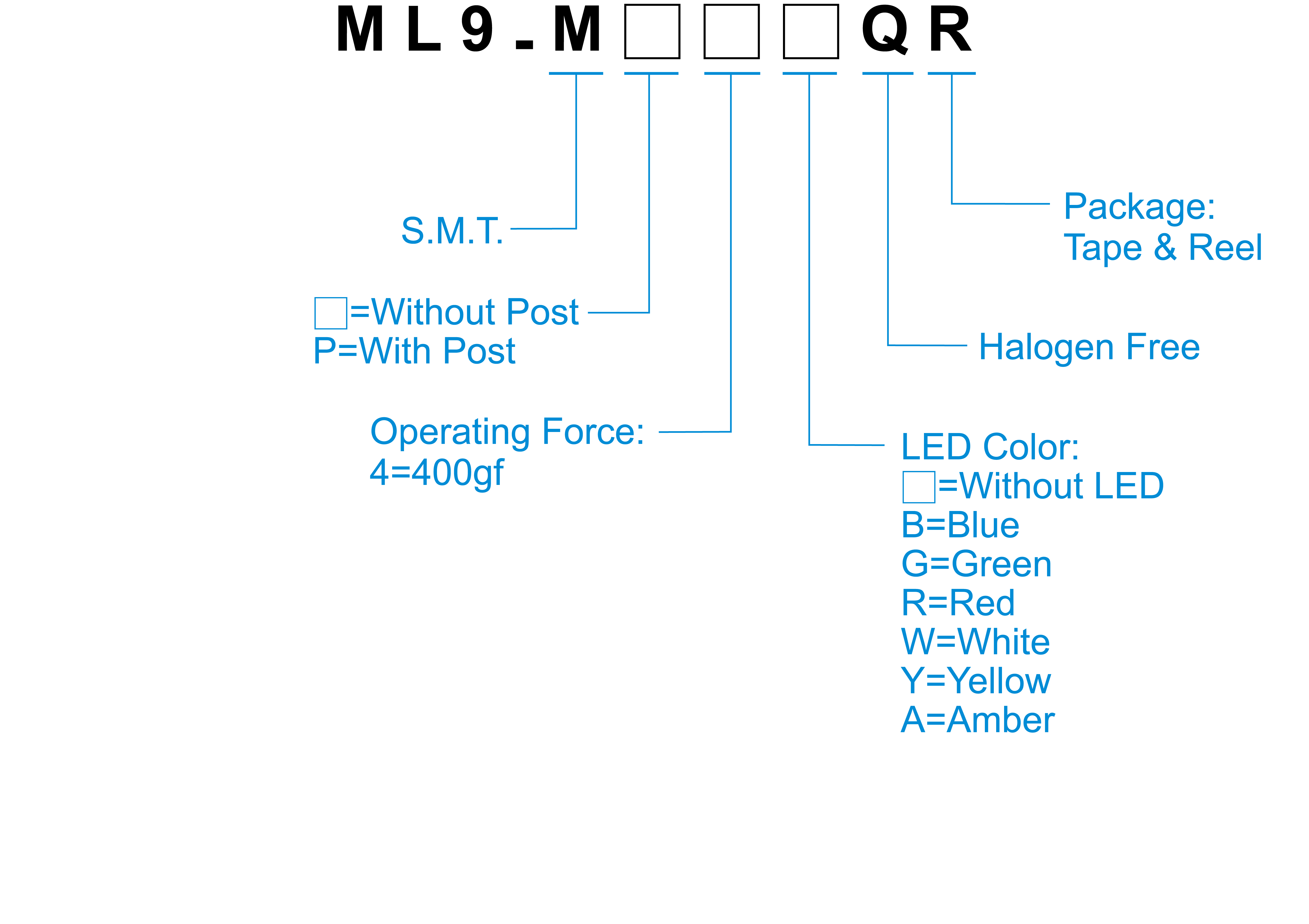

How to Order

Specification

Contact Rating 50mA, 32V DC
Contact Resistance 100mΩ Max.
Insulation Resistance 100MΩ Min. 100V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 400±100gf
Travel 0.45mm
Operating Life 300,000 cycles
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C
料號 LED 1 LED color 2 Cap color Stroke (mm) Life cycles Cap(Ø) Cap Printing
ML9-M4Q - - - 400 0.45 300000 - - -
ML9-M4BQ B(Blue) - - 400 0.45 300000 - - -
ML9-M4GQ G(Yellow Green) - - 400 0.45 300000 - - -
ML9-M4Q R(Deep Red) - - 400 0.45 300000 - - -
ML9-M4WQ W(Cold White) - - 400 0.45 300000 - - -
ML9-M4YQ Y(Yellow) - - 400 0.45 300000 - - -
ML9-M4AQ A(Soft Orange) - - 400 0.45 300000 - - -
ML9-MP4Q - - - 400 0.45 300000 - - -
ML9-MP4BQ B(Blue) - - 400 0.45 300000 - - -
ML9-MP4GQ G(Yellow Green) - - 400 0.45 300000 - - -
