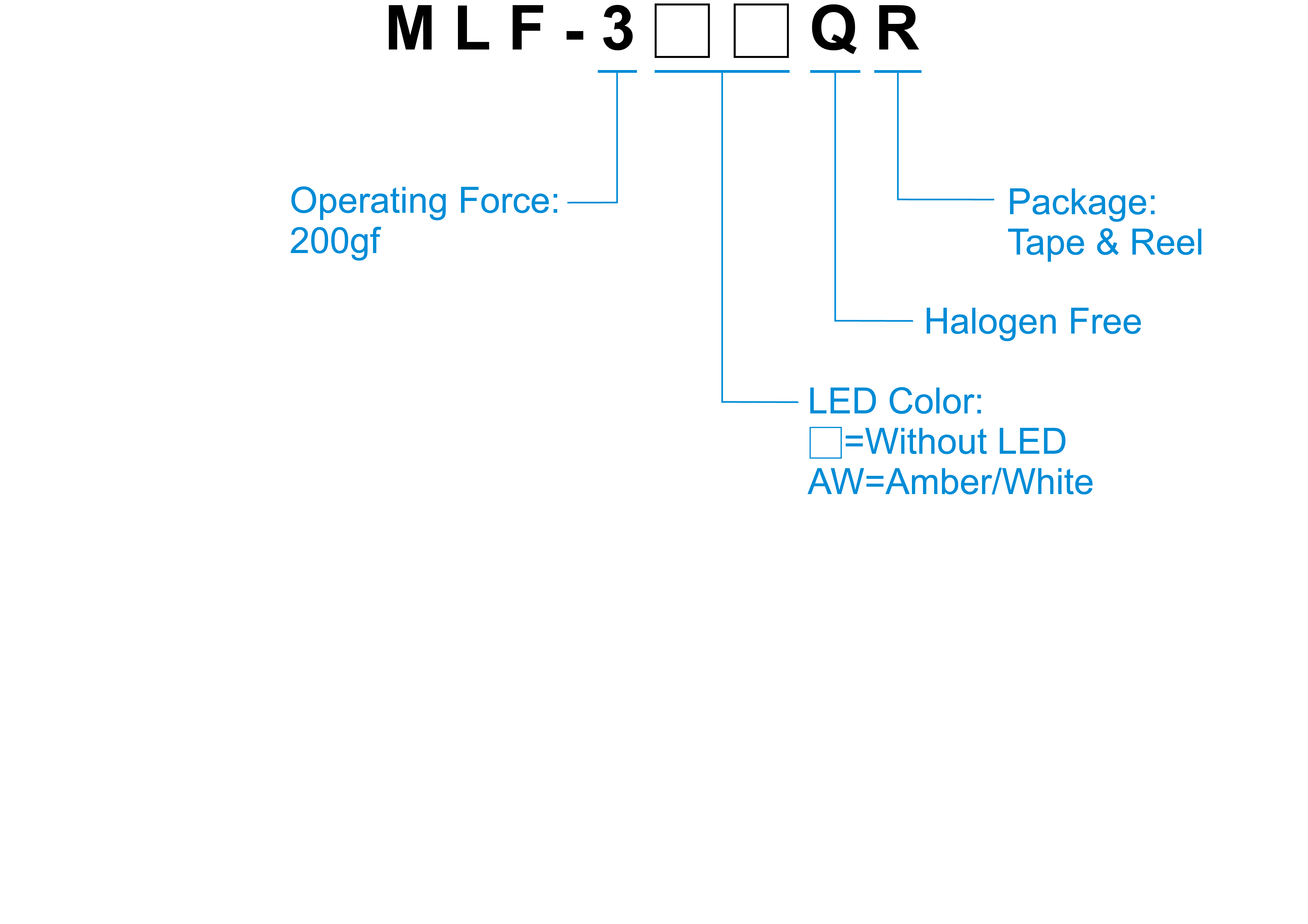

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 200±70gf |
| Travel | 1.5mm |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| MLF-3Q | - | - | - | 200 | 1.5 | 100000 | - | - | - |
| MLF-3AWQ | AW(Amber/White) | - | - | 200 | 1.5 | 100000 | - | - | - |
| MLF-3BQ | B(Blue) | - | - | 200 | 1.5 | 100000 | - | - | - |
| MLF-3PGQ | PG(Pure Green) | - | - | 200 | 1.5 | 100000 | - | - | - |
| MLF-3GQ | G(Yellow Green) | - | - | 200 | 1.5 | 100000 | - | - | - |
| MLF-3YQ | Y(Yellow) | - | - | 200 | 1.5 | 100000 | - | - | - |
| MLF-3AQ | A(Soft Orange) | - | - | 200 | 1.5 | 100000 | - | - | - |
| MLF-3Q | R(Deep Red) | - | - | 200 | 1.5 | 100000 | - | - | - |
| MLF-3WQ | W(Cold White) | - | - | 200 | 1.5 | 100000 | - | - | - |
