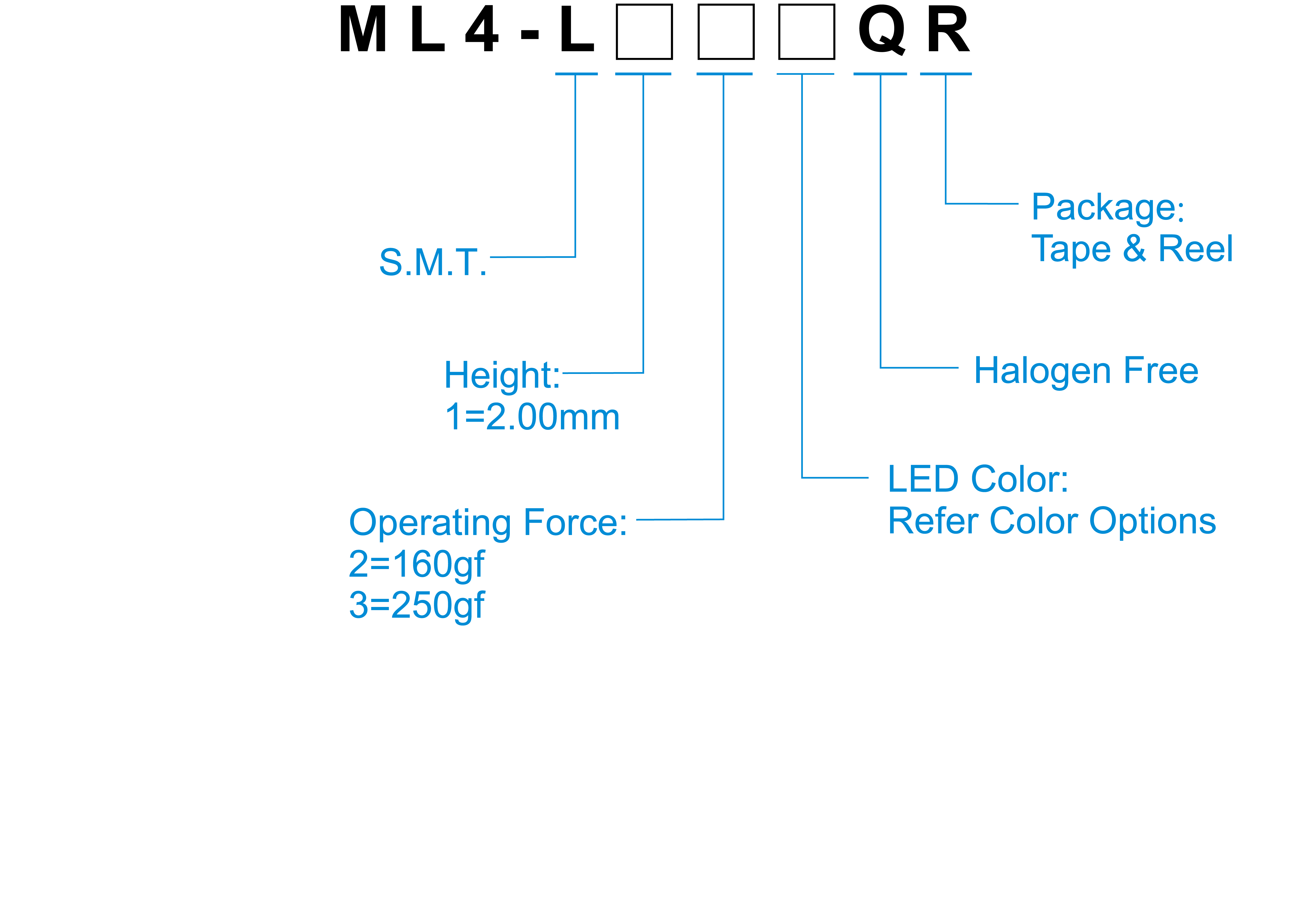

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf / 250±50gf |
| Travel | 0.25mm |
| Operating Life | 1,000,000 cycles for 160gf, 100,000 cycles for 250gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| ML4-L12Q | - | - | - | 160 | 0.25 | 1000000 | - | - | - |
| ML4-L13Q | - | - | - | 250 | 0.25 | 100000 | - | - | - |
| ML4-L12BQ | B(Blue) | - | - | 160 | 0.25 | 1000000 | - | - | - |
| ML4-L13BQ | B(Blue) | - | - | 250 | 0.25 | 100000 | - | - | - |
| ML4-L12GQ | G(Green) | - | - | 160 | 0.25 | 1000000 | - | - | - |
| ML4-L13GQ | G(Green) | - | - | 250 | 0.25 | 100000 | - | - | - |
| ML4-L12Q | R(Red) | - | - | 160 | 0.25 | 1000000 | - | - | - |
| ML4-L13Q | R(Red) | - | - | 250 | 0.25 | 100000 | - | - | - |
| ML4-L12WQ | W(Cold White) | - | - | 160 | 0.25 | 1000000 | - | - | - |
| ML4-L13WQ | W(Cold White) | - | - | 250 | 0.25 | 100000 | - | - | - |
