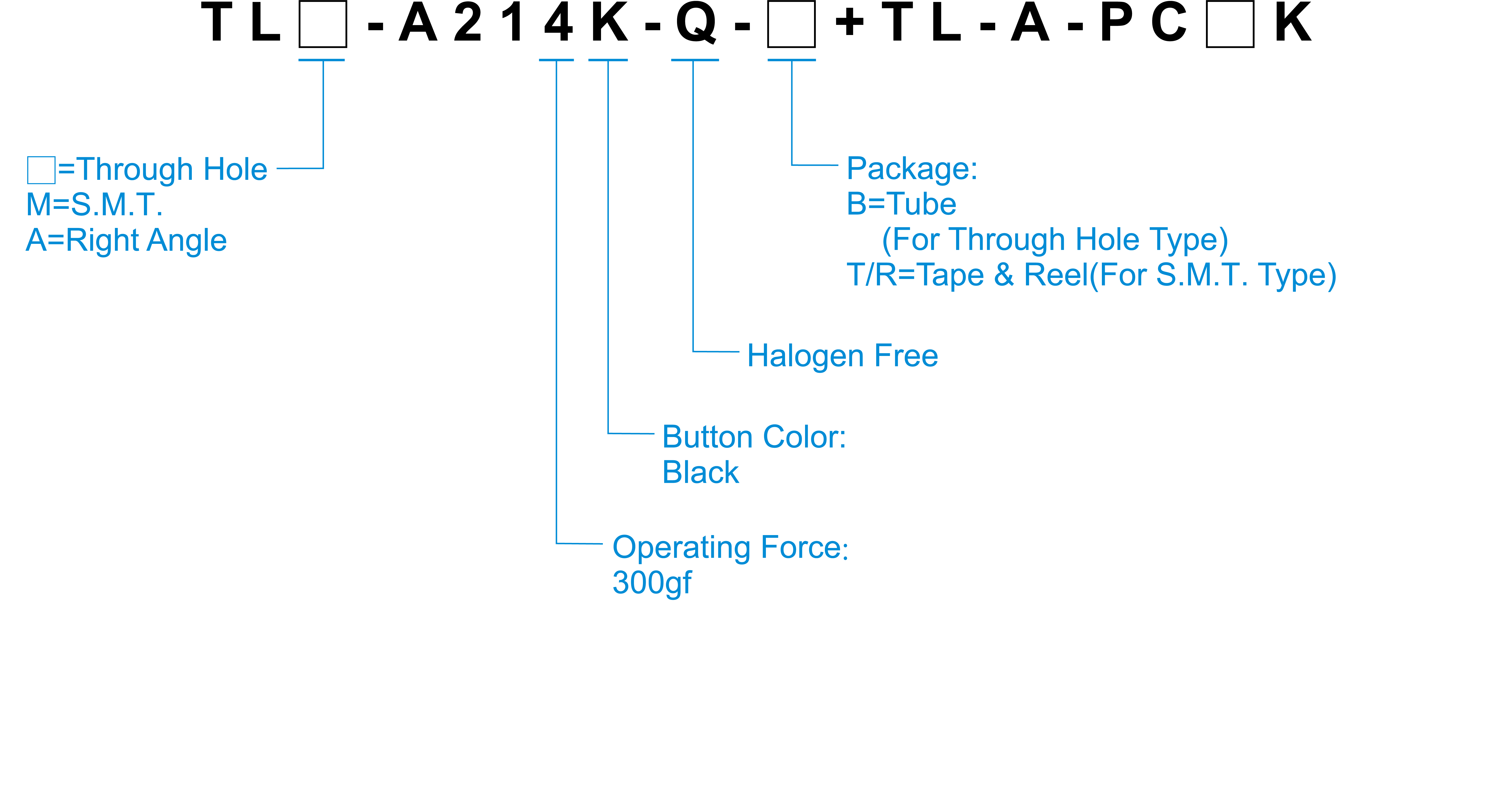

How to Order
Specification
| Contact Rating | 0.5~50mA, 24V DC |
|---|---|
| Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 10MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 300±75gf |
| Travel | 1mm |
| Operating Life | 10,000,000 cycles |
| Operating Temp. | -40°C~+160°C |
| Storage Temp. | -40°C~+160°C |

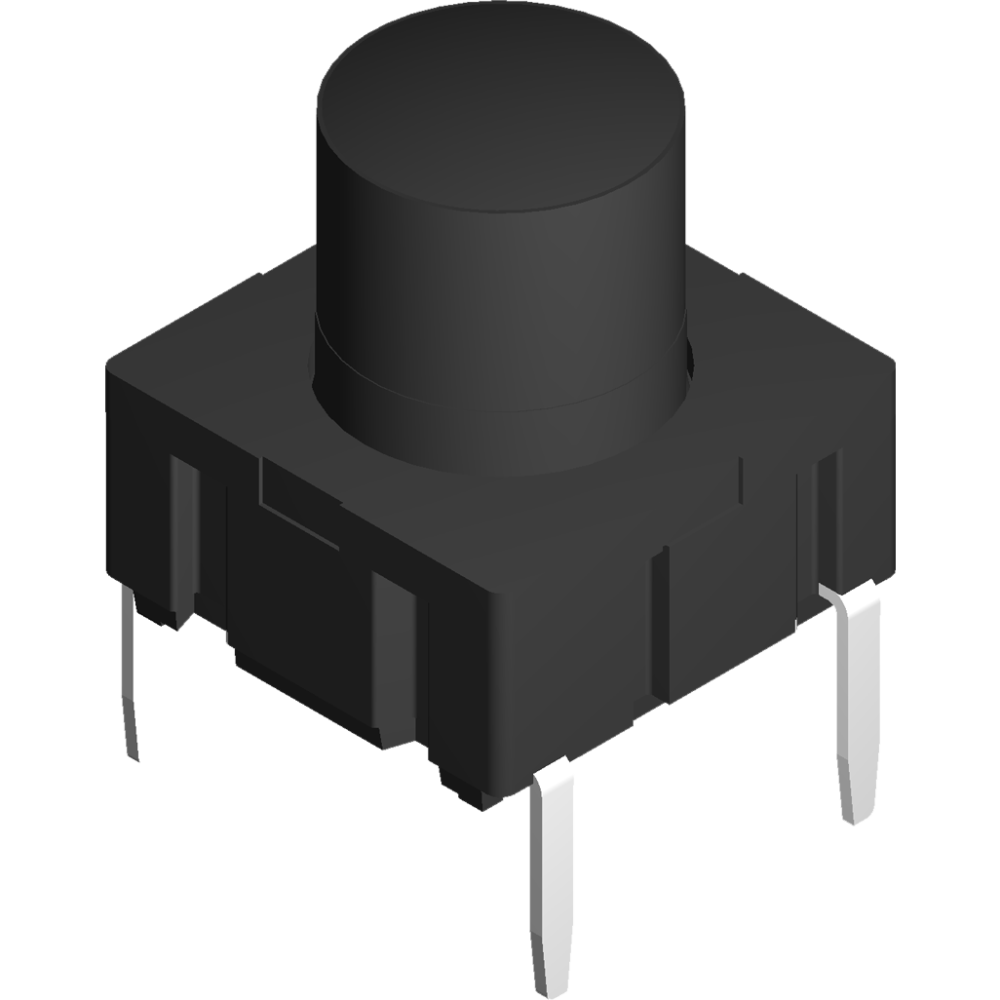

TL( )-A2
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| TL-A214K-Q+TL-A-PC1K | Vertical Push | 8 | 300 | 1 | 10000000 | ● |
| TLM-A214K-Q+TL-A-PC1K | Vertical Push | 8 | 300 | 1 | 10000000 | ● |
| TLA-A214K-Q+TL-A-PC1K | Side Push | 8 | 300 | 1 | 10000000 | ● |
| TL-A214K-Q+TL-A-PC2K | Vertical Push | 9.5 | 300 | 1 | 10000000 | ● |
| TLM-A214K-Q+TL-A-PC2K | Vertical Push | 9.5 | 300 | 1 | 10000000 | ● |
| TLA-A214K-Q+TL-A-PC2K | Side Push | 9.5 | 300 | 1 | 10000000 | ● |
| TL-A214K-Q+TL-A-PC3K | Vertical Push | 10.4 | 300 | 1 | 10000000 | ● |
| TLM-A214K-Q+TL-A-PC3K | Vertical Push | 10.4 | 300 | 1 | 10000000 | ● |
| TLA-A214K-Q+TL-A-PC3K | Side Push | 10.4 | 300 | 1 | 10000000 | ● |
| TL-A214K-Q+TL-A-PC4K | Vertical Push | 11 | 300 | 1 | 10000000 | ● |
