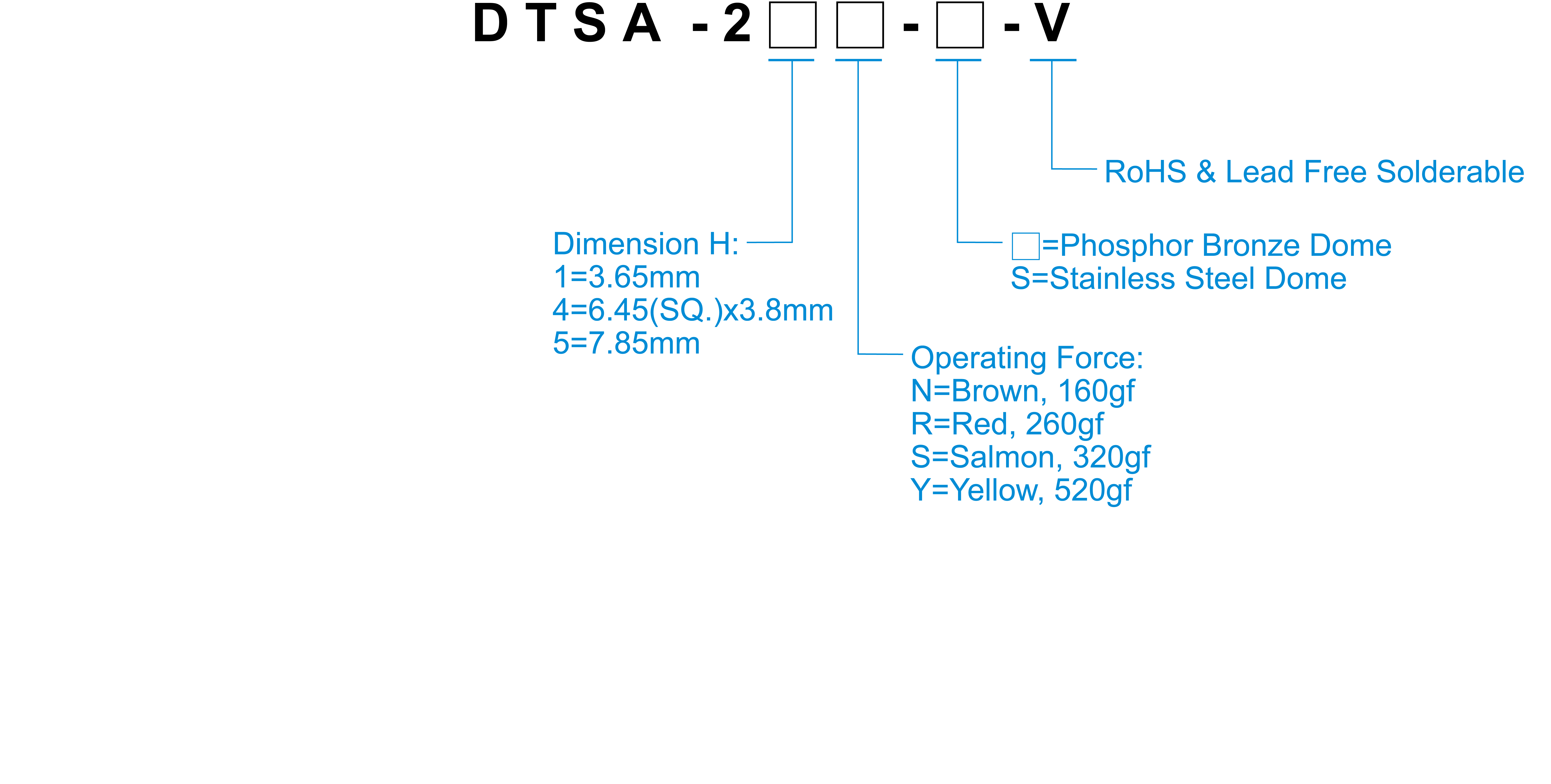

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf, Brown(N) 260±50gf, Red(R) 320±80gf, Salmon(S) 520±130gf, Yellow(Y) |
| Travel | 0.35mm |
| Operating Life | Phosphor Bronze Dome 100,000 cycles for 520/320/260gf 200,000 cycles for 160gf Stainless Steel Dome 300,000 cycles for 520/320gf 500,000 cycles for 260gf 1,000,000 cycles for 160gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

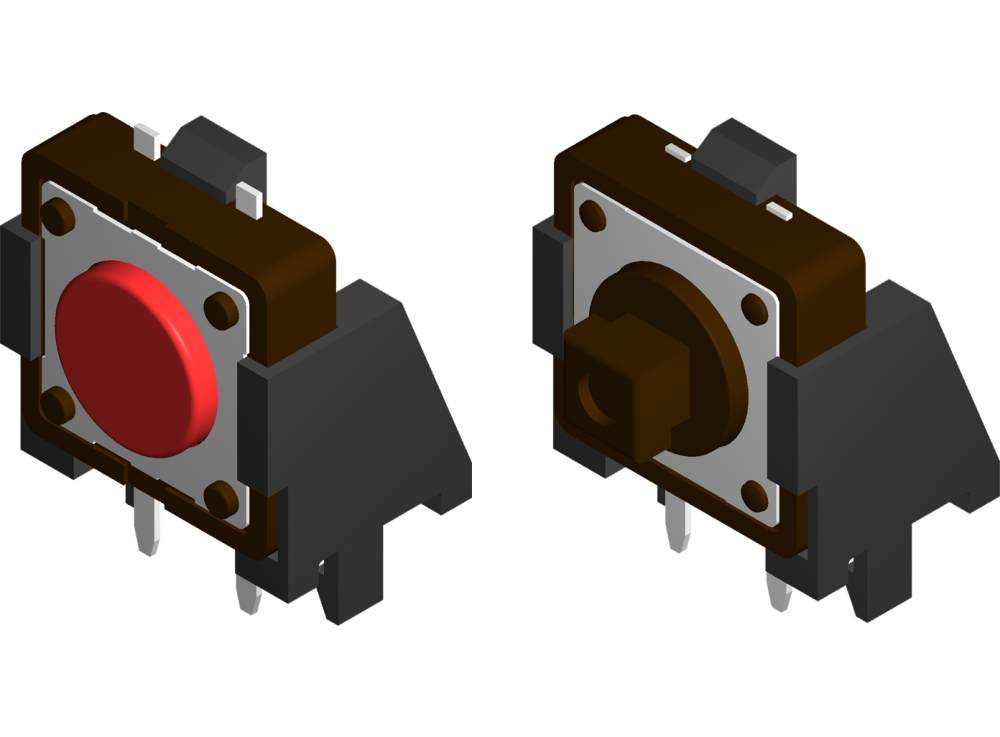

DTSA-2
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| DTSA-21N-V | Side Push | 3.65 | 160 | 0.35 | 200000 | - |
| DTSA-21N-S-V | Side Push | 3.65 | 160 | 0.35 | 1000000 | - |
| DTSA-21R-V | Side Push | 3.65 | 260 | 0.35 | 200000 | - |
| DTSA-21R-S-V | Side Push | 3.65 | 260 | 0.35 | 1000000 | - |
| DTSA-21S-V | Side Push | 3.65 | 320 | 0.35 | 200000 | - |
| DTSA-21S-S-V | Side Push | 3.65 | 320 | 0.35 | 1000000 | - |
| DTYA-21Y-V | Side Push | 3.65 | 520 | 0.35 | 200000 | - |
| DTYA-21Y-Y-V | Side Push | 3.65 | 520 | 0.35 | 1000000 | - |
| DTSA-24N-V | Side Push | 6.45(SQ.)X3.8 | 160 | 0.35 | 200000 | - |
| DTSA-24N-S-V | Side Push | 6.45(SQ.)X3.8 | 160 | 0.35 | 1000000 | - |
