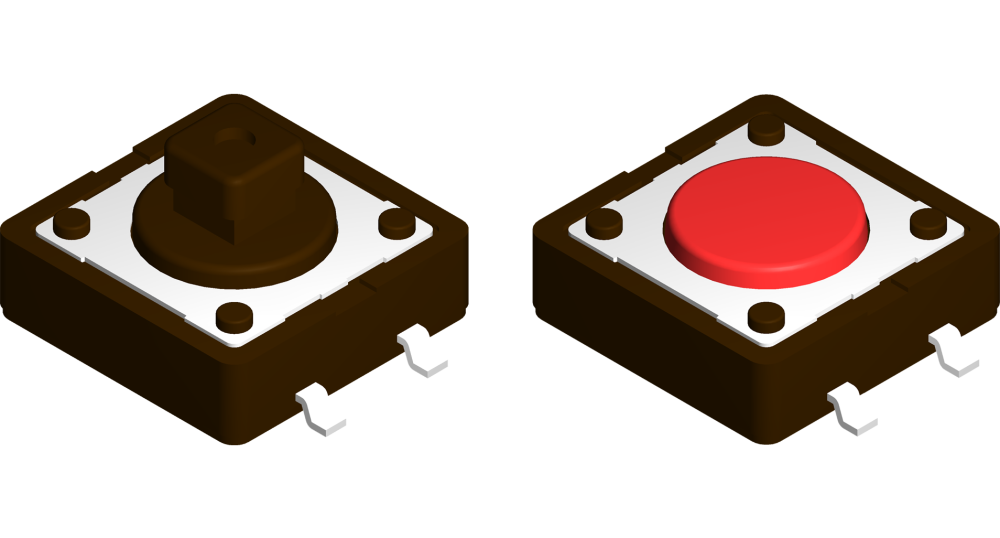

DTSM-2

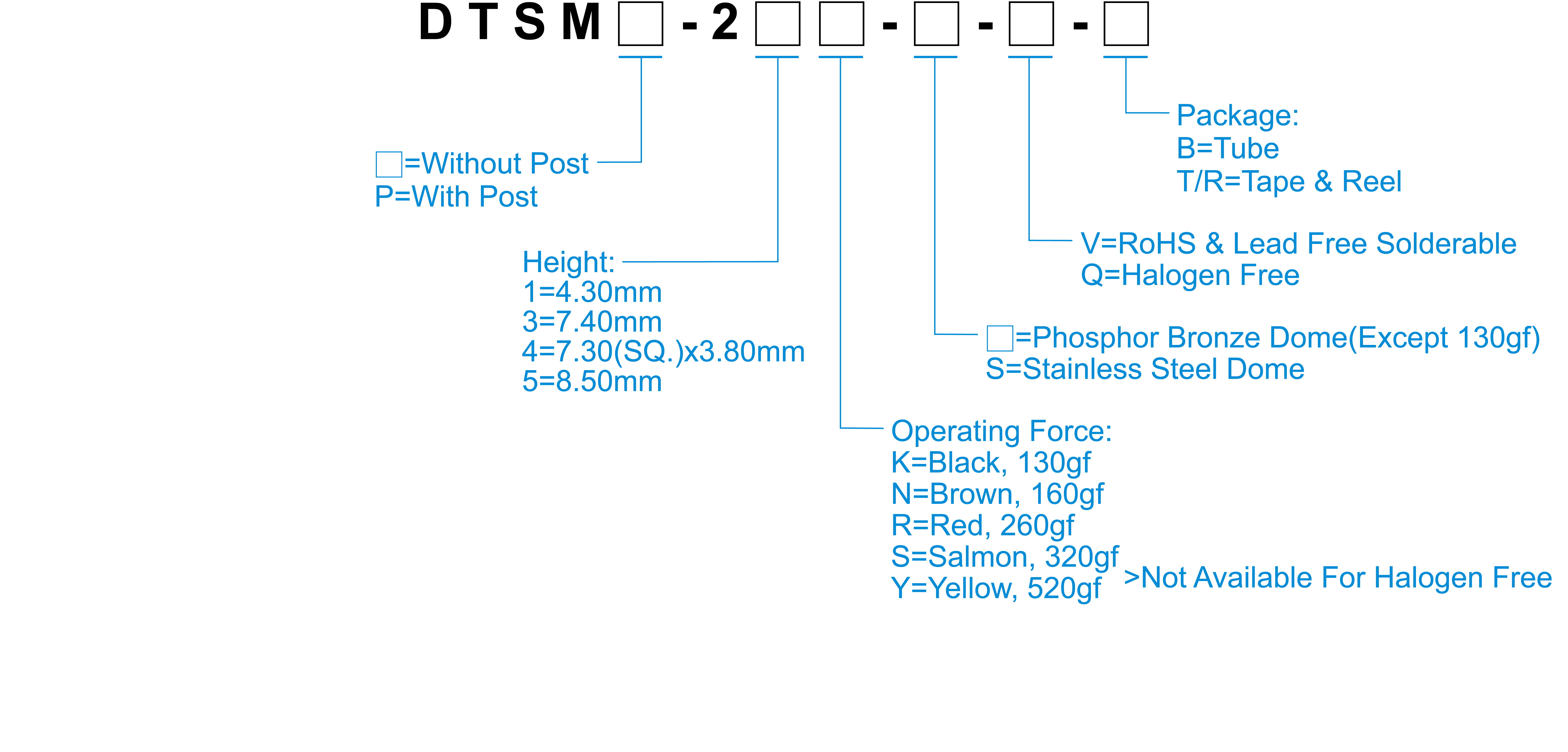

How to Order

Specification

Contact Rating 50mA, 12V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 500V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 130±50gf,Black(K) 160±50gf,Brown(N) 260±50gf,Red(R) 320±80gf,Salmon(S) 520±130gf, Yellow(Y)
Travel 0.35mm
Operating Life Phosphor Bronze Dome 100,000 cycles for 520/320/260gf 200,000 cycles for 160gf Stainless Steel Dome 300,000 cycles for 520/320gf 500,000 cycles for 260gf 1,000,000 cycles for 160gf 10,000,000 cycles for 130gf
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

DTSM-2

Download Directory
料號 Operating Direction H (mm) Force(gf) Stroke (mm) Life cycles Dustproof and Waterproof
DTSM□-21N-□ Vertical Push 4.3 160 0.35 200000 -
DTSM□-21R-□ Vertical Push 4.3 260 0.35 100000 -
DTSM□-21S-V Vertical Push 4.3 320 0.35 100000 -
DTSM□-21Y-V Vertical Push 4.3 520 0.35 100000 -
DTSM□-23N-□ Vertical Push 7.4 160 0.35 200000 -
DTSM□-23R-□ Vertical Push 7.4 260 0.35 100000 -
DTSM□-23S-V Vertical Push 7.4 320 0.35 100000 -
DTSM□-23Y-V Vertical Push 7.4 520 0.35 100000 -
DTSM□-24N-□ Vertical Push 7.3(SQ.)x3.8 160 0.35 200000 -
DTSM□-24R-□ Vertical Push 7.3(SQ.)x3.8 260 0.35 100000 -
