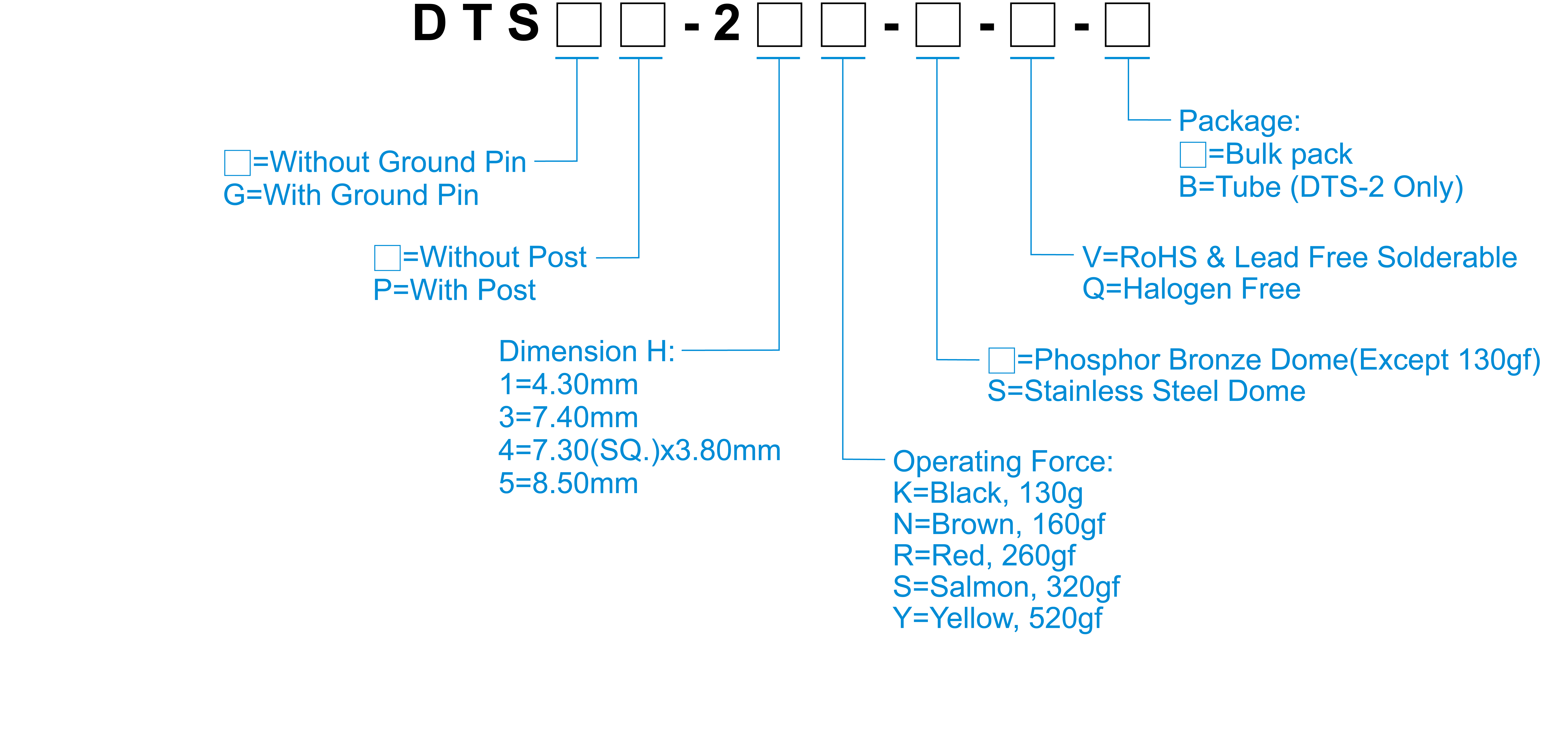

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 130±50gf,Black(K) 160±50gf,Brown(N) 260±50gf,Red(R) 320±80gf,Salmon(S) 520±130gf, Yellow(Y) |
| Travel | 0.35mm |
| Operating Life | Phosphor Bronze Dome 100,000 cycles for 520/320/260gf 200,000 cycles for 160gf Stainless Steel Dome 300,000 cycles for 520/320gf 500,000 cycles for 260gf 1,000,000 cycles for 160gf 10,000,000 cycles for 130gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

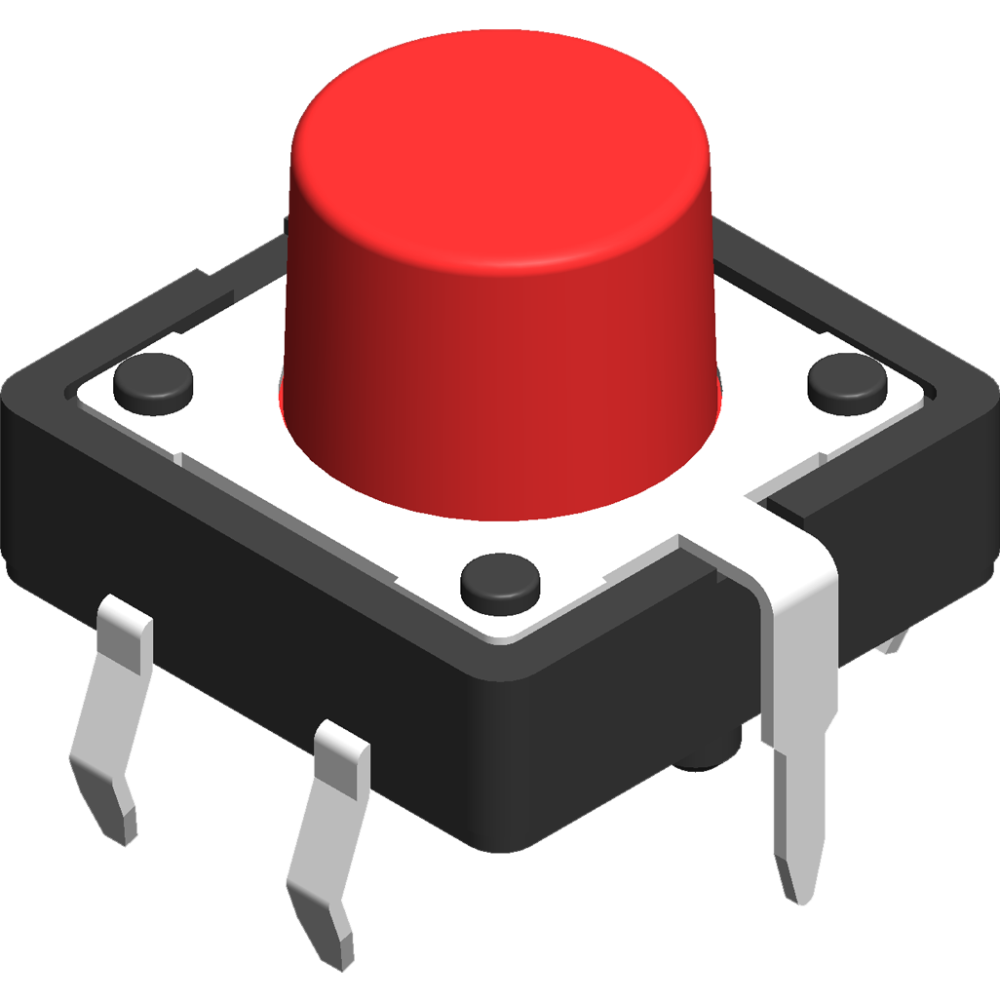

DTS(G)(P)-2
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| DTS□□-21N-□ | Vertical Push | 4.3 | 160 | 0.35 | 200000 | - |
| DTS□□-21R-□ | Vertical Push | 4.3 | 260 | 0.35 | 100000 | - |
| DTS□□-21S-□ | Vertical Push | 4.3 | 320 | 0.35 | 100000 | - |
| DTS□□-21Y-□ | Vertical Push | 4.3 | 520 | 0.35 | 100000 | - |
| DTS□□-23N-□ | Vertical Push | 7.4 | 160 | 0.35 | 200000 | - |
| DTS□□-23R-□ | Vertical Push | 7.4 | 260 | 0.35 | 100000 | - |
| DTS□□-23S-□ | Vertical Push | 7.4 | 320 | 0.35 | 100000 | - |
| DTS□□-23Y-□ | Vertical Push | 7.4 | 520 | 0.35 | 100000 | - |
| DTS□□-24N-□ | Vertical Push | 7.3(SQ.)x3.8 | 160 | 0.35 | 200000 | - |
| DTS□□-24R-□ | Vertical Push | 7.3(SQ.)x3.8 | 260 | 0.35 | 100000 | - |
