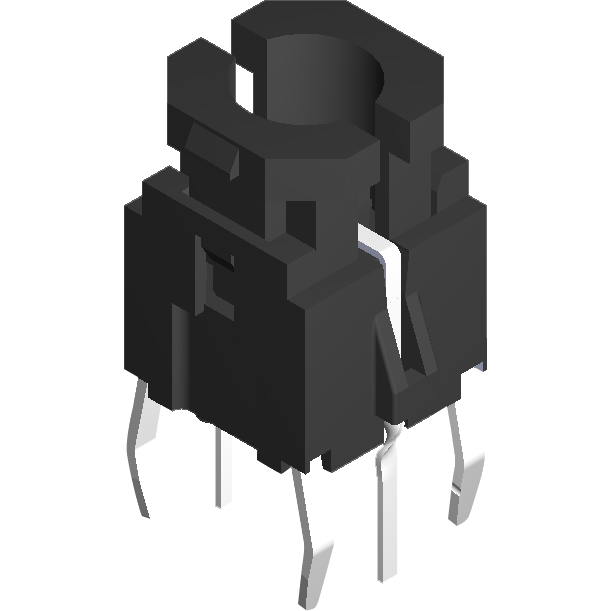

ML5

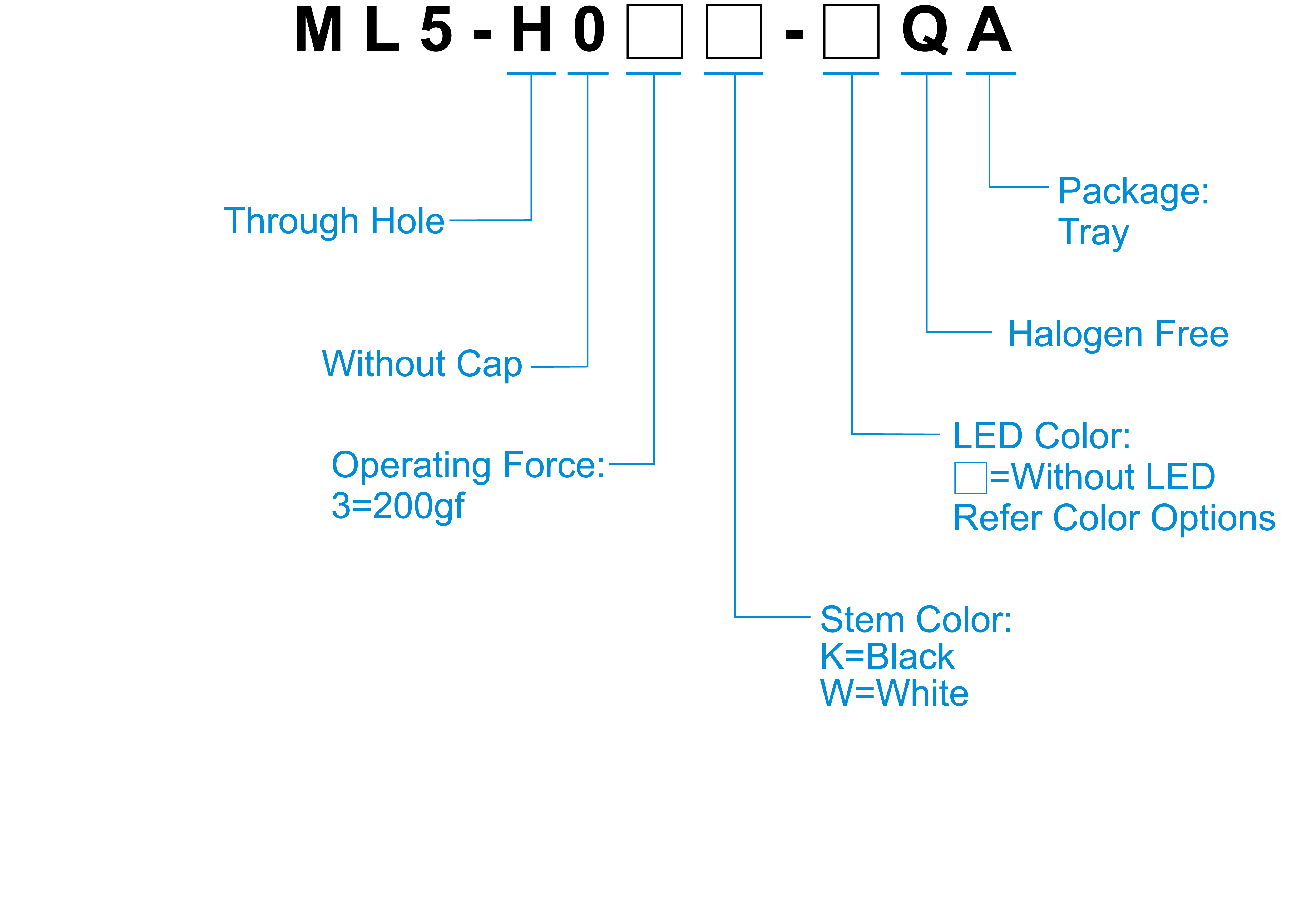

How to Order

Specification

Contact Rating 50mA, 12V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 500V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 200±70gf
Travel 1.2mm
Operating Life 50,000 cycles
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

ML5

Download Directory
料號 LED 1 LED color 2 Cap color Stroke (mm) Life cycles Cap(Ø) Cap Printing
ML5-H03□-Q - - - 200 1.2 50000 - - -
ML5-H03□-BQ B(Blue) - - 200 1.2 50000 - - -
ML5-H03□-PGQ PG(Pure Green) - - 200 1.2 50000 - - -
ML5-H03□-GQ G(Yellow Green) - - 200 1.2 50000 - - -
ML5-H03□-YQ Y(Yellow) - - 200 1.2 50000 - - -
ML5-H03□-Q A(Soft Orange) - - 200 1.2 50000 - - -
ML5-H03□-RQ R(Deep Red) - - 200 1.2 50000 - - -
ML5-H03□-WQ W(Cold White) - - 200 1.2 50000 - - -
