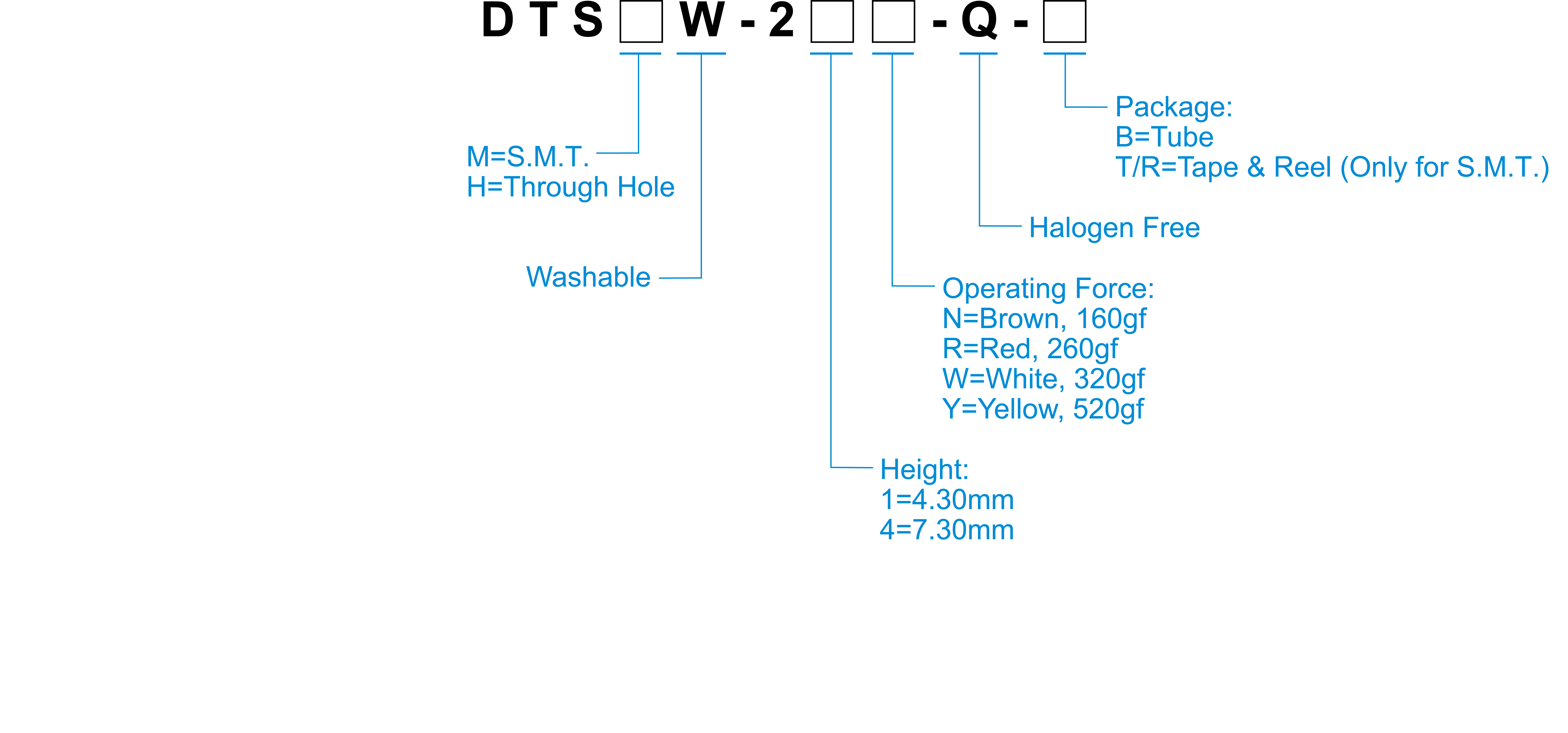

How to Order
Specification
| Contact Rating | 50mA, 24V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 250V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf,Brown(N) / 260±50gf,Red(Ｒ) / 320±80gf,White(W) / 520±130gf,Yellow(Y) |
| Travel | 0.4mm |
| Operating Life | 300,000 cycles for 520/320gf / 1,000,000 cycles for 260/160gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

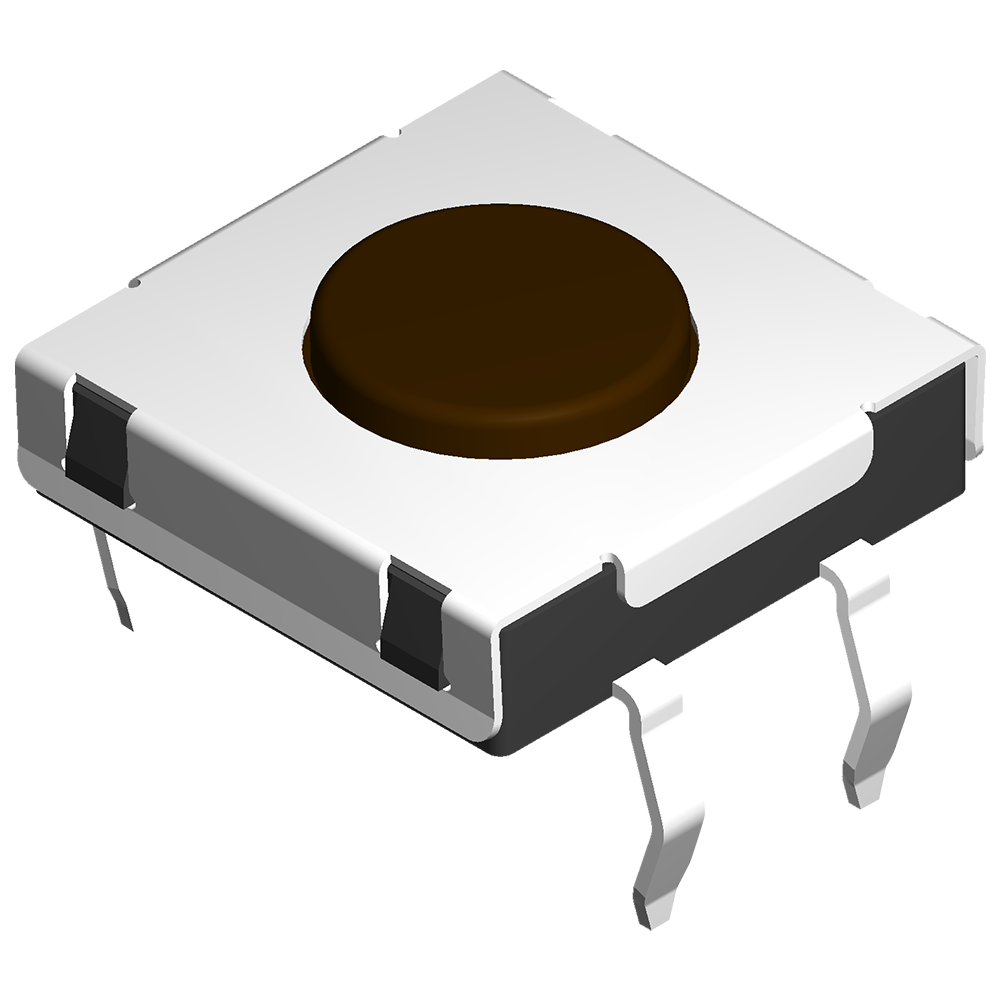

DTS( )W-2
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| DTSMW-21N-Q | Vertical Push | 4.3 | 160 | 0.4 | 1000000 | ● |
| DTSMW-21R-Q | Vertical Push | 4.3 | 260 | 0.4 | 1000000 | ● |
| DTSMW-21W-Q | Vertical Push | 4.3 | 320 | 0.4 | 300000 | ● |
| DTSMW-21Y-Q | Vertical Push | 4.3 | 520 | 0.4 | 300000 | ● |
| DTSHW-21N-Q | Vertical Push | 4.3 | 160 | 0.4 | 1000000 | ● |
| DTSHW-21R-Q | Vertical Push | 4.3 | 260 | 0.4 | 1000000 | ● |
| DTSHW-21W-Q | Vertical Push | 4.3 | 320 | 0.4 | 300000 | ● |
| DTSHW-21Y-Q | Vertical Push | 4.3 | 520 | 0.4 | 300000 | ● |
| DTSMW-24N-Q | Vertical Push | 7.3 | 160 | 0.4 | 1000000 | ● |
| DTSMW-24R-Q | Vertical Push | 7.3 | 260 | 0.4 | 1000000 | ● |
