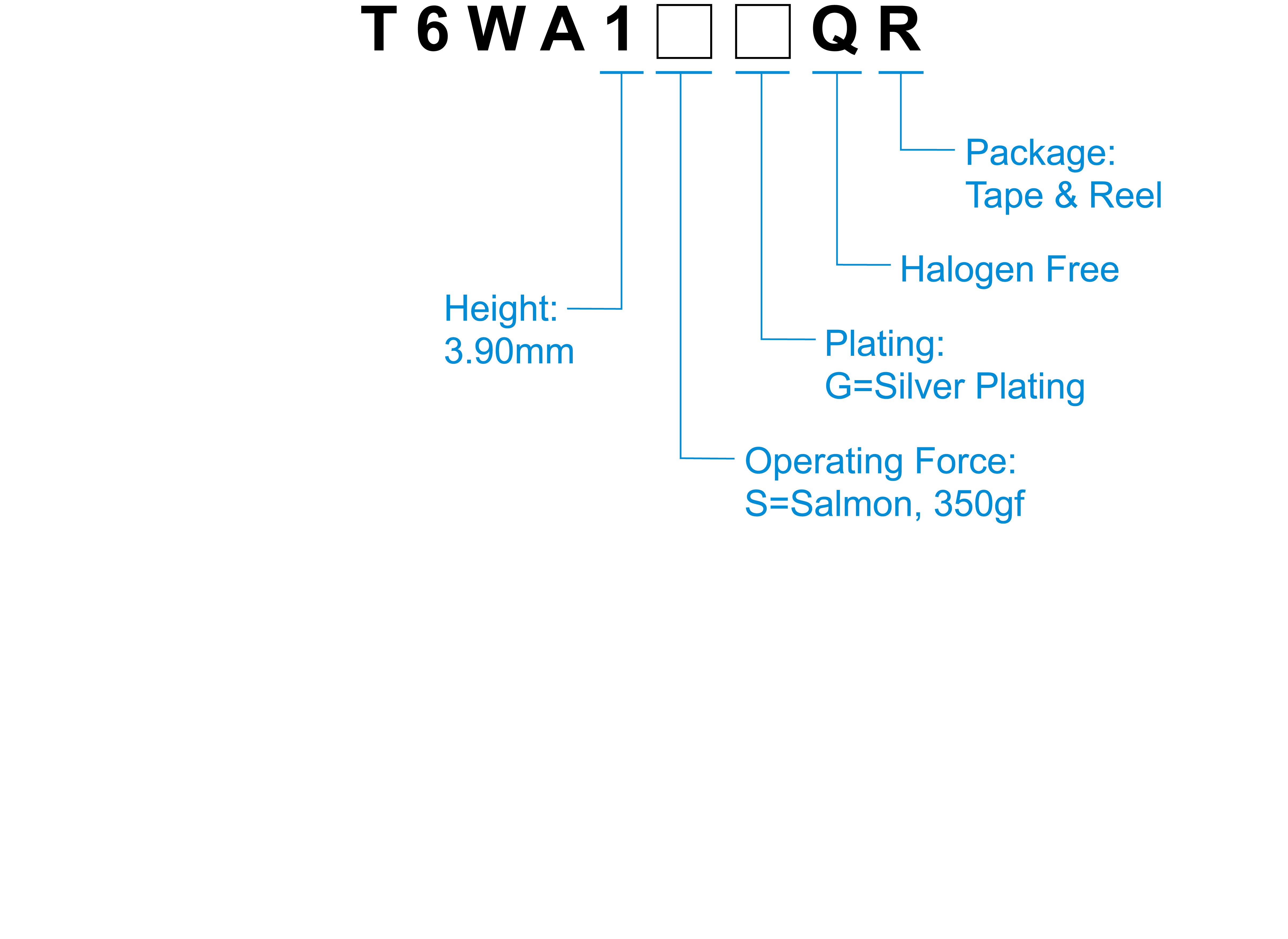

How to Order
Specification
| Contact Rating | 20mV DC~32V DC/1.0 Ma~50mA |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 350±100gf |
| Travel | 0.7mm |
| Operating Life | 300,000 cycles (350gf) |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -55°C(10 days)~+85°C(4days) |

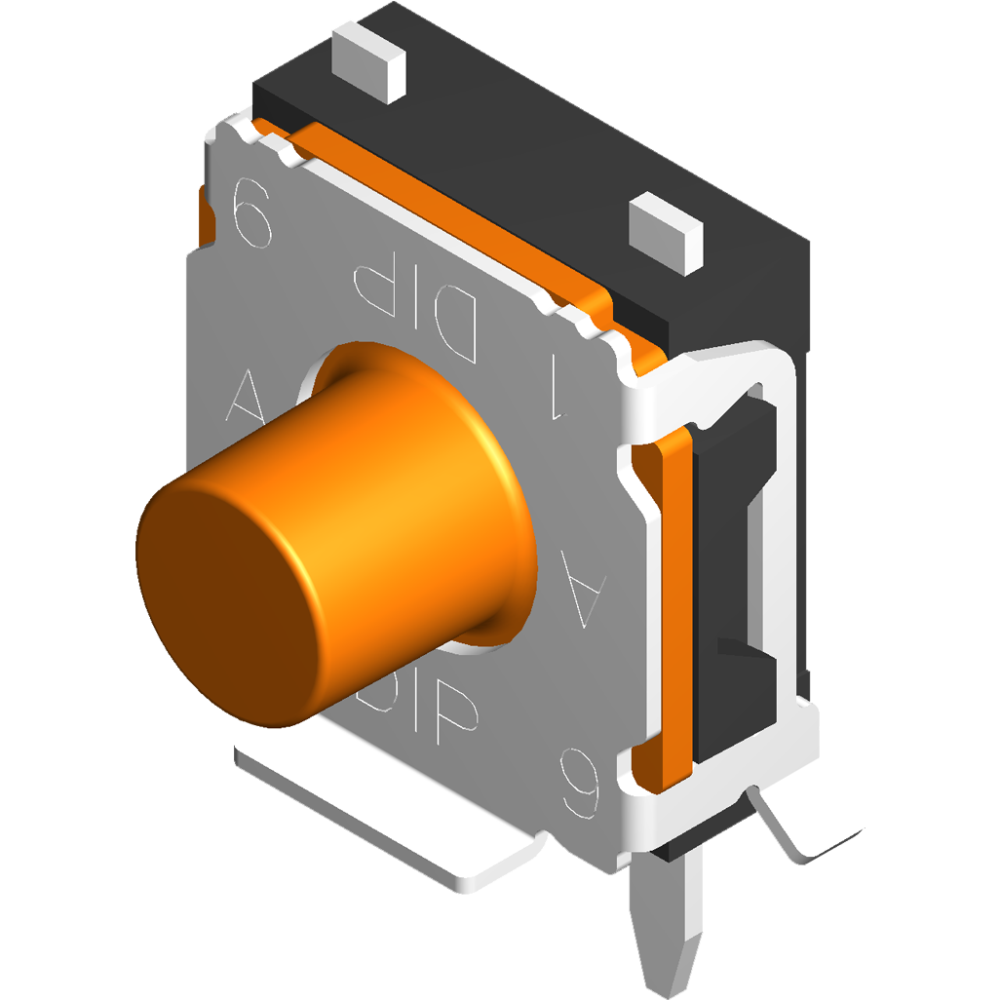

T6WA
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| T6WA1SGQ | Vertical Push | 3.9 | 350 | 0.7 | 300000 | ● |
