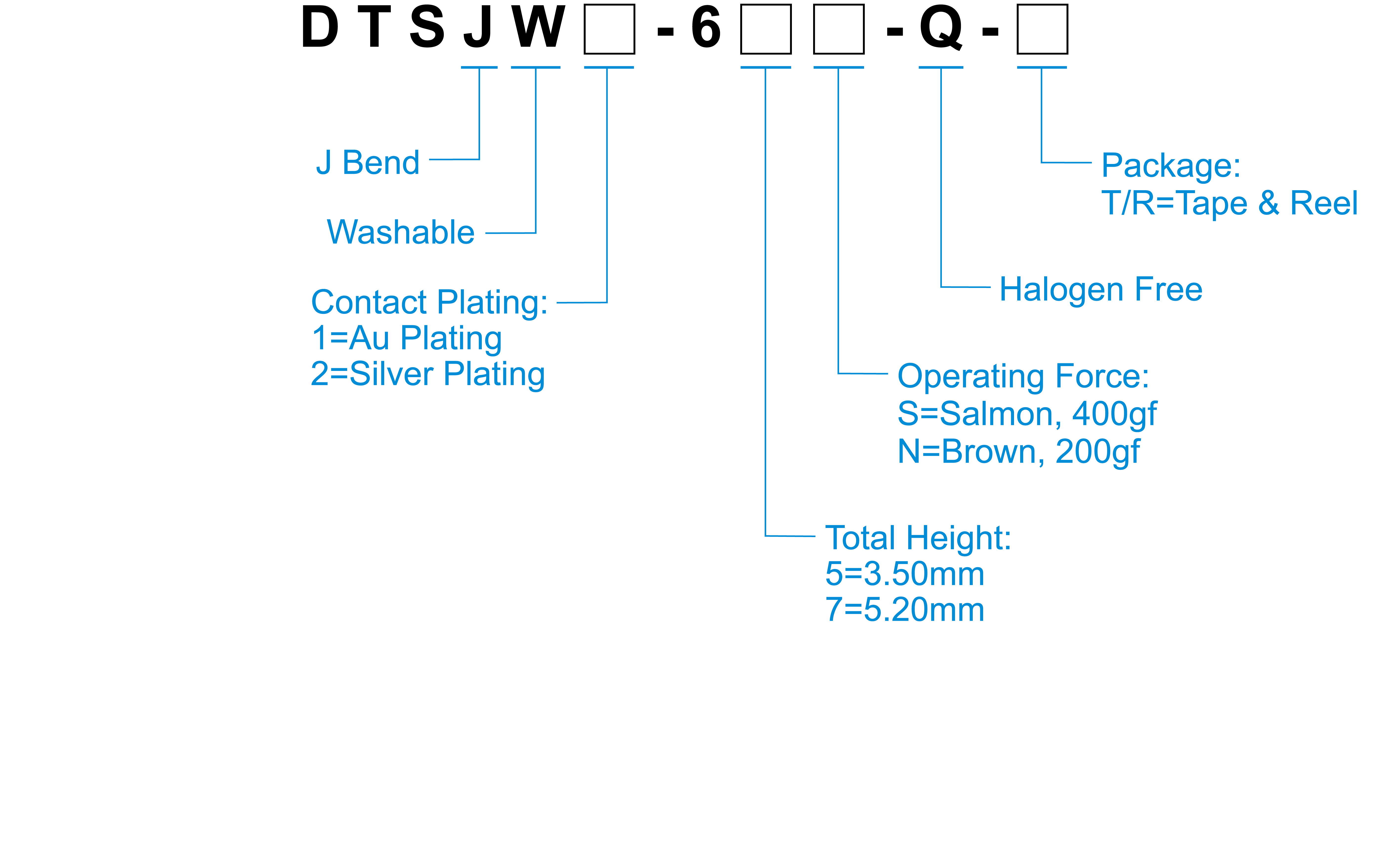

How to Order
Specification
| Contact Rating | 50mA,12V DC |
|---|---|
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | N：200±50gf, S：400±100gf |
| Travel | N：0.4mm, S：0.6mm |
| Operating Life | 300,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

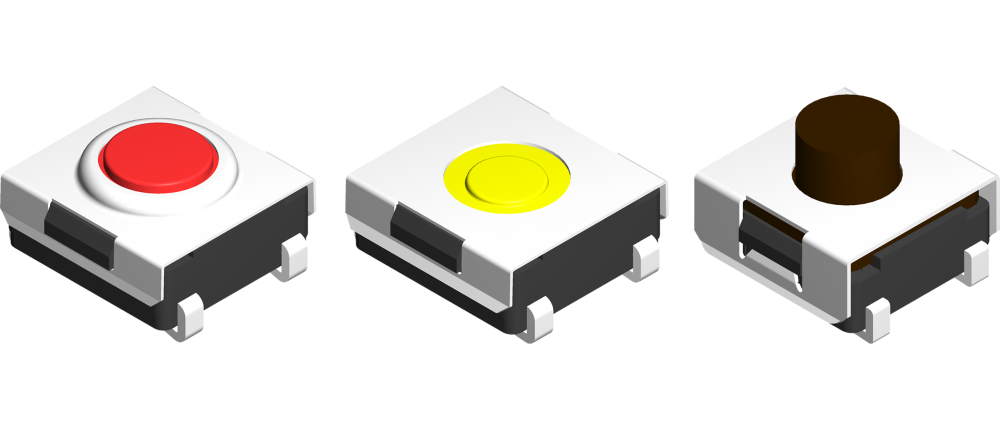

DTSJW( )-6
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| DTSJW1-65S-Q | Vertical Push | 3.5 | 400 | 0.6 | 300000 | ● |
| DTSJW1-65N-Q | Vertical Push | 3.5 | 200 | 0.4 | 300000 | ● |
| DTSJW1-67S-Q | Vertical Push | 5.2 | 400 | 0.6 | 300000 | ● |
| DTSJW1-67N-Q | Vertical Push | 5.2 | 200 | 0.4 | 300000 | ● |
| DTSJW2-65S-Q | Vertical Push | 3.5 | 400 | 0.6 | 300000 | ● |
| DTSJW2-65N-Q | Vertical Push | 3.5 | 200 | 0.4 | 300000 | ● |
| DTSJW2-67S-Q | Vertical Push | 5.2 | 400 | 0.6 | 300000 | ● |
| DTSJW2-67N-Q | Vertical Push | 5.2 | 200 | 0.4 | 300000 | ● |
