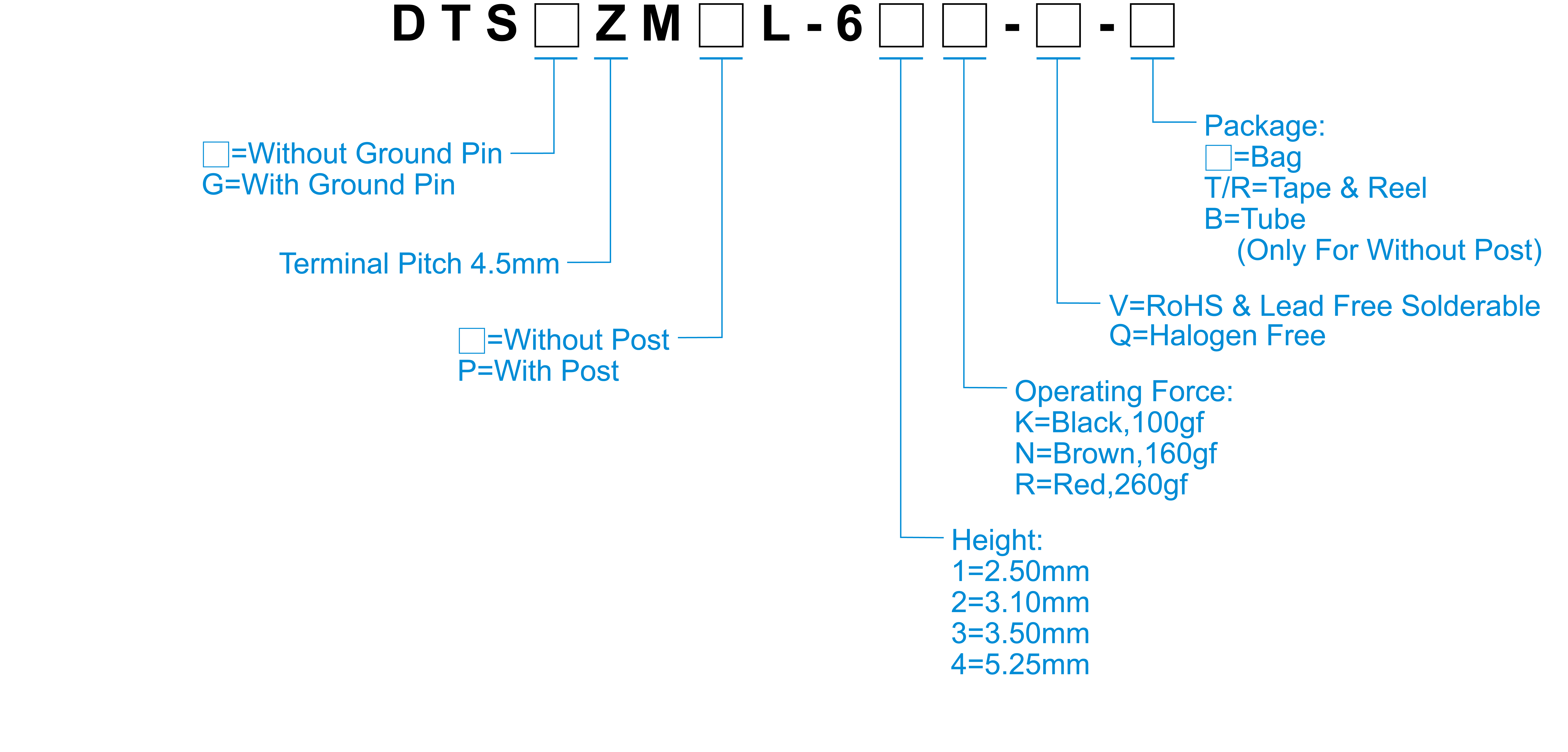

How to Order
Specification
| Contact Rating | 50mA,12V DC |
|---|---|
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 100±50gf,Black(K) 160±50gf,Brown(N) 260±50gf,Red( R) |
| Travel | 0.25mm |
| Operating Life | 100,000 cycles for 260gf 1,000,000 cycles for 160,100gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

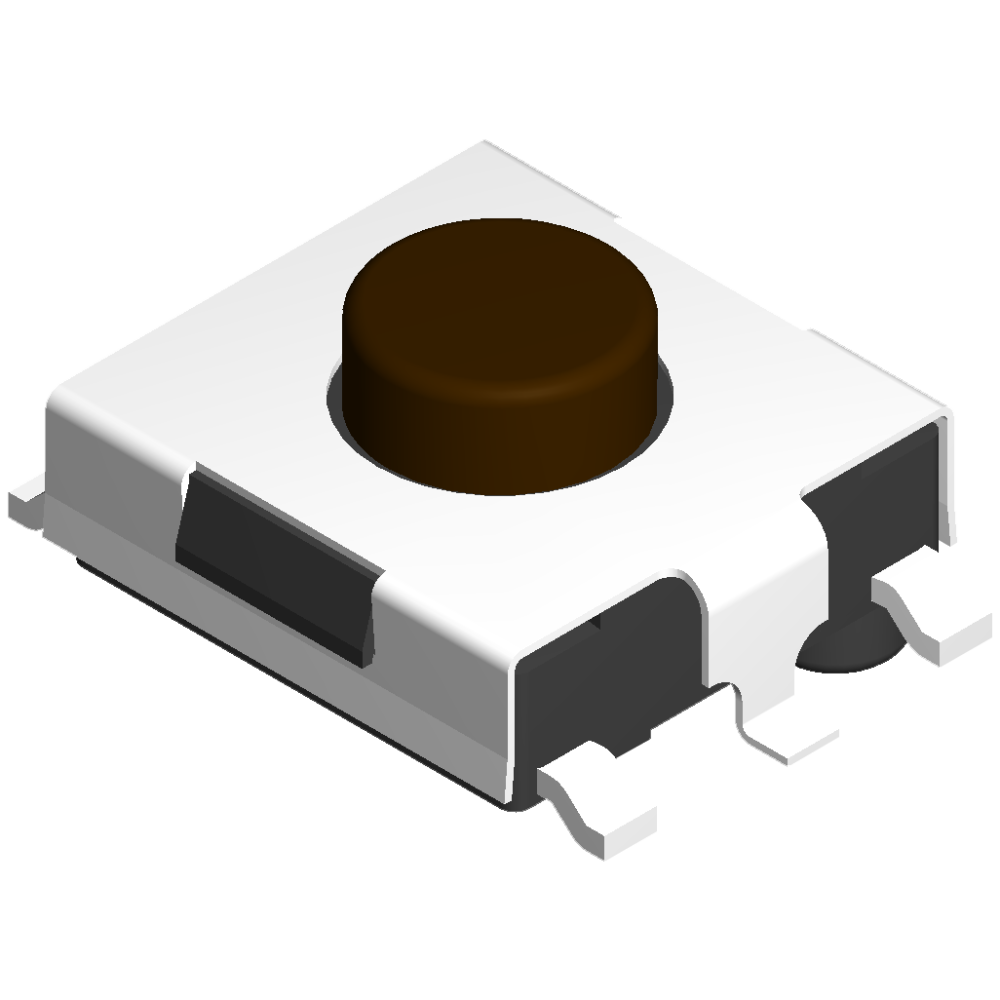

DTS(G)ZML-6
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| DTS□ZM□L-61K-□ | Vertical Push | 2.5 | 100 | 0.25 | 1000000 | - |
| DTS□ZM□L-61N-□ | Vertical Push | 2.5 | 160 | 0.25 | 1000000 | - |
| DTS□ZM□L-61R-□ | Vertical Push | 2.5 | 260 | 0.25 | 100000 | - |
| DTS□ZM□L-62K-□ | Vertical Push | 3.1 | 100 | 0.25 | 1000000 | - |
| DTS□ZM□L-62N-□ | Vertical Push | 3.1 | 160 | 0.25 | 1000000 | - |
| DTS□ZM□L-62R-□ | Vertical Push | 3.1 | 260 | 0.25 | 100000 | - |
| DTS□ZM□L-63K-□ | Vertical Push | 3.5 | 100 | 0.25 | 1000000 | - |
| DTS□ZM□L-63N-□ | Vertical Push | 3.5 | 160 | 0.25 | 1000000 | - |
| DTS□ZM□L-63R-□ | Vertical Push | 3.5 | 260 | 0.25 | 100000 | - |
| DTS□ZM□L-64K-□ | Vertical Push | 5.25 | 100 | 0.25 | 1000000 | - |
