TA3

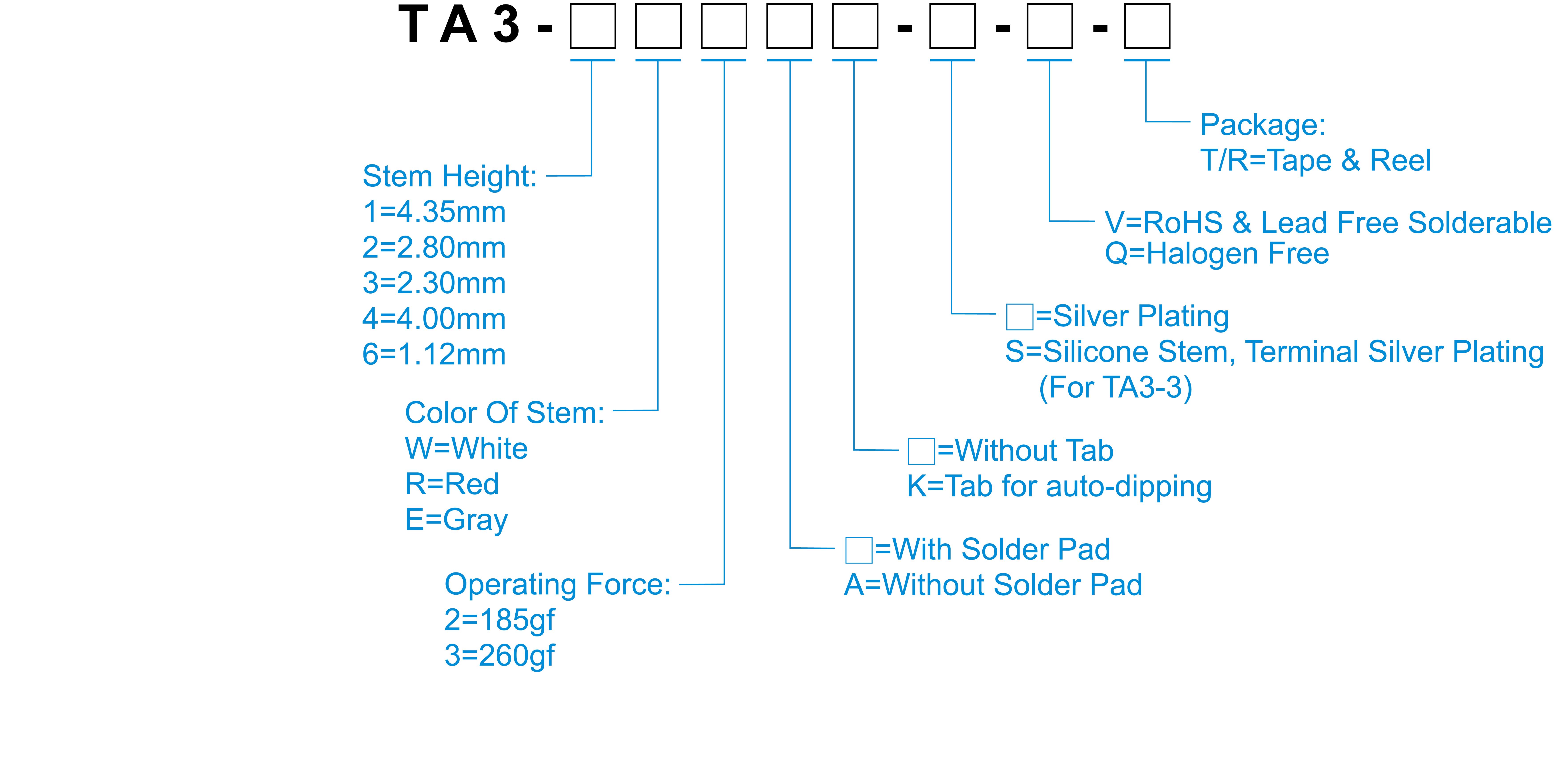

How to Order

Specification

Contact Rating 50mA, 12V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 500V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 185±50gf，260±50gf
Travel 0.15mm
Operating Life 200,000 cycles
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

TA3

Download Directory
料號 Operating Direction H (mm) Force(gf) Stroke (mm) Life cycles Dustproof and Waterproof
TA3-1□2□□-□-□ Side Push 4.35 185 0.15 200000 -
TA3-1□3□□-□-□ Side Push 4.35 260 0.15 200000 -
TA3-2□2□□-□-□ Side Push 2.8 185 0.15 200000 -
TA3-2□3□□-□-□ Side Push 2.8 260 0.15 200000 -
TA3-3□2□□-S-□ Side Push 2.3 185 0.15 200000 -
TA3-3□3□□-S-□ Side Push 2.3 260 0.15 200000 -
TA3-4□2□□-□-□ Side Push 4 185 0.15 200000 -
TA3-4□3□□-□-□ Side Push 4 260 0.15 200000 -
TA3-6□2□□-□-□ Side Push 1.12 185 0.15 200000 -
TA3-6□3□□-□-□ Side Push 1.12 260 0.15 200000 -
