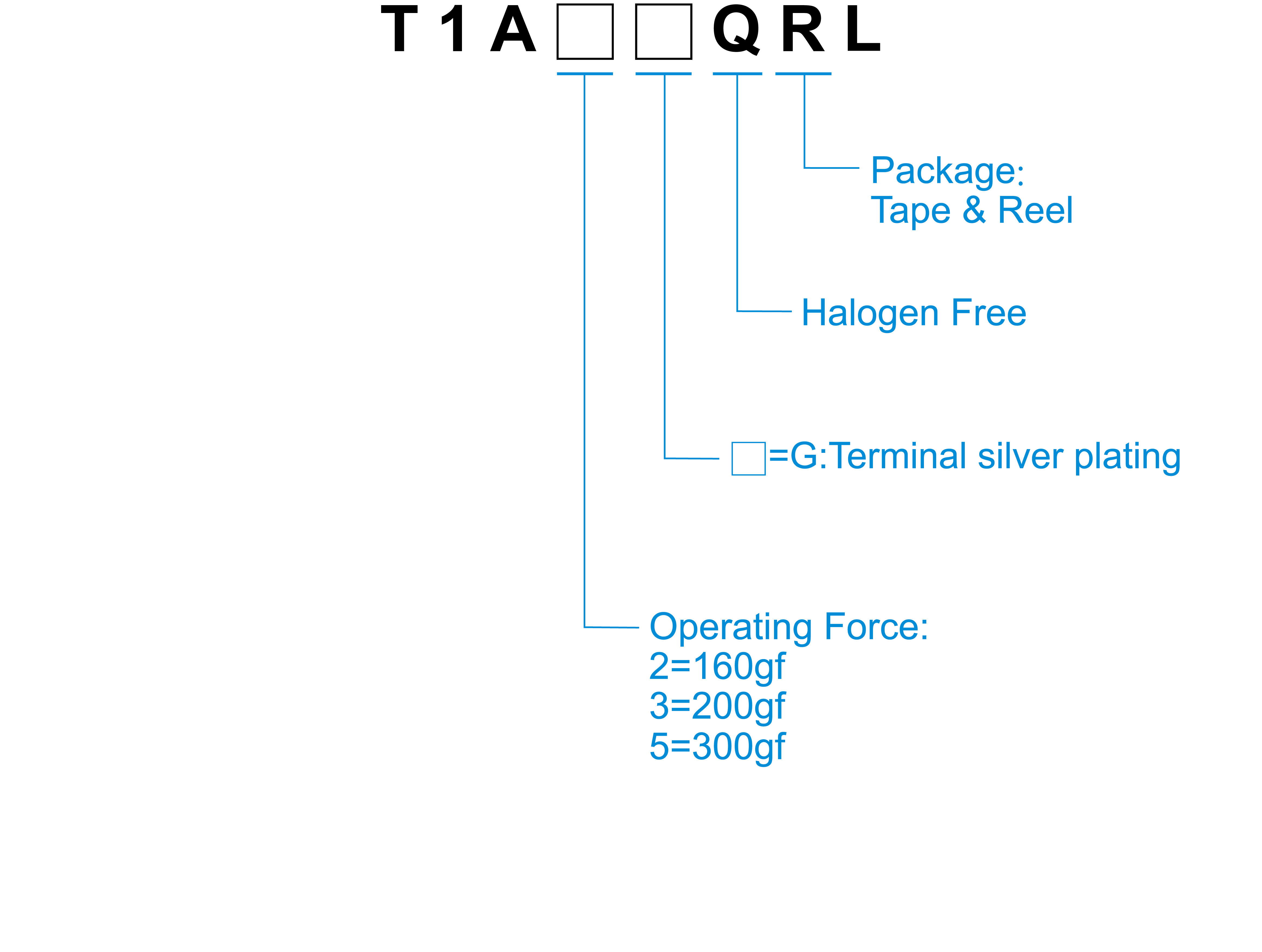

How to Order
Specification
| Contact Rating | 10μA, 2V DC to 20mA, 15V DC |
|---|---|
| Contact Resistance | 500 mΩ Max. |
| Insulation Resistance | 50mΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf, 200±50gf, 300±70gf |
| Travel | 0.15±0.10mm |
| Operating Life | 500,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| T1A2GQ | Vertical Push | 0.6 | 160 | 0.15 | 500000 | ● |
| T1A3GQ | Vertical Push | 0.6 | 200 | 0.15 | 500000 | ● |
| T1A5GQ | Vertical Push | 0.6 | 300 | 0.15 | 500000 | ● |
