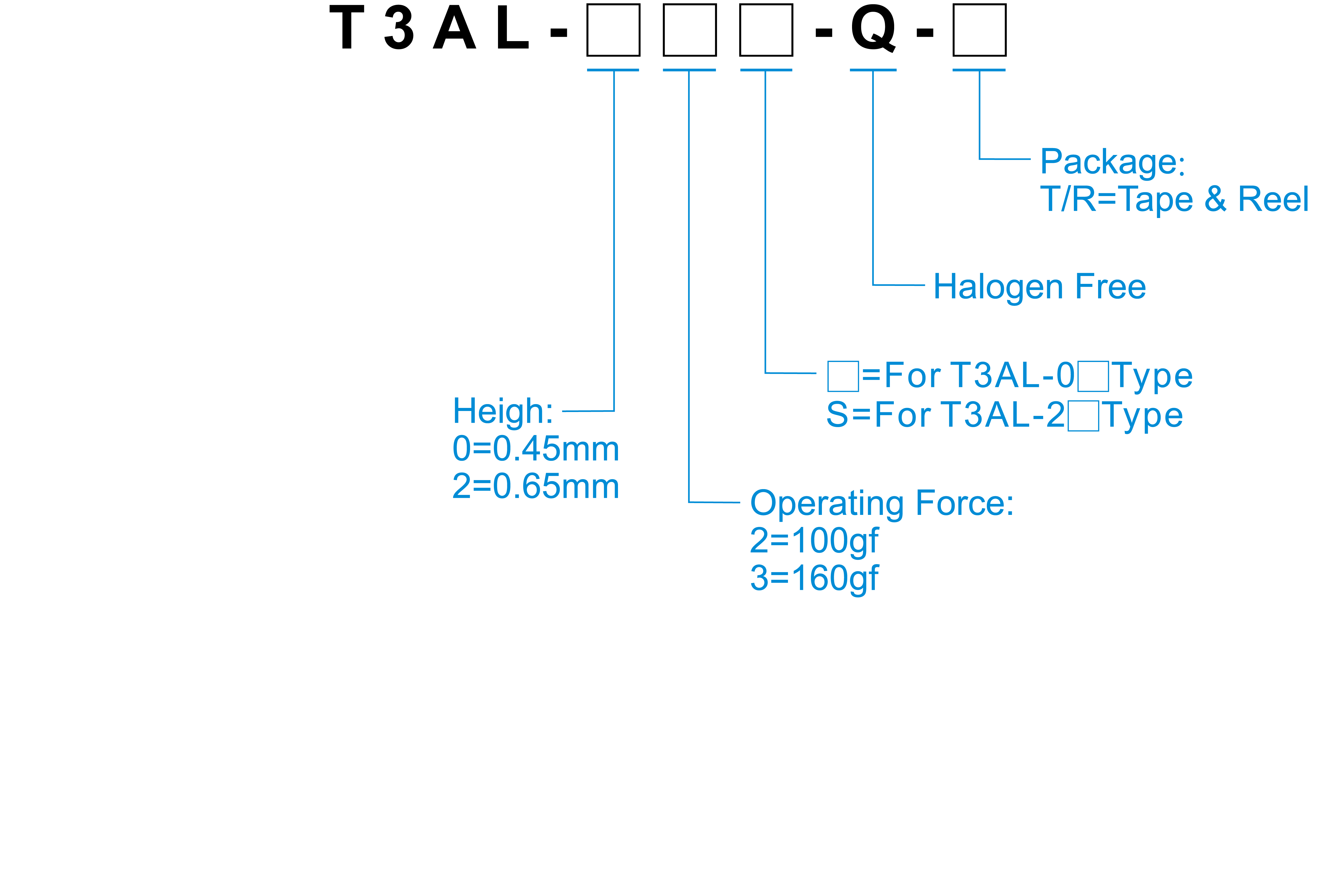

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 500 mΩ Max. |
| Insulation Resistance | 500MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 100±50gf, 160±50gf |
| Travel | 0.15mm |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
T3AL
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| T3AL-02-Q | Vertical Push | 0.45 | 100 | 0.15 | 100000 | - |
| T3AL-03-Q | Vertical Push | 0.45 | 160 | 0.15 | 100000 | - |
| T3AL-22□-Q | Vertical Push | 0.65 | 100 | 0.15 | 100000 | - |
| T3AL-23□-Q | Vertical Push | 0.65 | 160 | 0.15 | 100000 | - |
