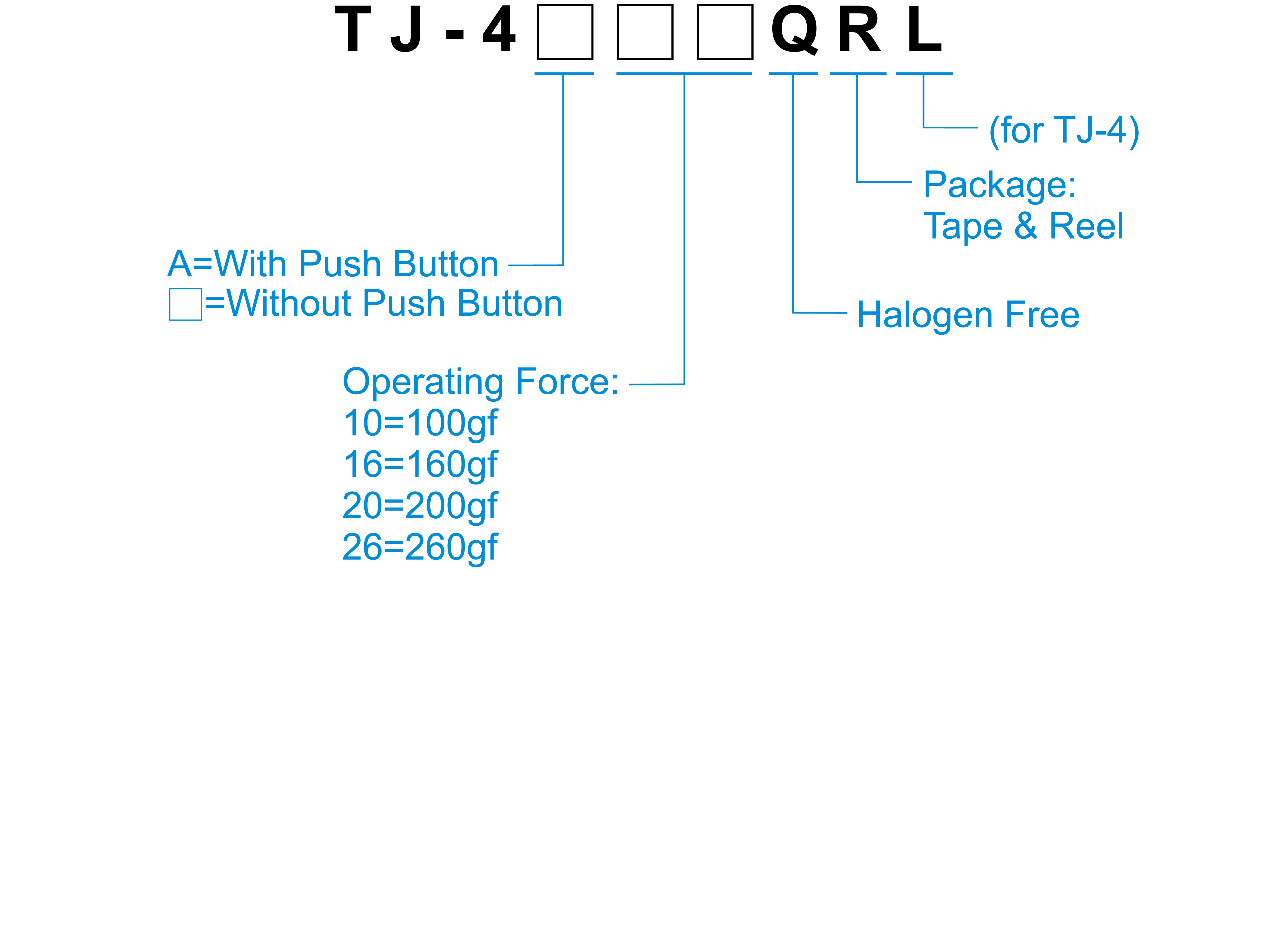

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 300V AC / 1 minute |
| Operating Force | 100±50gf / 160±50gf / 200±50gf 260±50gf |
| Travel | 0.2mm |
| Operating Life | 500,000 cycles for 260 / 200gf 1,000,000 cycles for 160 / 100gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
TJ-4
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| TJ-410Q | Vertical Push | 0.55 | 100 | 0.2 | 1000000 | - |
| TJ-416Q | Vertical Push | 0.55 | 160 | 0.2 | 1000000 | - |
| TJ-420Q | Vertical Push | 0.55 | 200 | 0.2 | 500000 | - |
| TJ-426Q | Vertical Push | 0.55 | 260 | 0.2 | 500000 | - |
| TJ-4A10Q | Vertical Push | 1.05 | 100 | 0.2 | 1000000 | - |
| TJ-4A16Q | Vertical Push | 1.05 | 160 | 0.2 | 1000000 | - |
| TJ-4A20Q | Vertical Push | 1.05 | 200 | 0.2 | 500000 | - |
| TJ-4A26Q | Vertical Push | 1.05 | 260 | 0.2 | 500000 | - |
