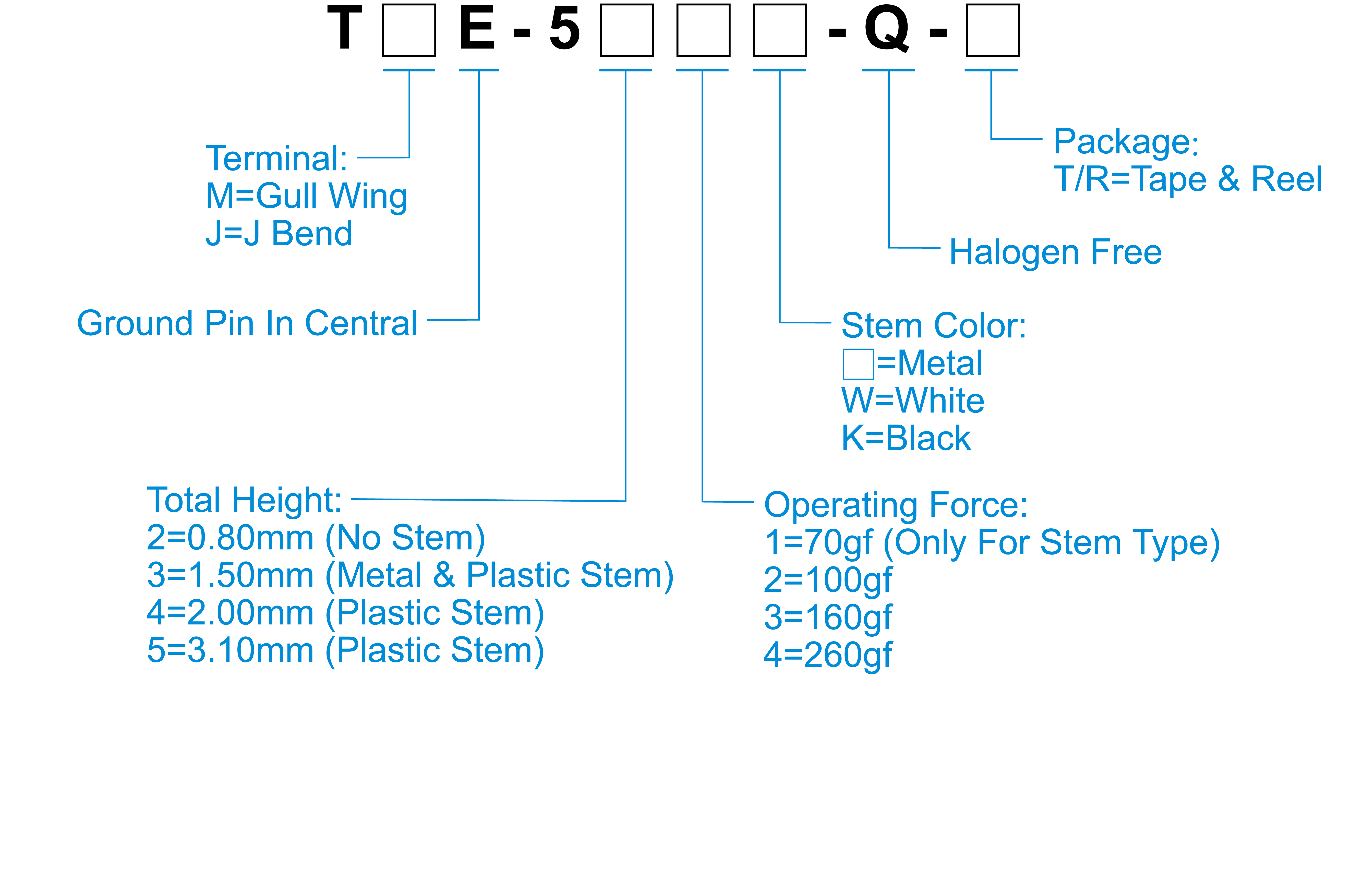

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 70±50gf, , 100±50gf, 160±50gf, 260±50gf |
| Travel | 0.25mm |
| Operating Life | 200,000 cycles for 260gf 1,000,000 cycles for 160/100/70gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
T( )E-5
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| TME-522-Q | Vertical Push | 0.8 | 100 | 0.25 | 1000000 | |
| TME-523-Q | Vertical Push | 0.8 | 160 | 0.25 | 1000000 | |
| TME-524-Q | Vertical Push | 0.8 | 260 | 0.25 | 1000000 | |
| TME-531-Q | Vertical Push | 0.8 | 70 | 0.25 | 1000000 | |
| TME-532-Q | Vertical Push | 0.8 | 100 | 0.25 | 1000000 | |
| TME-533-Q | Vertical Push | 0.8 | 160 | 0.25 | 1000000 | |
| TME-534-Q | Vertical Push | 0.8 | 260 | 0.25 | 1000000 | |
| TME-541-Q | Vertical Push | 0.8 | 70 | 0.25 | 1000000 | |
| TME-542-Q | Vertical Push | 0.8 | 100 | 0.25 | 1000000 | |
| TME-543-Q | Vertical Push | 0.8 | 160 | 0.25 | 1000000 |
