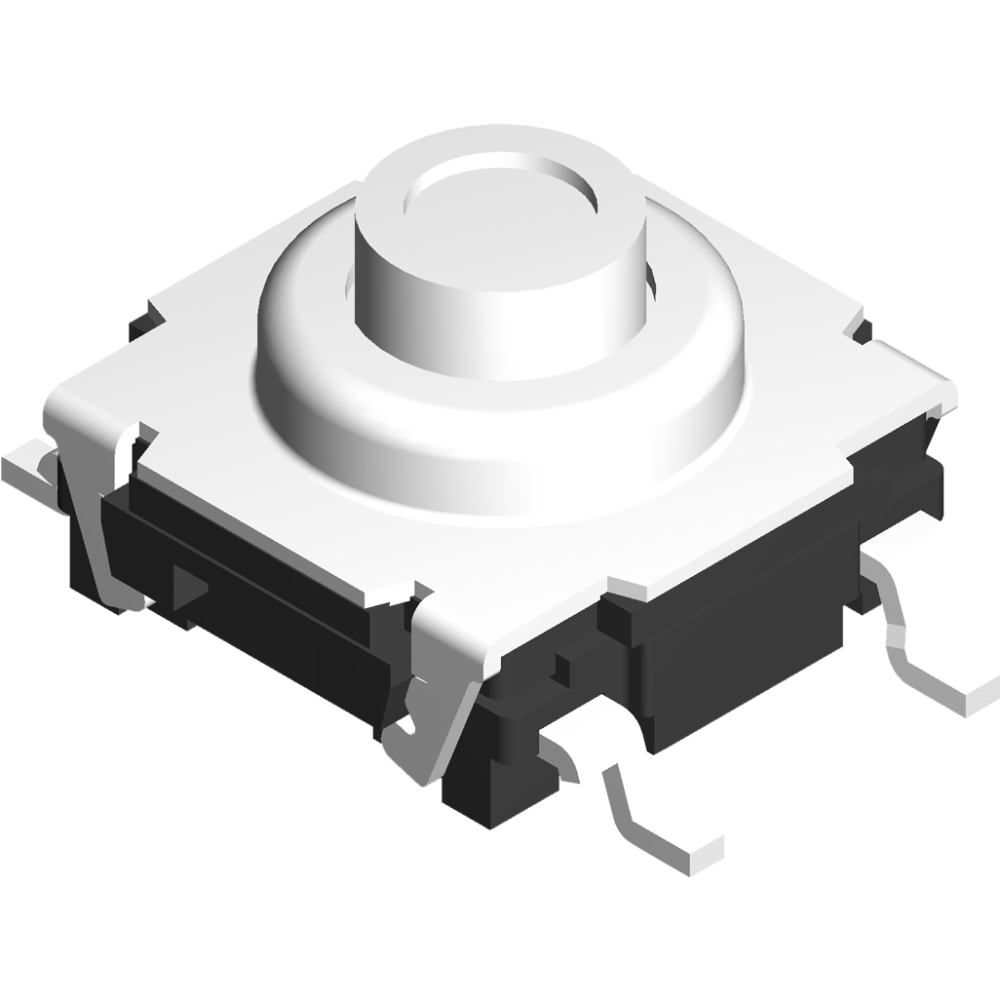

T6H

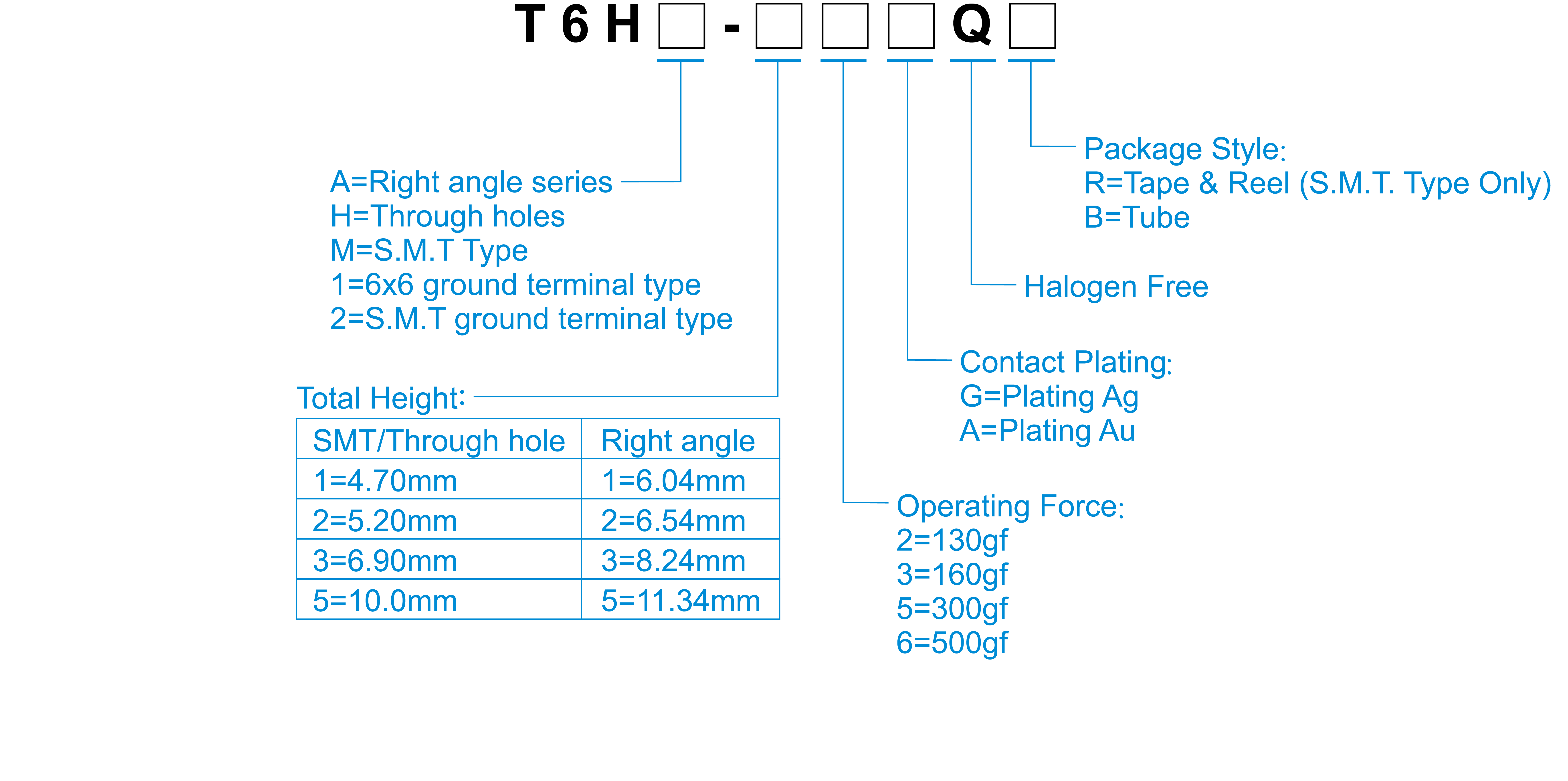

How to Order

Specification

Contact Rating 50mA, 12V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 100V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 130±50gf/160±50gf 300±50gf/500±100gf
Travel 0.5mm
Operating Life 200,000 cycles for 500gf 500,000 cycles for 300gf 1,000,000 cycles for 160/130gf
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

T6H

Download Directory
料號 Operating Direction H (mm) Force(gf) Stroke (mm) Life cycles Dustproof and Waterproof
T6HA-12GQ Side Push 6.04 130 0.5 1000000
T6HA-13GQ Side Push 6.04 160 0.5 1000000
T6HA-15GQ Side Push 6.04 300 0.5 1000000
T6HA-16GQ Side Push 6.04 500 0.5 1000000
T6HA-22GQ Side Push 6.54 130 0.5 1000000
T6HA-23GQ Side Push 6.54 160 0.5 1000000
T6HA-25GQ Side Push 6.54 300 0.5 1000000
T6HA-26GQ Side Push 6.54 500 0.5 1000000
T6HA-32GQ Side Push 8.24 130 0.5 3000000
T6HA-33GQ Side Push 8.24 160 0.5 3000000
