TA(C)(2)-3

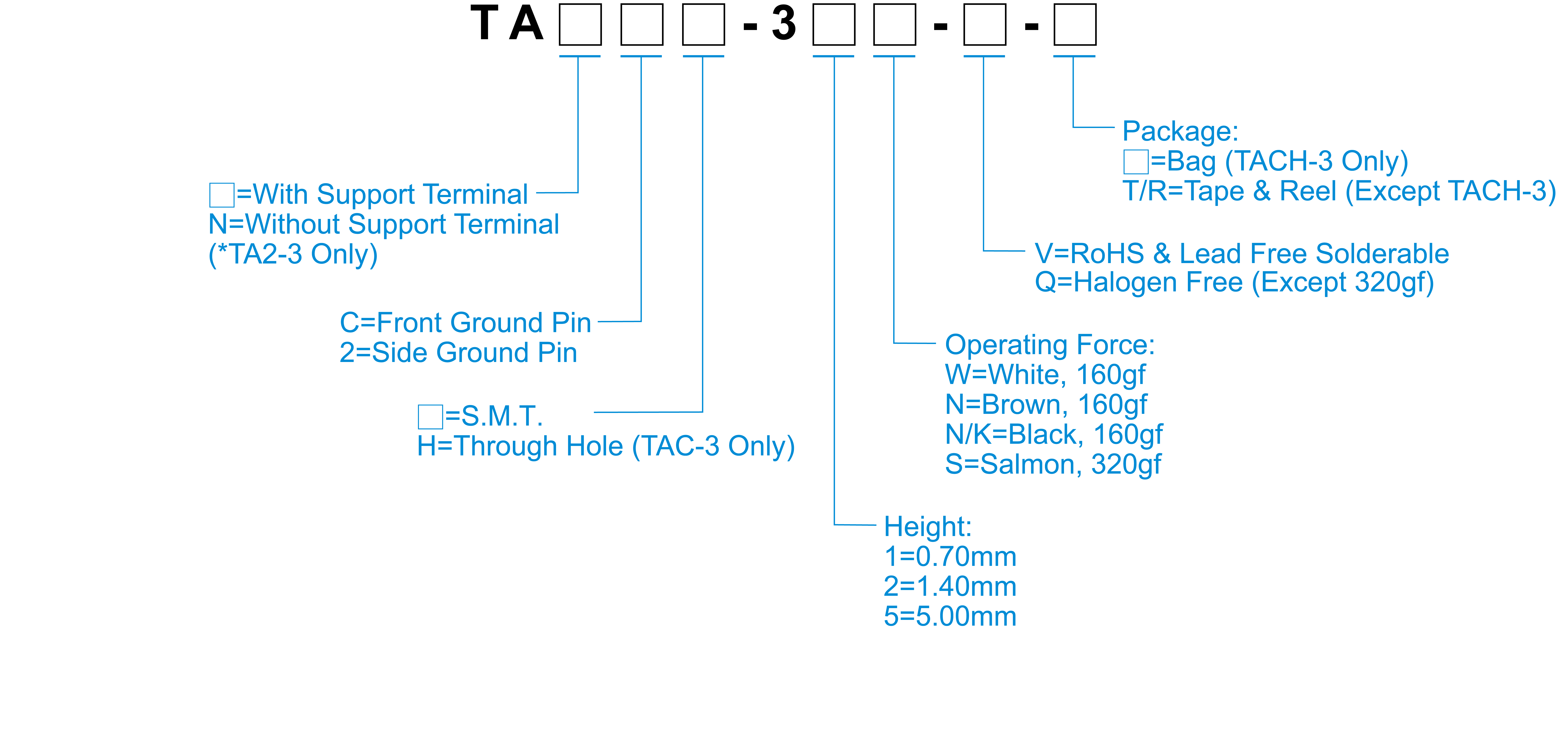

How to Order

Specification

Contact Rating 50mA, 12V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 500V DC
Dielectric Strength 250V AC / 1 minute
Operating Force TAC□-3： 160±50gf/260±50gf TA2-3： 160±50gf,White(W) 160±50gf,Brown(N) 320±50gf,Salmon(S)
Travel 0.25mm
Operating Life 50,000 cycles
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

TA(C)(2)-3

Download Directory
料號 Operating Direction H (mm) Force(gf) Stroke (mm) Life cycles Dustproof and Waterproof
TAC□-31W-□ Side Push 0.7 160 0.25 50000
TAC□-31N-□ Side Push 0.7 160 0.25 50000
TAC□-31N/K-□ Side Push 0.7 160 0.25 50000
TAC□-31R-□ Side Push 0.7 260 0.25 50000
TAC□-31S-V Side Push 0.7 320 0.25 50000
TAC□-32W-□ Side Push 1.4 160 0.25 50000
TAC□-32N-□ Side Push 1.4 160 0.25 50000
TAC□-31N/K-□ Side Push 1.4 160 0.25 50000
TAC□-32R-□ Side Push 1.4 260 0.25 50000
TAC□-32S-V Side Push 1.4 320 0.25 50000
