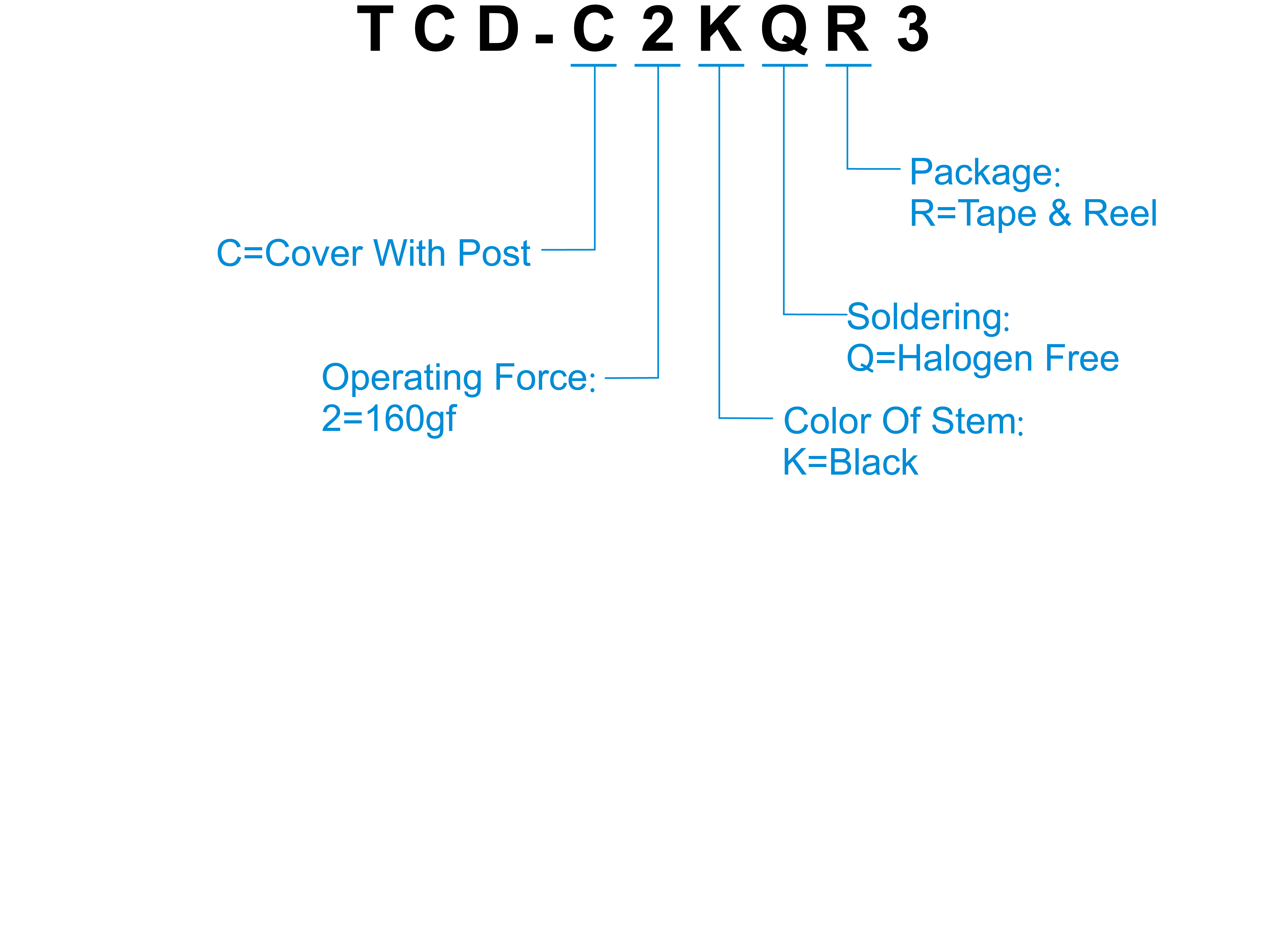

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf |
| Travel | 0.2mm |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| TCD-C2KQ | Side Push | 1.7 | 160 | 0.2 | 100000 | ● |
