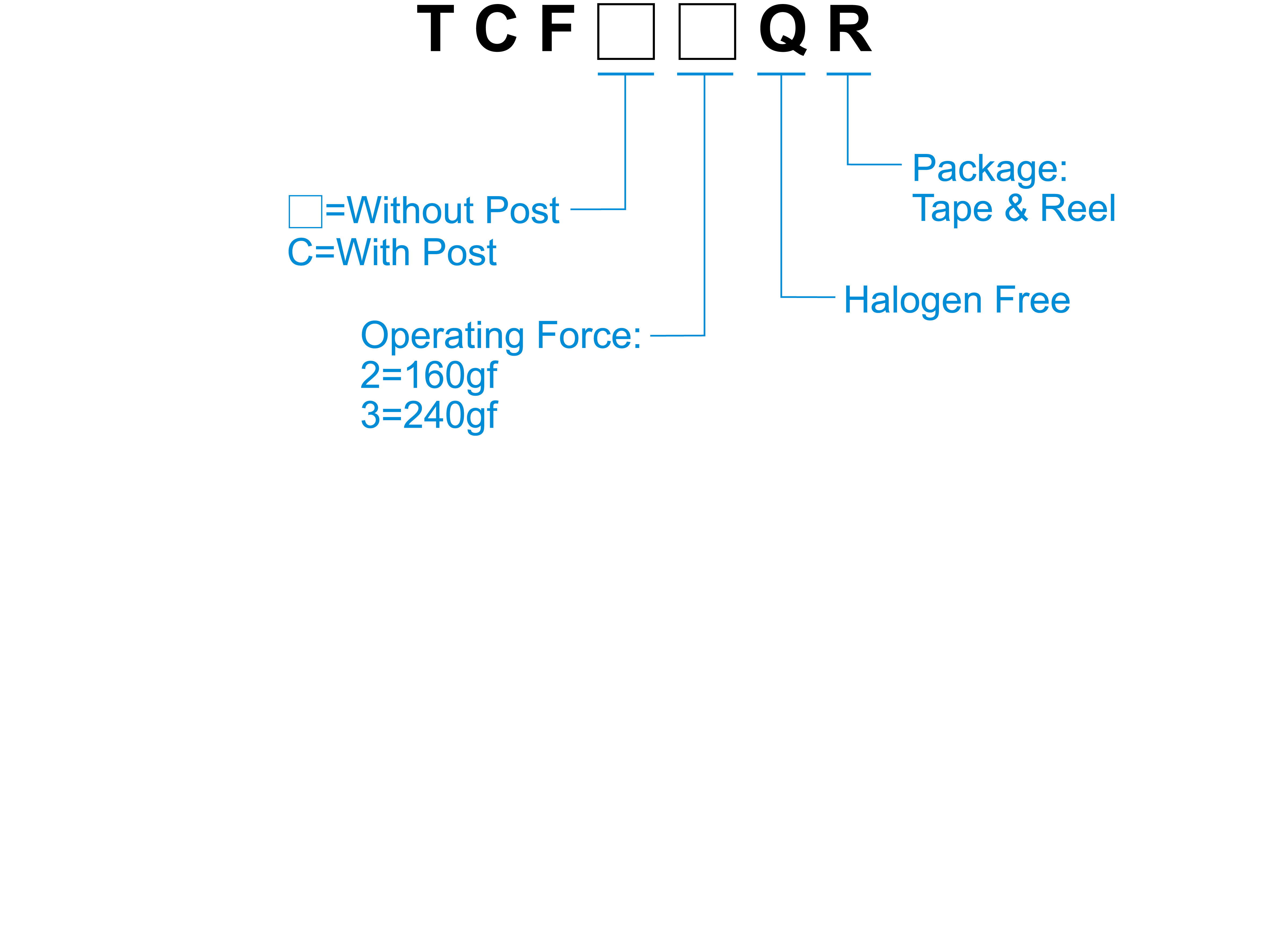

How to Order
Specification
| Contact Rating | 10uA,2V DC to 20mA, 15V DC |
|---|---|
| Contact Resistance | 1000mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC/1 minute |
| Operating Force | 160±50gf/240±70gf |
| Travel | 0.15mm |
| Operating Life | 200,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| TCF□2Q | Side Push | 2.6 | 160 | 0.15 | 200000 | |
| TCF□3Q | Side Push | 2.6 | 240 | 0.15 | 200000 |
