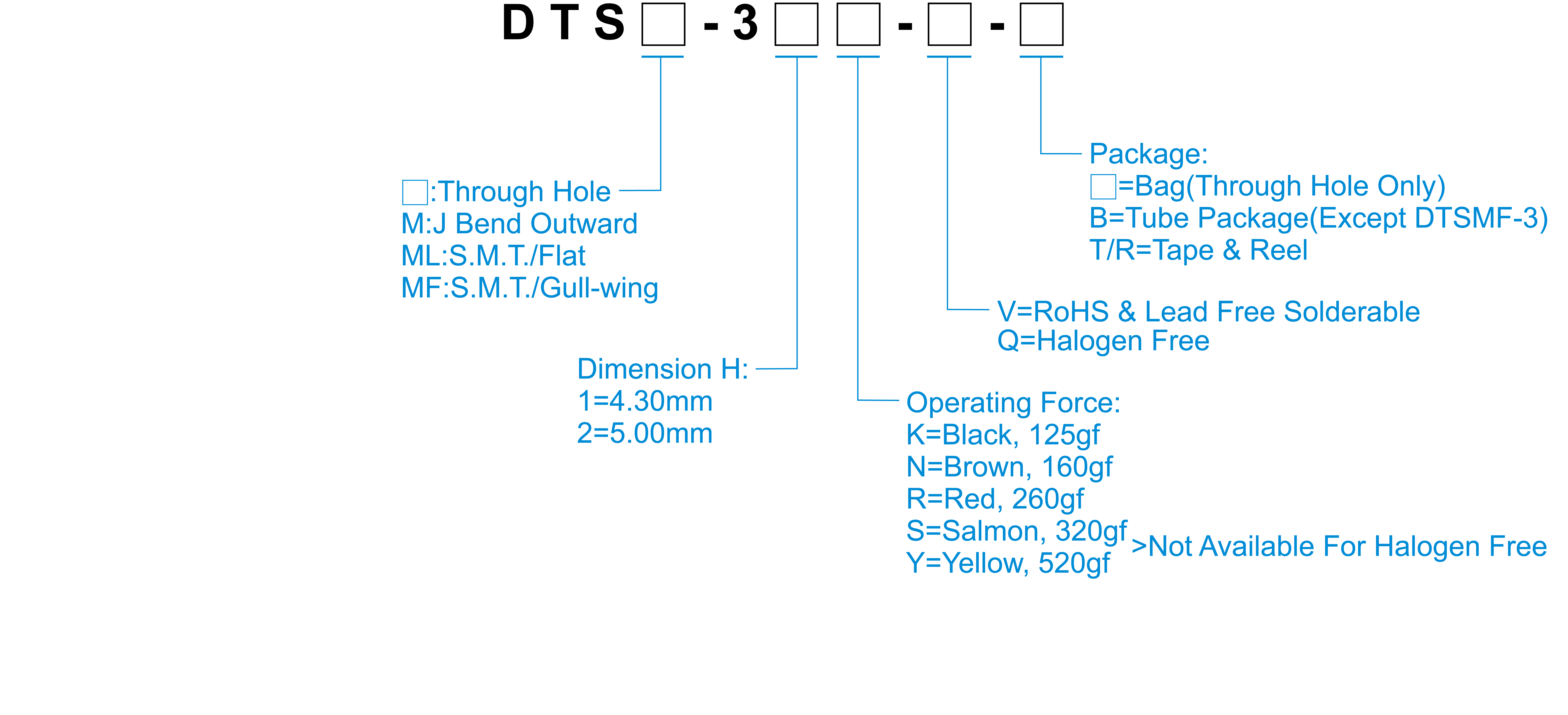

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC/1 minute |
| Operating Force | 125±50gf, Black(K) 160±50gf, Brown(N) 260±50gf, Red(R) 320±80gf, Salmon(S) 520±130gf, Yellow(Y) |
| Travel | 0.25mm |
| Operating Life | 30,000 cycles for 520/320/260gf 100,000 cycles for 160/125gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
DTS(M)-3
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| DTS□-31K-□ | Vertical Push | 4.3 | 125 | 0.25 | 50000 | |
| DTS□-31N-□ | Vertical Push | 4.3 | 160 | 0.25 | 50000 | |
| DTS□-31R-□ | Vertical Push | 4.3 | 260 | 0.25 | 30000 | |
| DTS□-31S-V | Vertical Push | 4.3 | 320 | 0.25 | 30000 | |
| DTS□-31Y-V | Vertical Push | 4.3 | 520 | 0.25 | 30000 | |
| DTS□-32K-□ | Vertical Push | 5 | 125 | 0.25 | 50000 | |
| DTS□-32N-□ | Vertical Push | 5 | 160 | 0.25 | 50000 | |
| DTS□-32R-□ | Vertical Push | 5 | 260 | 0.25 | 30000 | |
| DTS□-32S-V | Vertical Push | 5 | 320 | 0.25 | 30000 | |
| DTS□-32Y-V | Vertical Push | 5 | 520 | 0.25 | 30000 |
