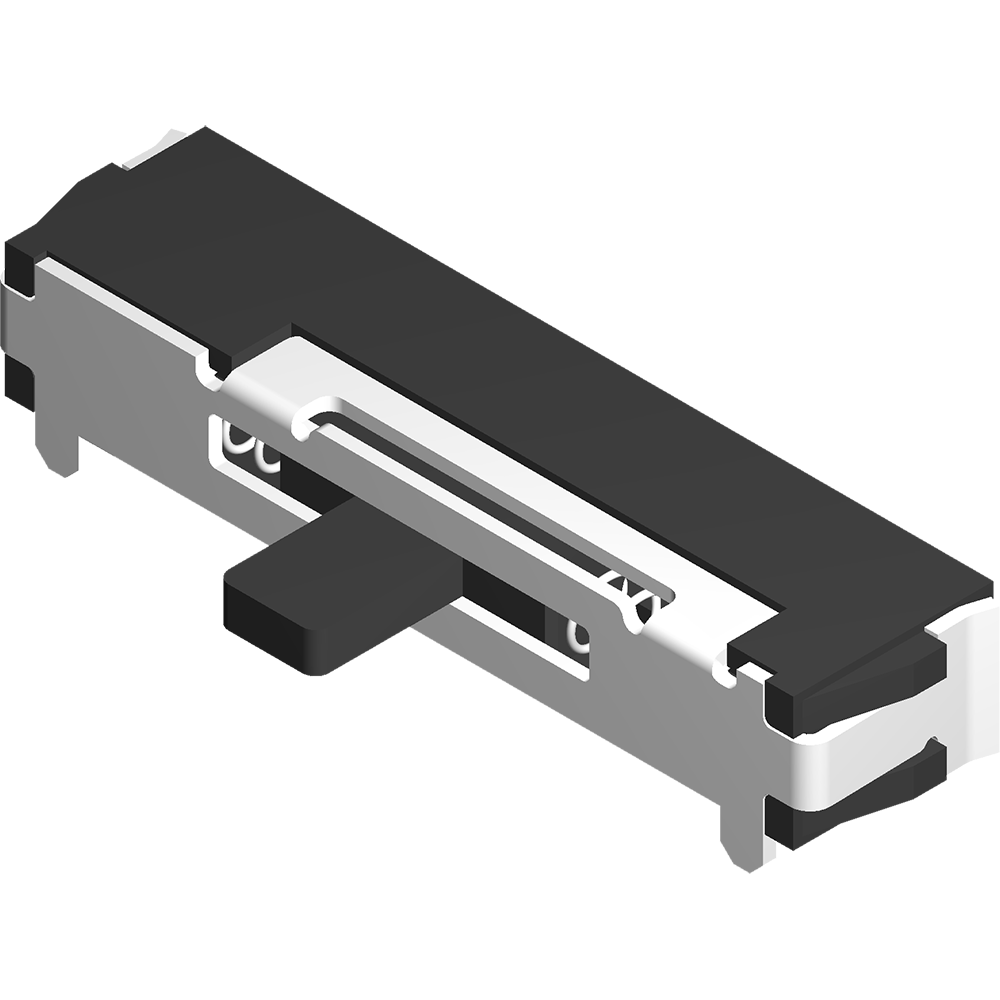

SS4

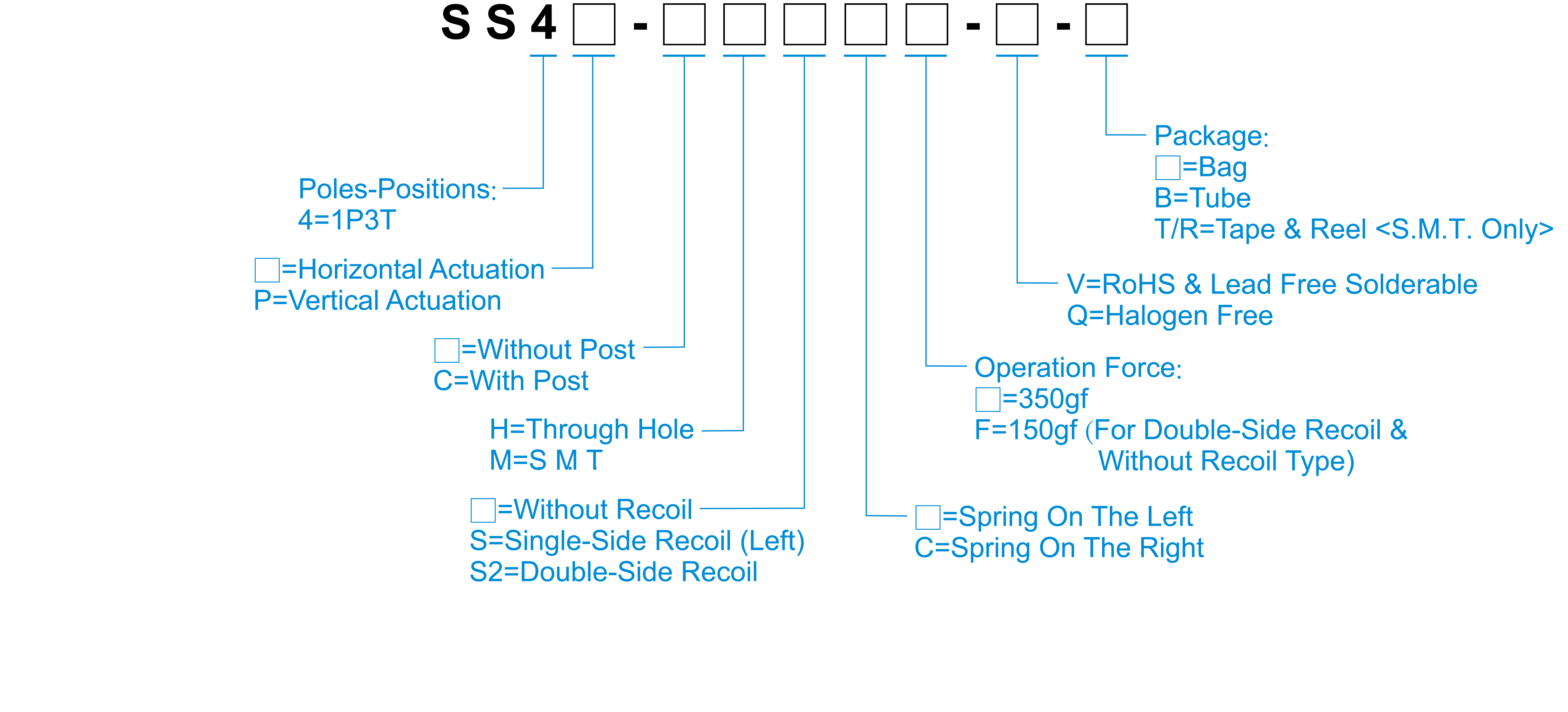

How to Order

Specification

Contact Rating 25mA, 24V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 500V DC
Dielectric Strength 500V AC / 1 minute
Operating Force 100gf Min./350gf Max.(Detent Type) 150±100gf(Recoil Type)
Travel 2mm
Operating Life 10,000 cycles
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

SS4

下載目錄
料號 觸點形式 推鈕方向 Mount type 操作力(gf) 行程(mm)
SS4-□H□-□ 1P3T Side DIP 350 2
SS4P-□H□-□ 1P3T Top DIP 350 2
SS4-□H□F-□ 1P3T Side DIP 150 2
SS4P-□H□F-□ 1P3T Top DIP 150 2
SS4-□HS2□-□ 1P3T Side DIP 350 2
SS4P-□HS2□-□ 1P3T Top DIP 350 2
SS4-□HS2□F-□ 1P3T Side DIP 150 2
SS4P-□HS2□F-□ 1P3T Top DIP 150 2
SS4-□HS□-□ 1P3T Side DIP 350 2
SS4P-□HS2□-□ 1P3T Top DIP 350 2
