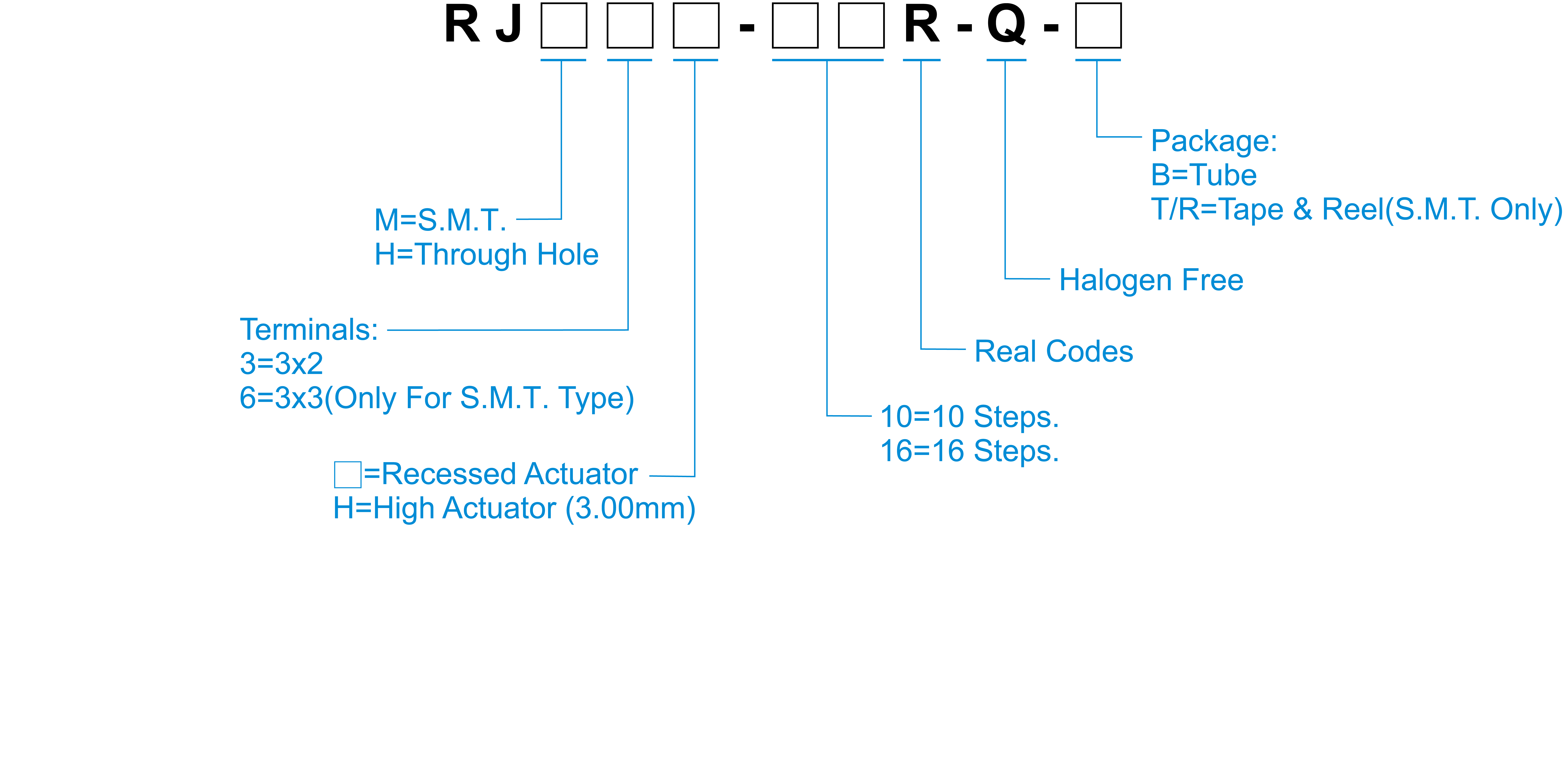

How to Order
Specification
| Contact Rating | 25mA, 24V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 200gf-cm Max. |
| Operating Life | 20,000 steps |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
RJ
下載目錄| 料號 | Mount type | 腳位 | 段落 | 推鈕形式 | 操作力(gf) |
| RJM3-10R-Q | SMT | 3x2 | 10 | Flat-Head | 200 |
| RJM3-16R-Q | SMT | 3x2 | 16 | Flat-Head | 200 |
| RJM3H-10R-Q | SMT | 3x2 | 10 | Flat-Head | 200 |
| RJM3H-16R-Q | SMT | 3x2 | 16 | Flat-Head | 200 |
| RJM6-10R-Q | SMT | 3x3 | 10 | Flat-Head | 200 |
| RJM6-16R-Q | SMT | 3x3 | 16 | Flat-Head | 200 |
| RJM6H-10R-Q | SMT | 3x3 | 10 | Flat-Head | 200 |
| RJM6H-16R-Q | SMT | 3x3 | 16 | Flat-Head | 200 |
| RJH3-10R-Q | DIP | 3x2 | 10 | Flat-Head | 200 |
| RJH3-16R-Q | DIP | 3x2 | 16 | Flat-Head | 200 |
