R7

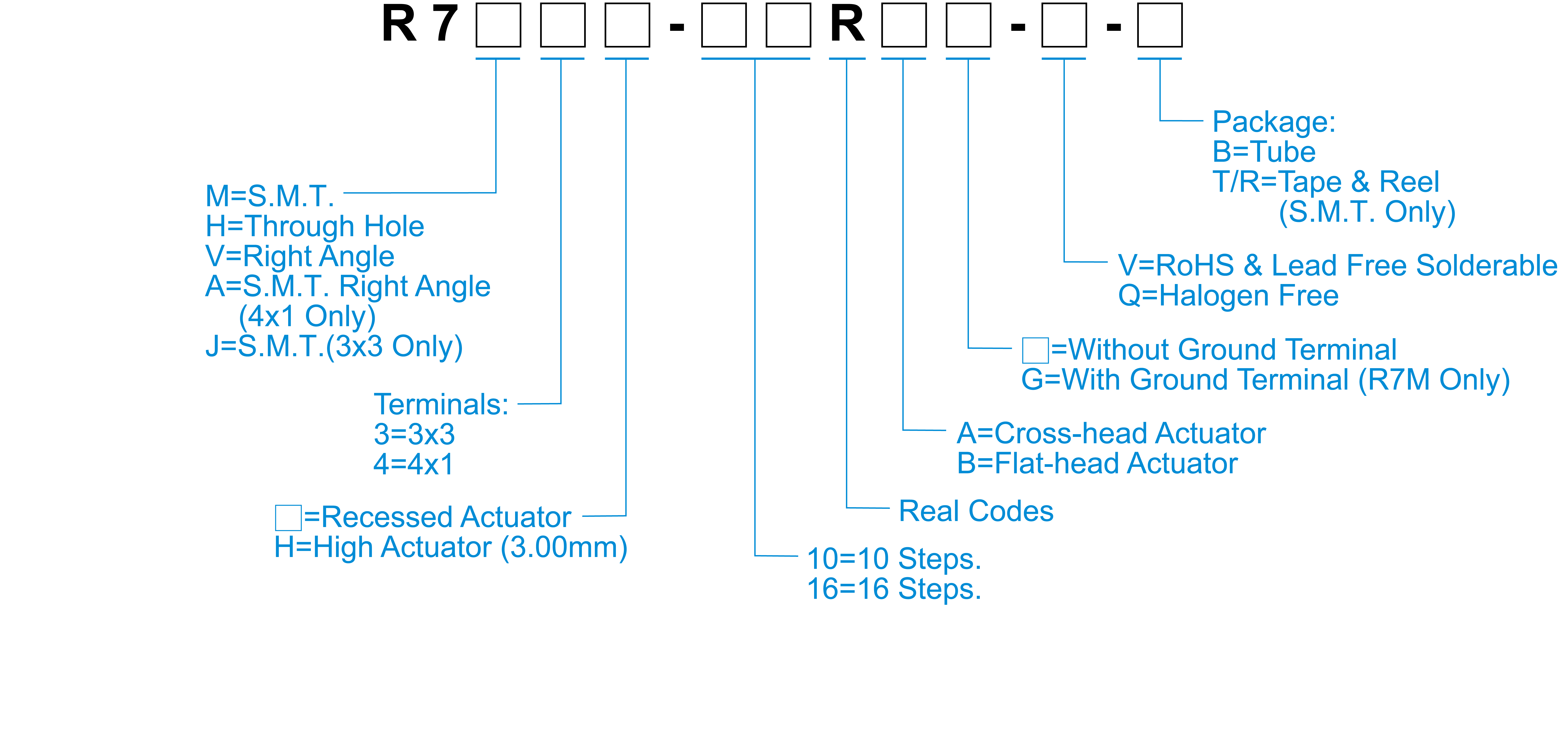

How to Order

Specification

Contact Rating 25mA, 24V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 100V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 200gf-cm Max.
Operating Life 10,000 steps
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

R7

下載目錄
料號 Mount type 腳位 段落 推鈕形式 操作力(gf)
R7M3□-10RA□-□ SMT 3x3 10 Cross-Head 200
R7M3□-10RA□-□ SMT 3x3 10 Cross-Head 200
R7M3□-10RA□-□ SMT 3x3 10 Cross-Head 200
R7M3□-10RA□-□ SMT 3x3 10 Cross-Head 200
R7M3□-10RB□-□ SMT 3x3 10 Flat-Head 200
R7M3□-10RB□-□ SMT 3x3 10 Flat-Head 200
R7M3□-10RB□-□ SMT 3x3 10 Flat-Head 200
R7M3□-10RB□-□ SMT 3x3 10 Flat-Head 200
R7M3□-16RA□-□ SMT 3x3 16 Cross-Head 200
R7M3□-16RA□-□ SMT 3x3 16 Cross-Head 200
