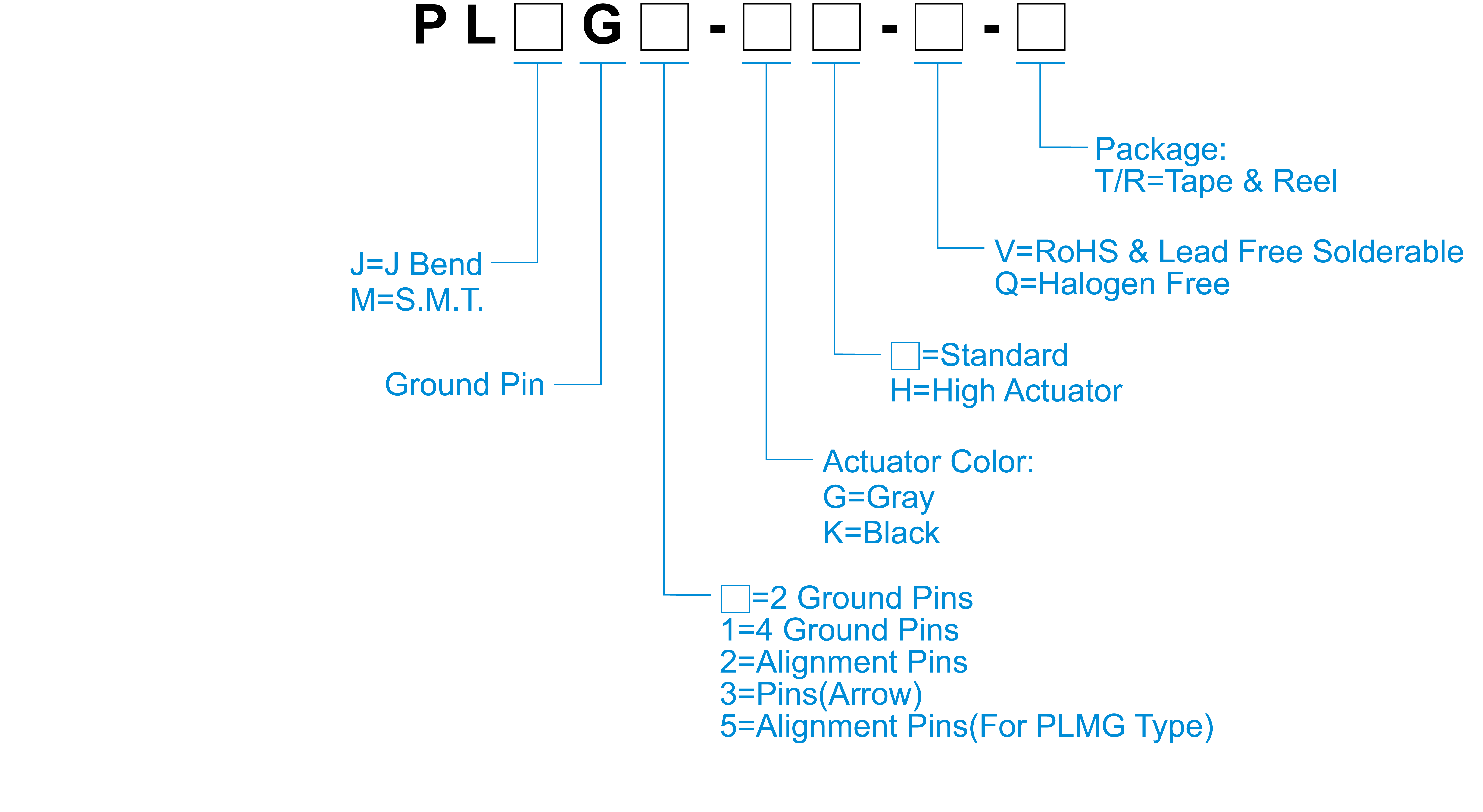

How to Order
Specification
| Contact Rating | 10mA, 5V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 40±20gf, Return actuator 150+100/-50gf, Center push |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
PL
下載目錄| 料號 | 操作方向 | Mount type | 操作力(gf) | 行程(mm) | 行程(度) |
| PLJG□-□□-□ | side Push | DIP | 40, Return actuator / 150, Center push | - | 20ﾟ |
| PLMG□-□□-□ | side Push | SMT | 40, Return actuator / 150, Center push | - | 20ﾟ |
